ASSEMBLY INSTRUCTIONS
For seat post and pedals

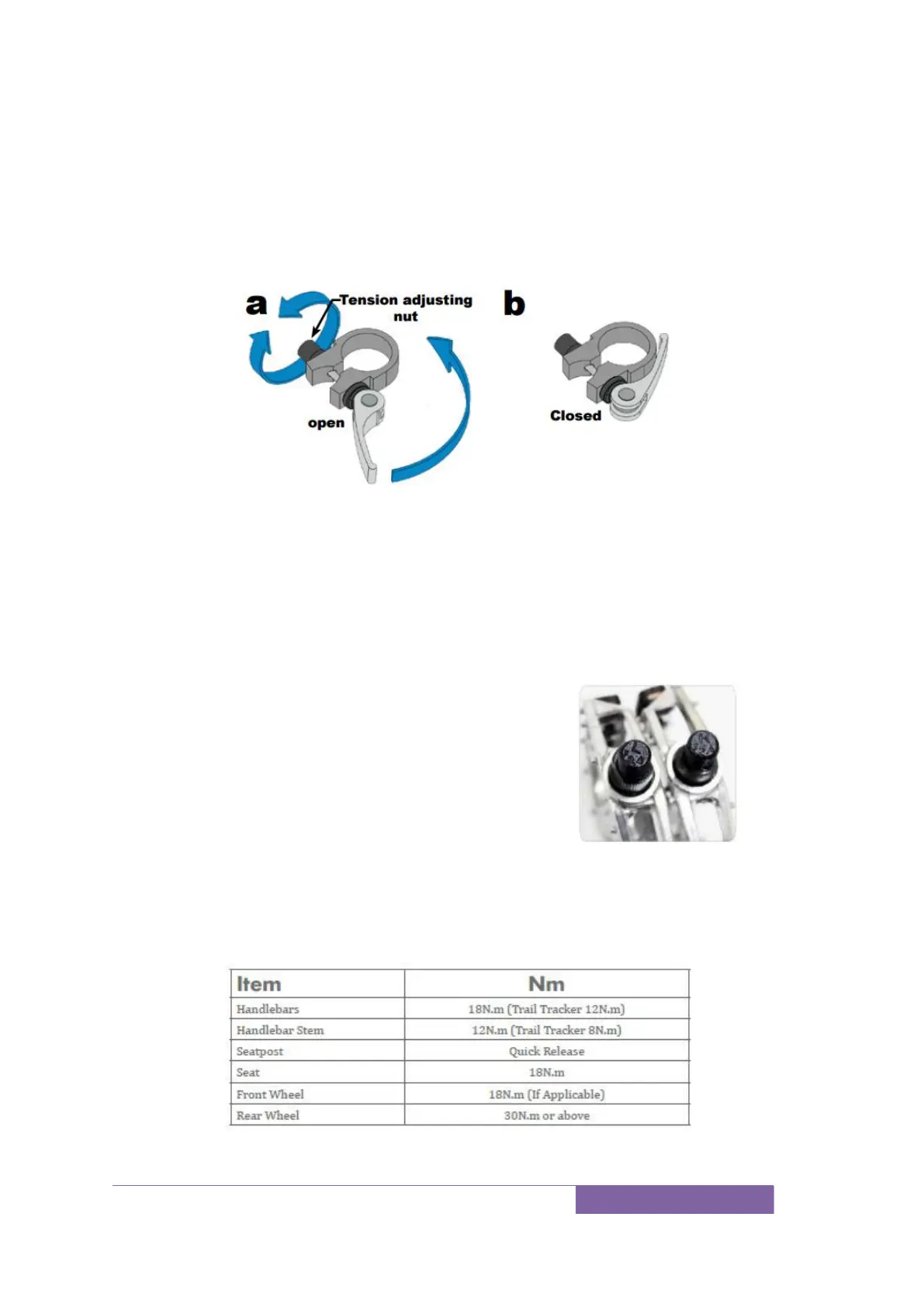

Make sure the seat is tight enough so that you can’t twist it out of alignment.
Pull the seat clamp handle away from the seat post and slide the seat up
or down to adjust it . Move the clamp handle inward toward the
seat post so it is held tight by the clamp.
If necessary, tighten the clamp by twisting the clamp handle clockwise while in the
unclamped position. Then, fold the handle in toward the seat post. This should
require a fair amount of force to ensure the seat post is held tight. If necessary, the
clamp can be further tightened with a 5 mm allen wrench while in the clamped
position. Make sure the seat is not set with the vertical maximum height marks above
the clamp.
Using the 15 mm wrench provided in the tool
kit, attach and tighten the pedals. PLEASE
NOTE – The pedals are marked “L” for Left
and “R” for Right. The left pedal is attached
by turning it counterclockwise and the right
pedal is tightened by turning it clockwise.
Make sure the pedals are tightly attached
to the crank arms to prevent stripping.
TORQUE SPECIFICATIONS
