Ecotric Vortex - 26 Fat bike

11
OPERATING PROCEDURES
For 26’ Fat bike
 To remove or insert the battery
The battery is fully inserted in the battery holder, to remove the battery, turn the key
from "off" position to "on" position( Figure 1), line up the grooves ( Figure 2)on the
top of the battery and remove or insert the battery.
 Power on/off switch ( Figure 3)to turn on/off the power. Switch to on position,
the power button light turns on also.
 Charging of battery
To charge the battery, plug the charger into an AC outlet. Then plug the charger plug
into the charging port on the bike(red arrow on Figure4).
.
For Folding Fatbike
 To remove or insert the battery
The battery is fully inserted in the battery holder, to remove the battery, turn the key
to the "Off" position and press the key to "UNLOCK" position, lift the battery vertical
from top side of the battery, and remove or insert the battery. The key switch must be
in the unlock position to slide the battery in and out.
 Power on/off switch ( See the photo on page 6 )to turn on/off the power. Switch
to "on" position.
 Charging of battery
To charge the battery, plug the charger into an AC outlet. Then plug the charger plug
into the charging port on the bike(See the photo on page 6).

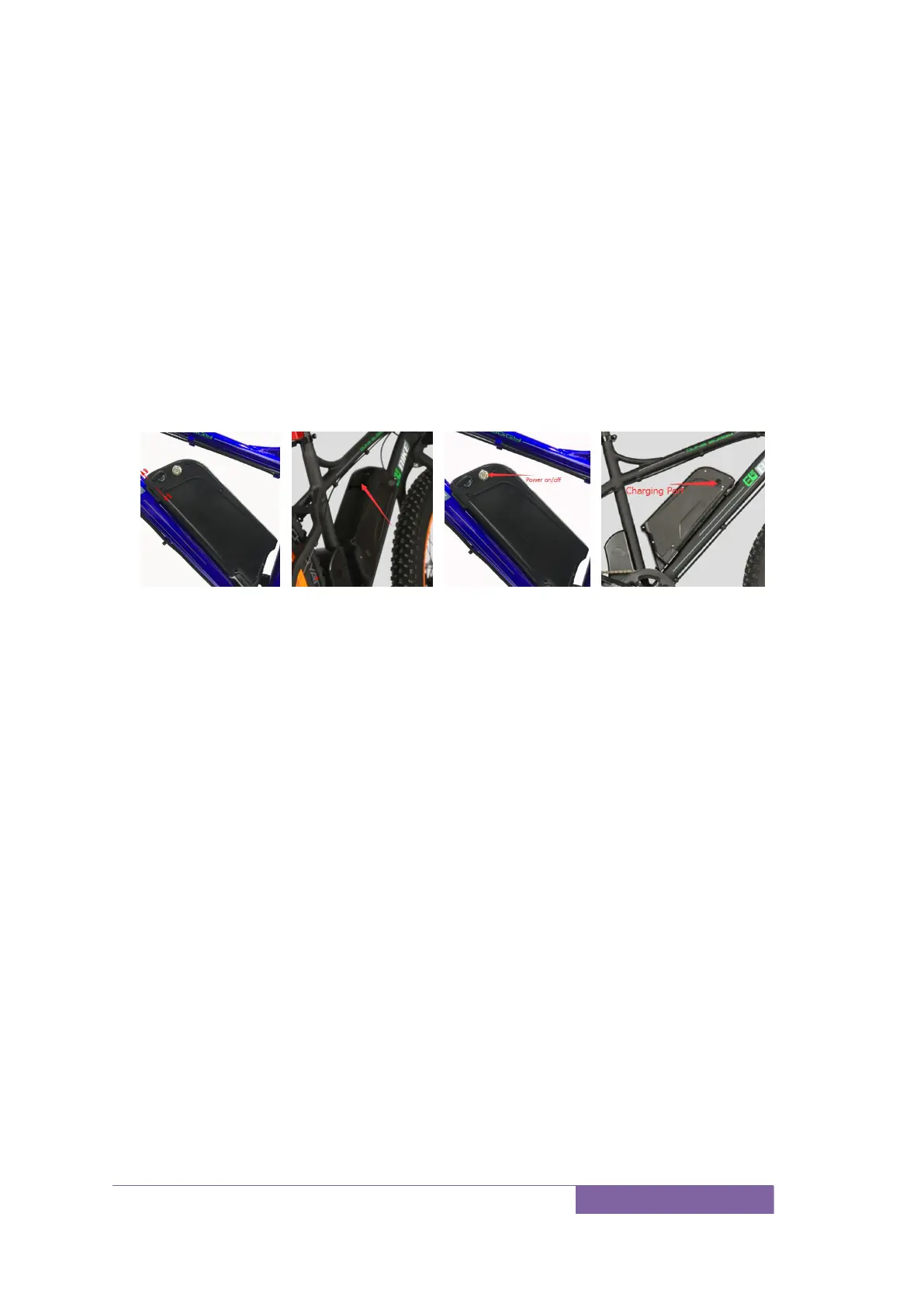

Figure 1
Figure 2
Figure 3
Figure 4
