Ecotric Vortex - OPERATING PROCEDURES; Flash

9
OPERATING PROCEDURES
For Flash

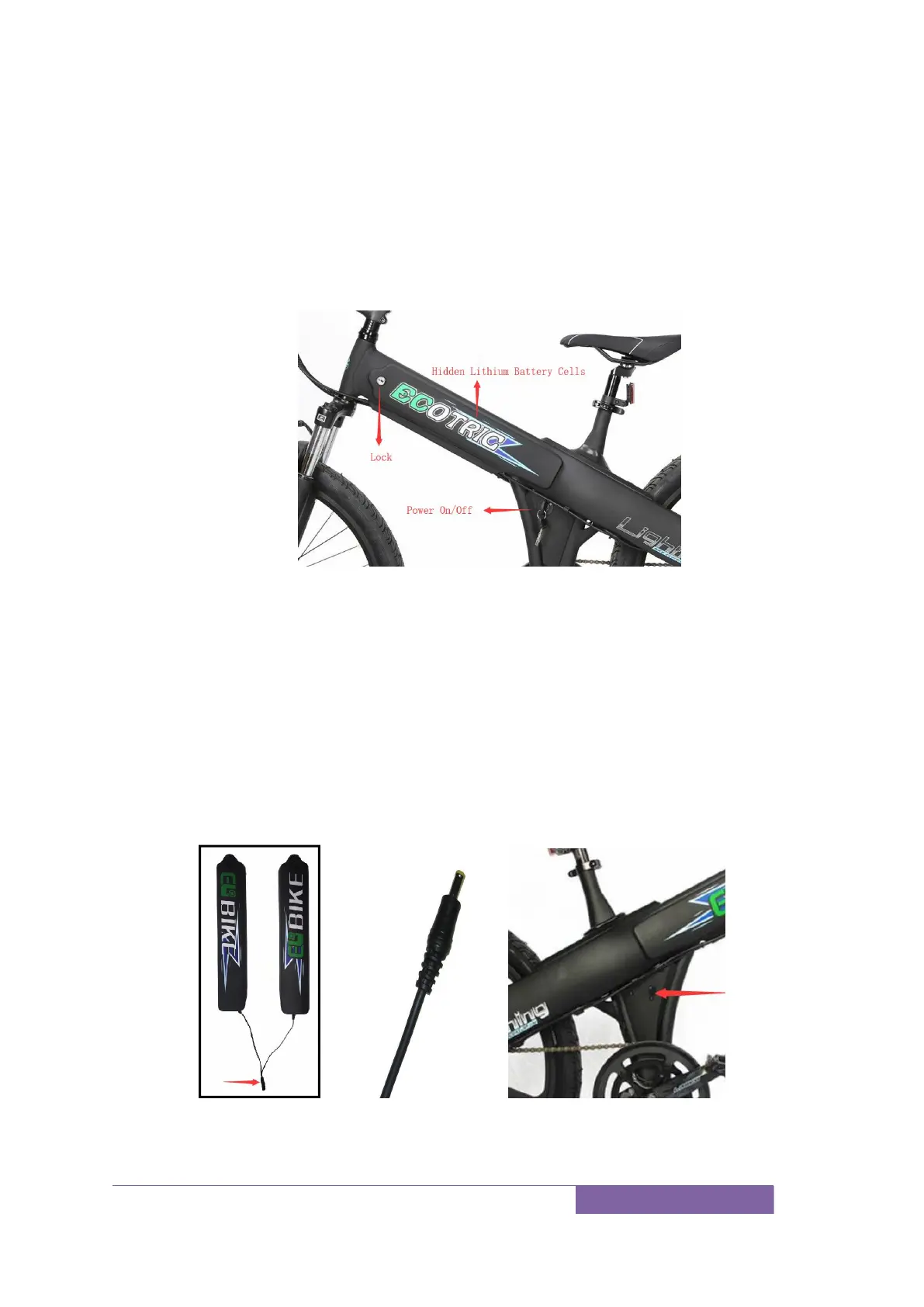

 Removable hidden lithium batteries on each side frame, already mounted with
locks (Figure 1). The battery must be locked when riding or it may fall out. The
keys for battery locks also operate power on/off switch which is located under
the seat post (Figure 1).
Figure 1
 Charging of battery
Included with your new bike is a lithium ion battery, along with a charger, which
plugs into a standard household electric receptacle. The battery may be charged while
on the bike (Figure 3) or removed (Figure 1) and charged at a location away from the
bike. The battery is easily removed by turning the key switch to the open/unlock
position.
To charge the battery, plug the charger into an AC outlet. The LED indication
light should be green showing the charger is working normally. Then plug the charger
plug (Figure 2) into the charging port on the bike (Figure 3) or removed batteries
(Figure 1) with a combination of cable divided into 2 cables.
Figure 1
Figure 2
Figure3
