EcoWater ESM11CE - Dimensions and Specifications; Wiring Schematic

3
ECOWATER
SYSTEMS

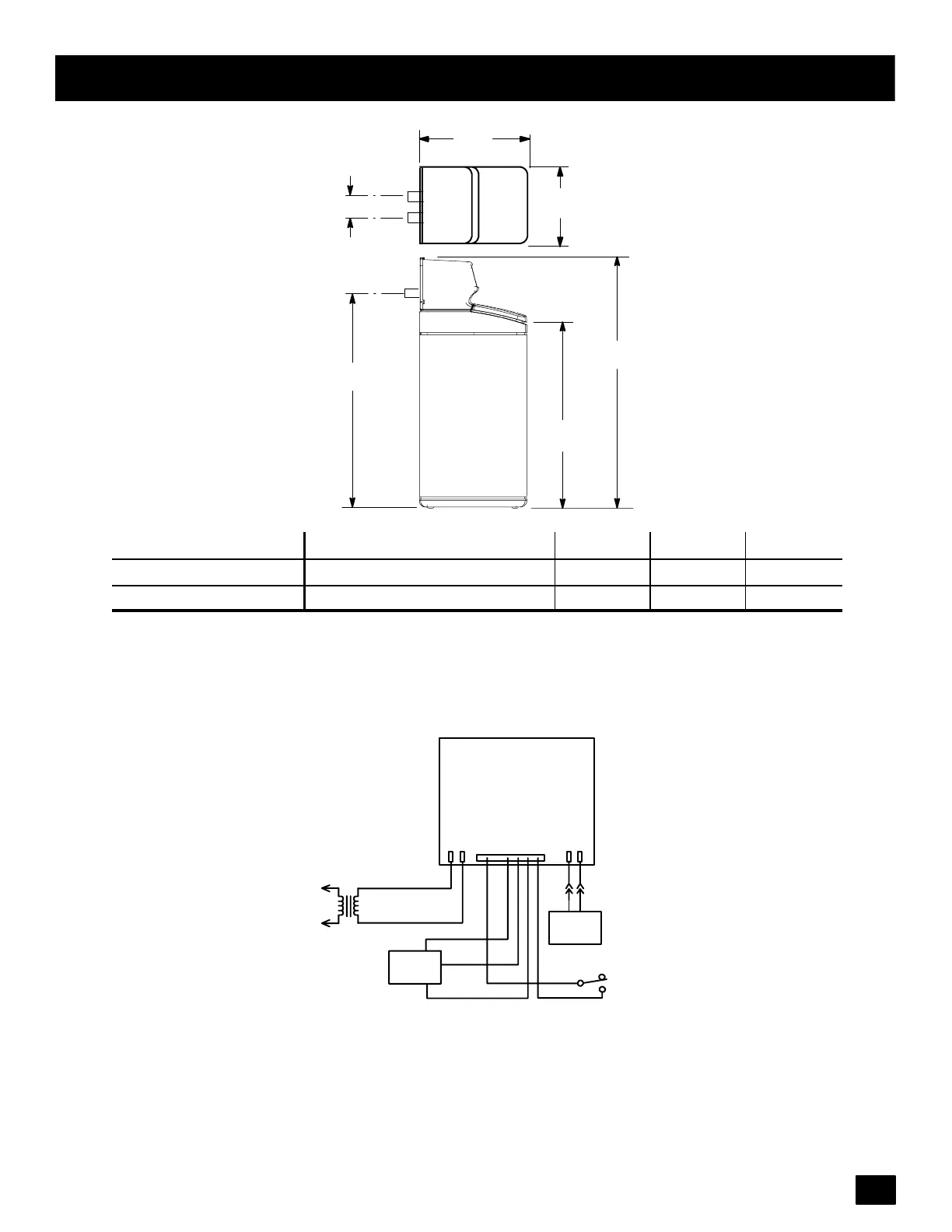

Dimensions / Specifications
IN
OUT
8.6 cm
B
C
A
I N --- O U T
32.4 cm
43.2
cm
MODEL NOMINAL RESIN TANK SIZE A B C
ESM11CE 8” DIA. X 19” 54 cm 41.4 cm 66.8 cm
ESM15CE 8” DIA. X 25” 70 cm 58.4 cm 83.8 cm
Wiring Schematic
24VAC
Transformer
NC
NO
Back of Timer
Green
Position Switch
M
24V
OUT
GND
+5
Turbine
Sensor
