ECOWATER
S Y S T E M S

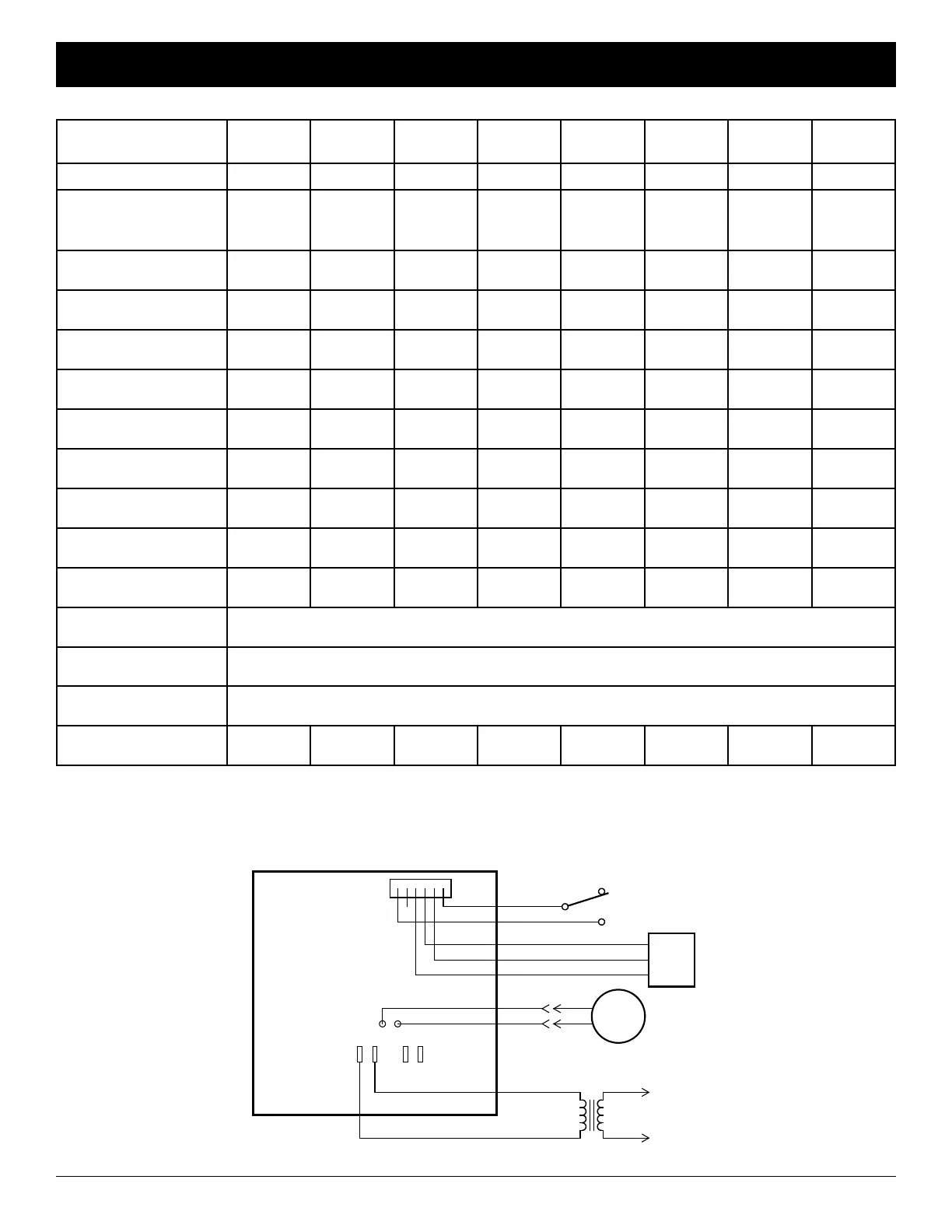

Specifications & Schematic
ESM9CE+ ERM10CE+ ESM11CE+ ESM15CE+ ESM18CE+ ERM20CE+ ESM25CE+ ESM42HTE+
Model Code E-9 ER 10 E 11 E 15 E-17 ER 20 E-25 E-42
Rated Softening Capacity
(mol @ kg Salt Dose)
1.9 @ 0.4
3.4 @ 0.9
4.4 @ 1.7
2.6 @ 0.4
4.0 @ 0.9
5.8 @ 1.6
3.0 @ 0.4
4.9 @ 0.9
6.5 @ 1.6
4.8 @ 0.7
8.0 @ 1.4
11.3 @ 3.8
4.9 @ 0.9
10.4 @ 2.7
12.3 @ 4.5
4.0 @ 0.6
11.3 @ 2.4
14.4 @ 4.0
7.4 @ 1.2
15.7 @ 3.9
18.8 @ 6.6
10.6 @ 1.5
28.0 @ 5.4
35.5 @ 9.4
Rated Efficiency (mol per
kg @ Min. Salt Dose)
4.75 6.32 7.13 7.04 5.71 6.67 6.02 7.27
Service Flow Rate (L/min.) 15.1 15.1 15.1 22.7 30.3 34.1 36.0 37.9
Pressure Drop at Service
Flow Rate (bar)
0.21 0.34 0.28 0.62 0.83 0.94 0.97 0.90
Intermittent Flow Rate
(L/min.) @ 1 bar
– – 32.9 31.8 34.4 36.5 37.9 41.6
Intermittent Flow Rate
(L/min.) @ 2 bar
– – – 47.3 53.8 55.5 56.8 67.0
Amount of High Capacity
Resin (Liters)
8.9 10.3 10.5 14.7 17.6 20.5 24.9 43.0
Water Supply Max. Hard -
ness (°f)
27.5 30.1 32.5 49.6 68.4 85.6 99.2 123.1
Water Supply Max. Hard -
ness (°dH)
15.4 16.9 18.2 27.8 38.3 48.1 55.6 69.0
Water Supply Max. Clear
Water Iron (ppm)
3 3 3 4 5 9 9 14
Min.-Max. Working
Pressure (bar)
1.4 - 8.6
Min.-Max. Operating
Temperature (°C)
4 - 49
Min. Water Supply Flow
Rate (L/min.)
11.4
Max. Flow Rate (L/min.)
to Drain during Recharge
7.6 7.6 7.6 7.6 7.6 8.3 8.3 7.6
WIRING SCHEMATIC
1
24VDC MOTOR
TRANSFORMER
24VAC
BACK OF FACEPLATE
CONTROL BOARD ON
SWITCH
POSITION
NO
+5
GND
OUT
TURBINE
SENSOR
Red
Black
Red
Black
White
Brown
C
Green
AUX OUT24V AC
230V
50 Hz
FIG. 143
