21

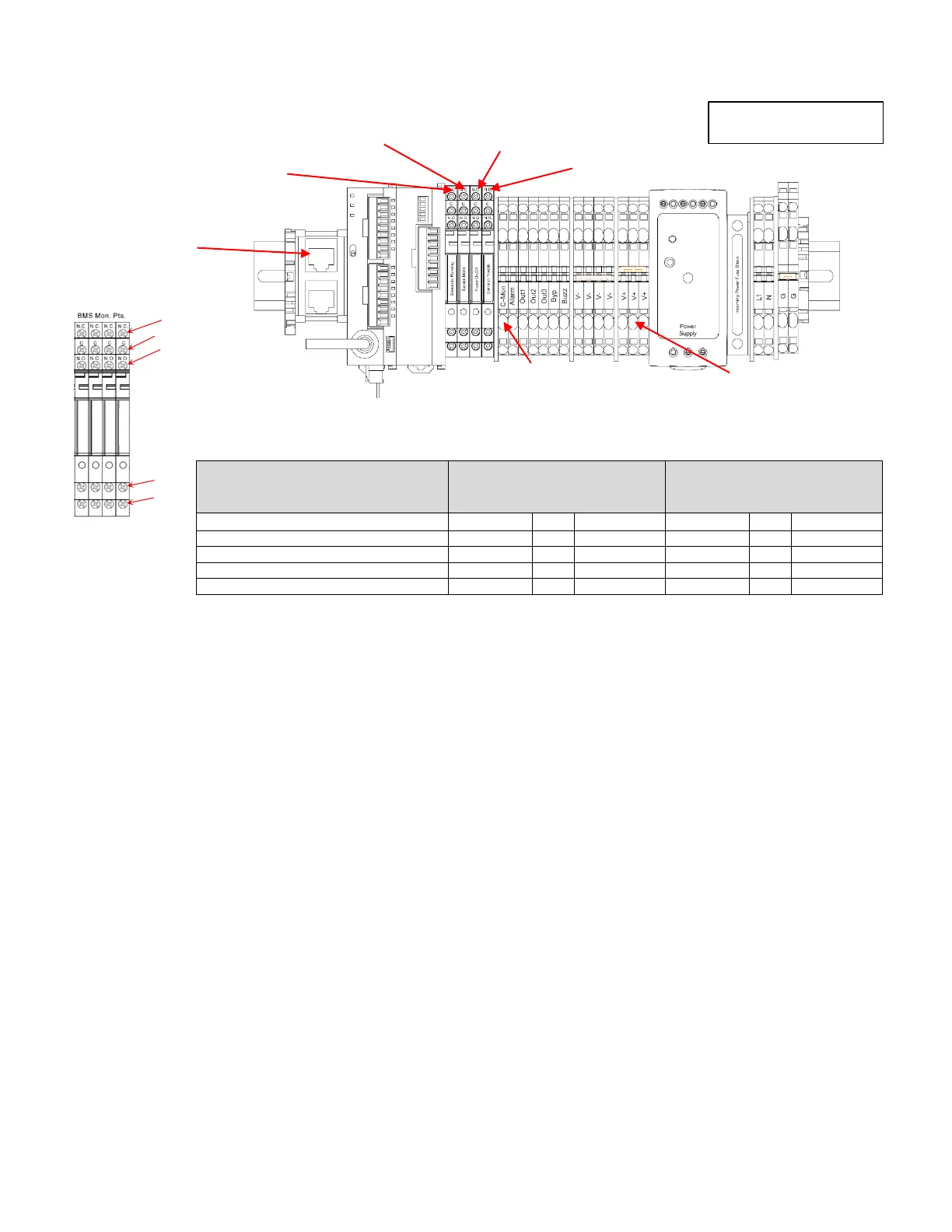

Description
Normally Open Contact
Connections
(Building Alarm System)
Normally Closed Contact
Connections
(Building Management System)
Relay
LED
Connections
Relay
LED
Connections
Nitrogen Generator Running Output (Running)
Energized
On
11 & 14
Energized
On
11 & 12
Bypass Alarm Monitoring Output
De-Energized
Off
11 & 14
De-Energized
Off
11 & 12
Nitrogen Generator Power Monitoring Output
Energized
On
11 & 12
Energized
On
11 & 14
Common Trouble Monitoring Output
De-Energized
Off
11 & 14
De-Energized
Off
11 & 12
Monitoring Relay Contact Rating
250 VAC/ 6 Amps
Ethernet Connection
Bypass Alarm Monitoring Output
(Normally De-Energized)
Nitrogen Generator Power Monitoring Output
(Normally Energized)
Common Trouble Output
(Normally De-Energized)
Nitrogen Generator Running Output
(Energized When Running)
Relay Contacts – De-Energized
NC (12)
COM (11)
NO (14)
Relay Coil
A1
A2
Common Trouble
Power On/Off
Bypass Mode
Generator Running
Connect Terminal 13NO
from Air Compressor
Connect Terminal 14NO
from Air Compressor
