FILTER REPLACEMENT
The nitrogen generators contain three (3) separate cartridge filters and a water separator. It is
recommended that each filter be replaced at a minimum as part of an annual preventative maintenance
program. ECS offers a replacement filter kit for each model. When maintained properly the nitrogen
separation membrane will have an expected service life of twenty (20) years.
ECS Recommends that all cartridge filters (Filters 1, 3 & 4) in the nitrogen generator be replaced when
replacing the filters.
Filter Replacement Kit Installation Instructions
Filter Kit: FKSA-FS
(Filter Replacement Kit for AG-6500/11000/18500/22500 Nitrogen Generator Cabinet)
Part Description
Location w/o Autodrain
Location with Autodrain
Qty.
5-Micron Coalescing Filter
Right Filter Housing
Center-Right Housing
1
Water Separator
Center-Right Housing
Right Filter Housing
1
1-Micron Coalescing Filter
Center-Left Filter Housing
Center-Left Filter Housing
1
.01-Micron Coalescing Filter
Left Filter Housing
Left Filter Housing
1
NOTE: Before beginning the filter replacement process, ensure all internal components are cool to the
touch. Components can be very hot after long run cycles and can present risk of injury.
Replacement Guide:

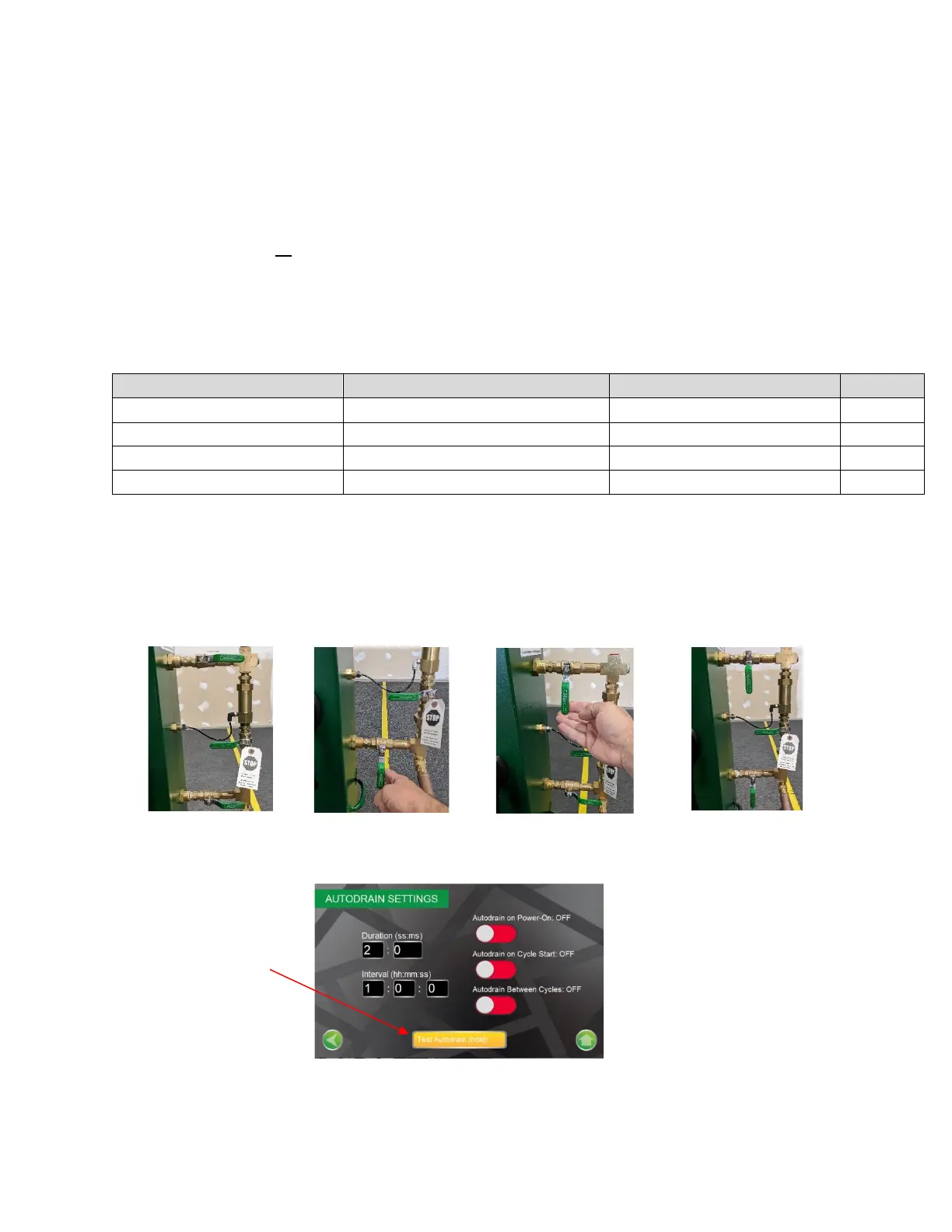

1. Isolate nitrogen generator by closing inlet and outlet valves.
2. Drain air pressure from unit by pressing and holding the Test Autodrain button on the Autodrain
Settings Screen on the HMI.
Press and Hold to
Depressurize Filter
Assembly.
