9
Installing the Motherboard
Checking Jumper Settings

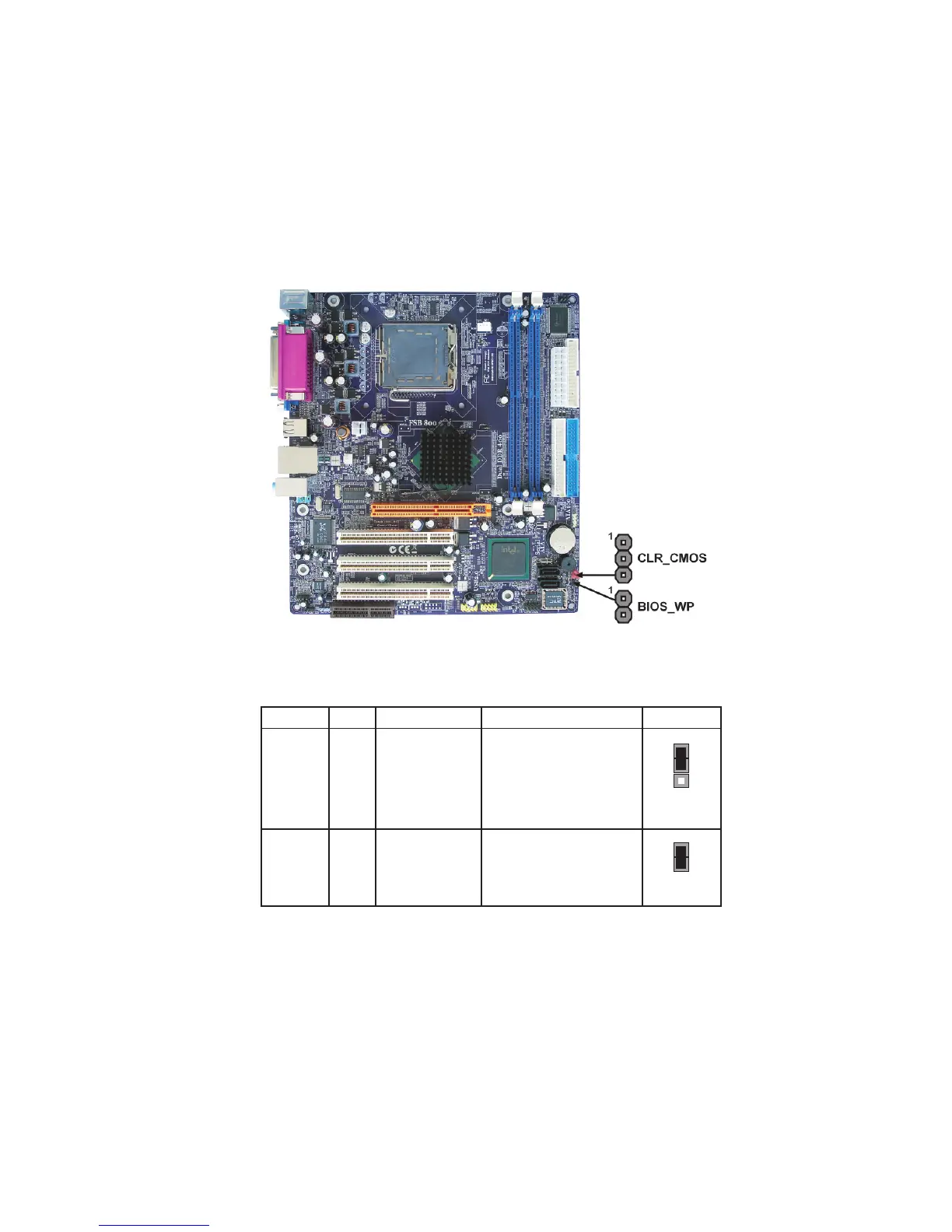

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
T
ype
Description
Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: NORMAL
2-3: CLEAR
OPEN: DISABLE
SHOR
T
: ENABLE
BIOS PROTECT
2-pin
BIOS_WP
Before clearing the CMOS,
make sure to turn off the sys-
tem.
Clear_CMOS
1
BIOS_WP
1
14
16
Table of Contents
Default Chapter
4
About the Manual
4
Canadian Department of Communications
4
Declaration of Conformity
4
Table of Contents
5
Chapter 1 Introducing the Motherboard
7
Introduction
7
Feature
8
Audio Codec
9
Motherboard Components
10
Chapter 2 Installing the Motherboard
13
Safety Precautions
13
Choosing a Computer Case
13
Installing the Motherboard in a Case
13
Checking Jumper Settings
14
Setting Jumpers
14
Checking Jumper Settings
15
Jumper Settings
15
Connecting Case Components
16
Front Panel Header
17
Hard Drive Activity LED
17
ATX 20-Pin Power Connector
17
Installing Hardware
18
Installing the Processor
18
Cpu Installation Procedure
19
Installing Memory Modules
20
Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive
22
Installing a Floppy Diskette Drive
24
Installing Add-On Cards
25
Connecting Optional Devices
27
Connecting I/O Devices
30
Chapter 3 Using BIOS
31
About the Setup Utility
31
The Standard Configuration
31
Entering the Setup Utility
31
Bios Navigation Keys
32
Updating the BIOS
33
Using BIOS
33
Standard CMOS Features
34
Advanced BIOS Features
36
Advanced Chipset Features
40
Integrated Peripherals
42
Superio Device
44
Power Management Setup
47
PNP/PCI Configurations
49
PC Health Status
50
Frequency Control
51
Load Fail-Safe Settings
52
Load Optimized Defaults
52
Set Supervisor/User Password
52
Save & Exit Setup
53
Exit Without Saving
53
Chapter 4 Using the Motherboard Software
55
About the Software CD-ROM
55
Auto-Installing under Windows 98/ME/2000/XP
55
Running Setup
56
Manual Installation
58
Utility Software Reference
58
AMI/AWARD Flash Utility
58
Winflash Utility
58
Multi-Language Translation
59
Onboard Lan
76
