Installing the Motherboard
Checking Jumper Settings

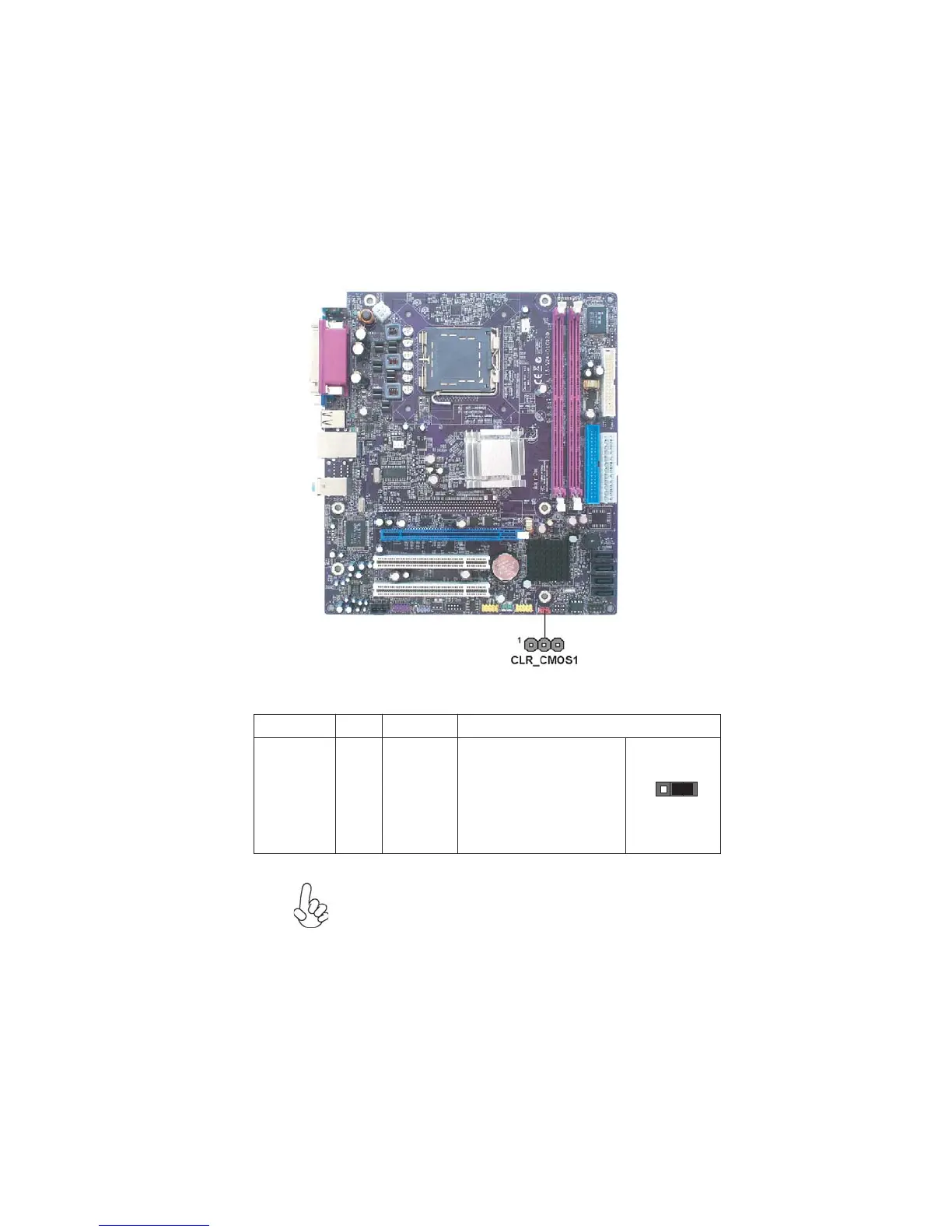

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
Type
Description Setting (default)
CLR_CMOS1
3-pin
Clear CMOS
1-2: CLEAR CMOS
2-3: NORMAL
Before clearing the
CMOS, make sure to
turn off the system.
1
CLR_CMOS1
To avoid the system unstability after clearing CMOS, we recommend users
to enter the main BIOS setting page to “Load Optimal Defaults ” and
then “Save Changes and Exit”.
