ECS A75F-M2 User Manual

8

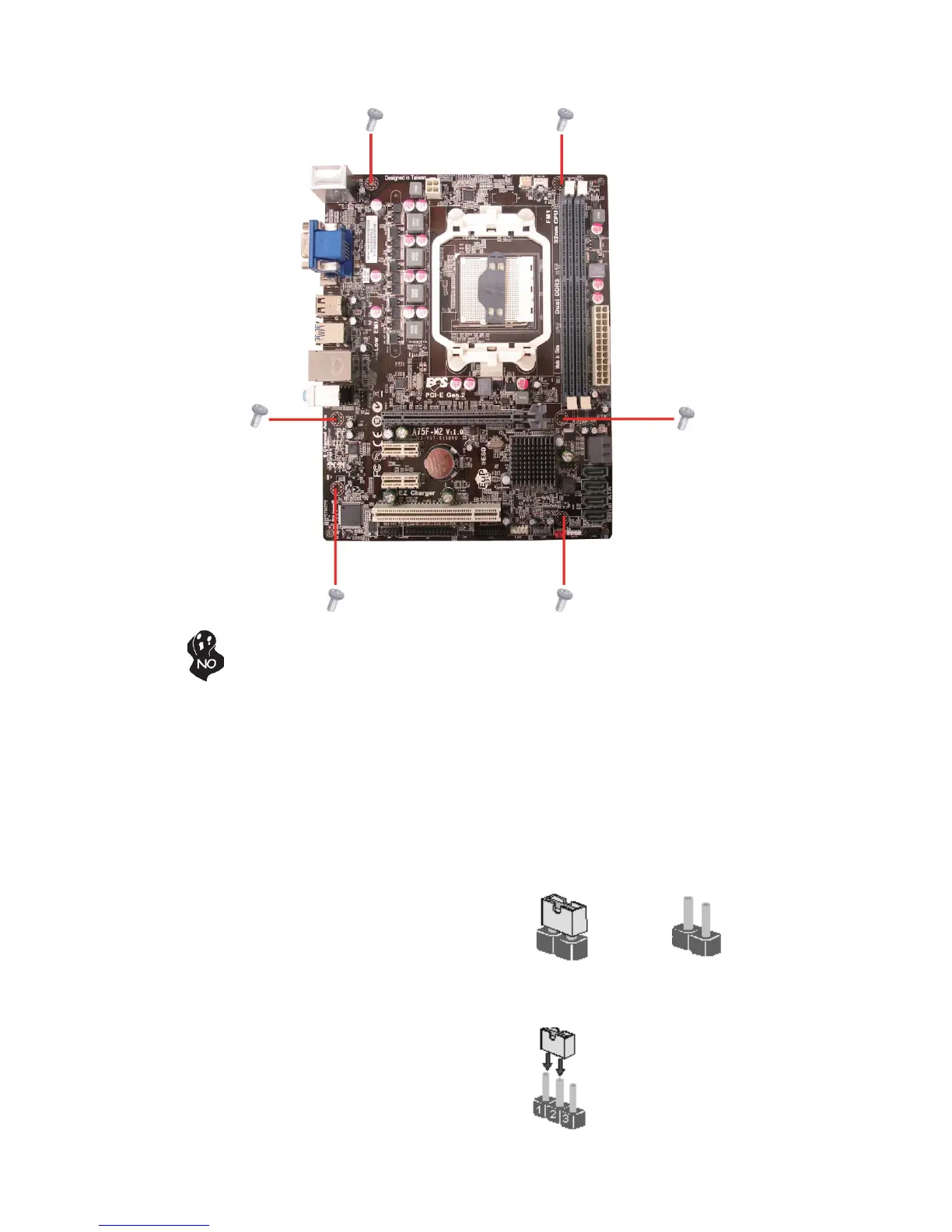

Installing the Motherboard
Do not over-tighten the screws as this can stress the motherboard.
Checking Jumper Settings
This section explains how to set jumpers for correct configuration of the motherboard.
Setting Jumpers
Use the motherboard jumpers to set system configuration options. Jumpers with
more than one pin are numbered. When setting the jumpers, ensure that the jumper
caps are placed on the correct pins.
The illustrations show a 2-pin jumper. When
the jumper cap is placed on both pins, the
jumper is SHORT. If you remove the jumper
cap, or place the jumper cap on just one pin,
the jumper is OPEN.
This illustration shows a 3-pin jumper. Pins
1 and 2 are SHORT.
SHORT OPEN

ECS A75F-M2 Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon FX, AMD Athlon II X2, AMD Athlon II X3, AMD Athlon II X4, AMD Athlon X2, AMD Athlon X2 Dual-Core
S/PDIF out connector	Yes
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
BIOS type	AMI
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	200 mm
Width	240 mm
