11
Installing the Motherboard

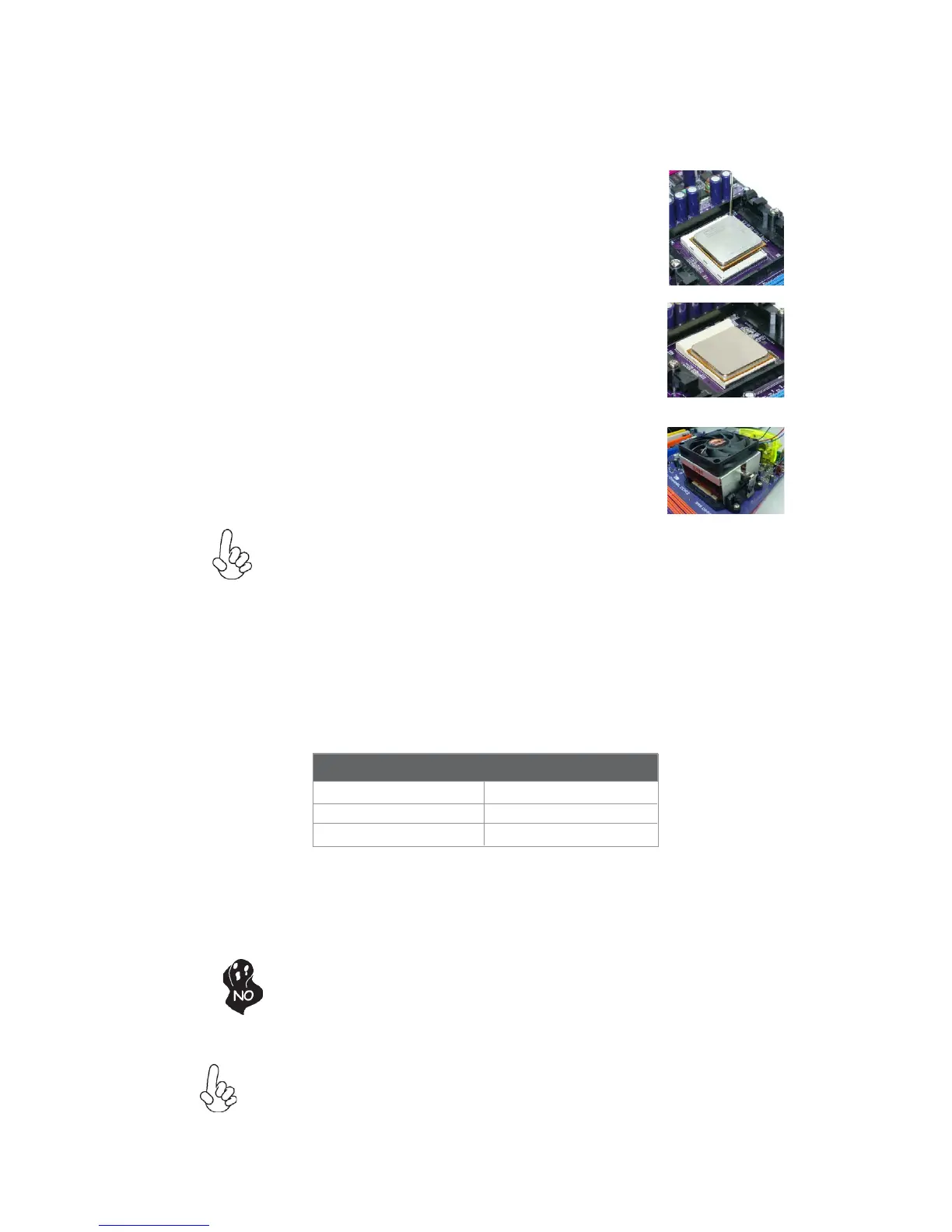

CPU Installation Procedure
The following illustration shows CPU installation components.
To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 4800 rpm at least. CPU fan and heatsink
installation procedures may vary with the type of CPU fan/heatsink sup-
plied. The form and size of fan/heatsink may also vary.
Installing Memory Modules
This motherboard accommodates two memory modules. It can support two 240-pin
DDR3
1866*
1
/1600/1333. The total memory capacity is 32*
2
GB.
DDR3 SDRAM memory module table
Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always
wear a grounding strap when you handle the modules.
You must install at least one module in any of the two slots. Each module can be
installed with 16 GB of memory.
Memory module Memory Bus
DDR3 1333 667 MHz
DDR3 1600 800 MHz
DDR3 1866 933 MHz
*1. Due to the limitation of chipset spec, it supports up to 1866 MHz for
motherboard with a single DIMM per channel.
1 Install your CPU. Pull up the lever away from
the socket and lift up to 90-degree angle.
2 Locate the CPU cut edge (the corner with
the pin hold noticeably missing). Align and
insert the CPU correctly.
3 Press the lever down and apply thermal
grease on top of the CPU.
4 Put the CPU Fan down on the retention mod-
ule and snap the four retention legs of the
cooling fan into place.
5 Flip the levers over to lock the heat sink in
place and connect the CPU cooling Fan power
cable to the CPUFAN connector. This com-
pletes the installation.
* For reference only
*2. Please refer to Memory QVL for more information.
