ECS A75F-M2 User Manual

30
Using BIOS
This item enables you to define the CPU temperature by smartly adjusting the CPU
Fan. When it is set at certain temperature, the CPU Fan PWM value will change
accordingly.
CPU Smart Fan Control (Enabled)
PC Health Status
On motherboards support hardware monitoring, this item lets you monitor the
parameters for critical voltages, temperatures and fan speeds.
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit

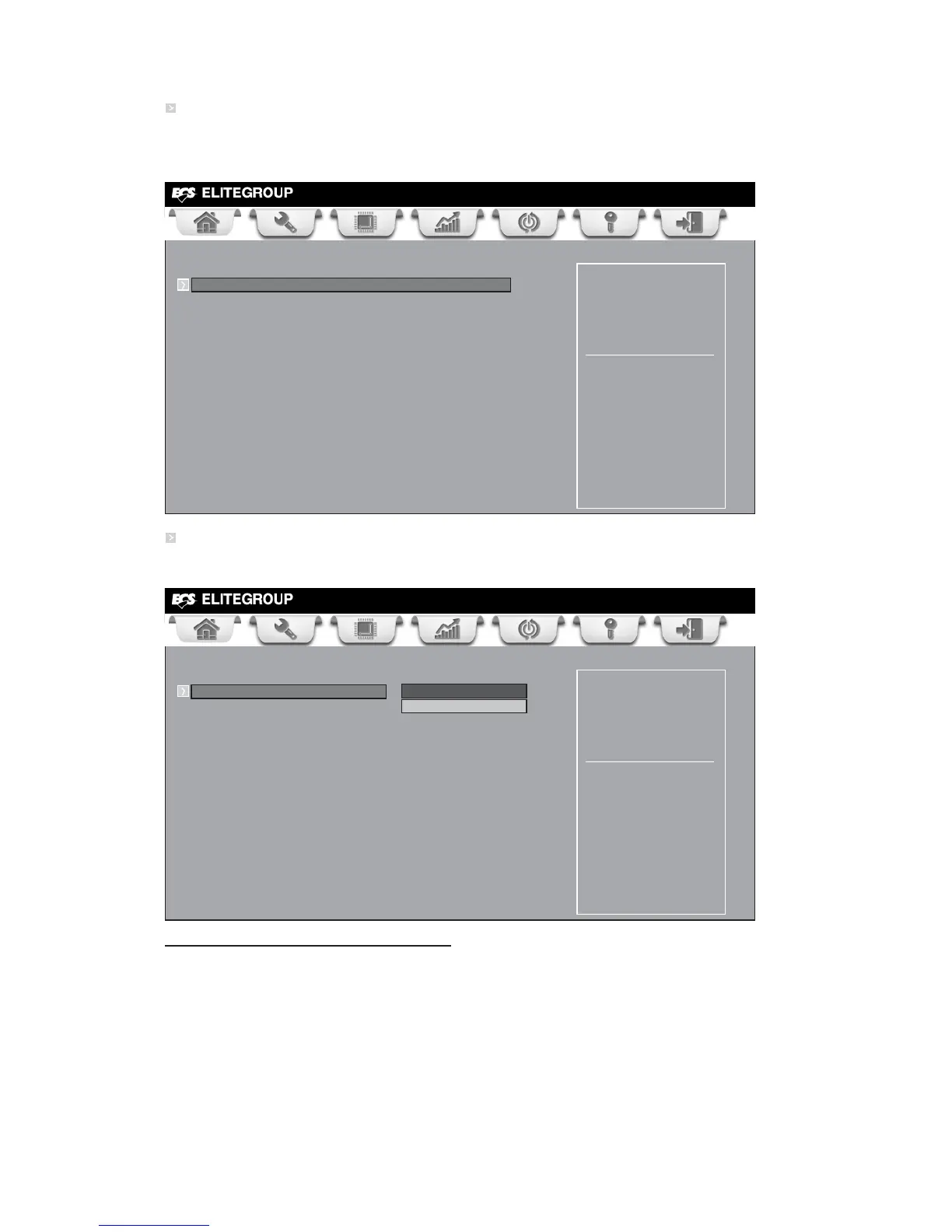

Smart Fan Function
CPU Tct1 : +38
CPU FAN : N/A
SYS FAN : 4672 RPM
CPU Vcore : +1.200 V
DIMM Voltage : +1.544 V
SB Voltage : +1.088 V
Scroll to this item and press <Enter> to view the following screen:
Smart Fan Function
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
High Limit Temperature 60
Low Limit Temperature 37
High Limit PWM 200
Low Limit PWM 56
CPU Smart Fan Control Enabled
Smart Fan Mode Normal

ECS A75F-M2 Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon FX, AMD Athlon II X2, AMD Athlon II X3, AMD Athlon II X4, AMD Athlon X2, AMD Athlon X2 Dual-Core
S/PDIF out connector	Yes
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
BIOS type	AMI
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	200 mm
Width	240 mm
