ECS A75F-M2 User Manual

59
Setting Up AMD A75 RAID Configuration
The BIOS CMOS Setup Utility screen appears.
Setting Up a bootable RAID Array
This section explains how to configure a bootable AMD RAID array.
Setting Up the BIOS
2. Use the arrow keys to select Advanced menu (see Figure 1.1), then select SATA
Configuration and press Enter.

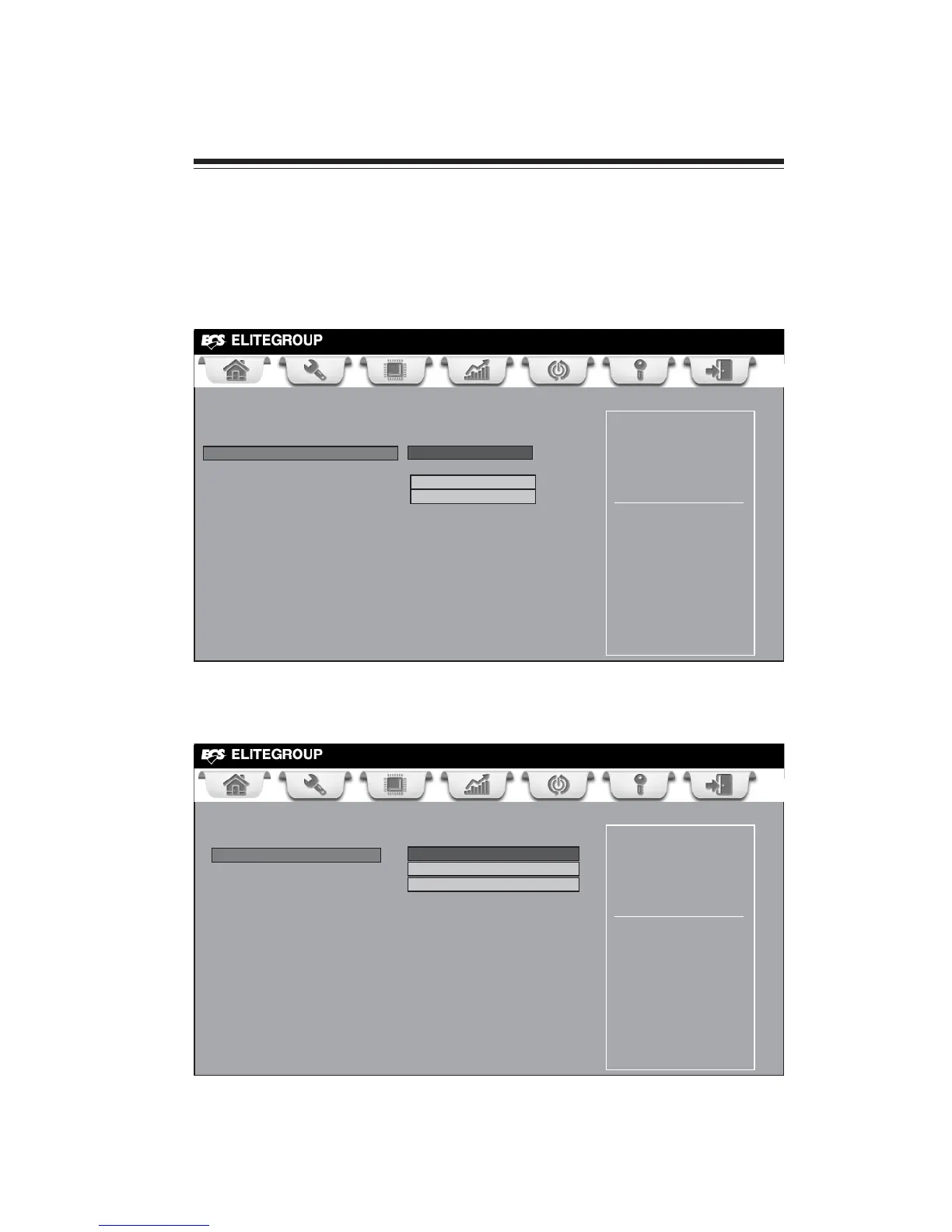

Figure 1.2 SATA Configuration Screen
3. Use the arrow keys to select the SATA Configuration (see Figure 1.2) and globally
set SATA Configuration to RAID.
1. Start your computer, then press Delete to enter the BIOS setup.
Figure 1.1 BIOS CMOS Setup Utility Main Screen
Chapter 6
Setting Up AMD A75 RAID Configuration
Choose the system default
language
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
BIOS Information
System Language English
System Date Tue 01/01/2008
System Time 16:52:28
Main Advanced Chipset M.I.B III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select
lk
mn
: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
SATA Configuration
Serial-ATA Controller Enabled
SATA Mode IDE
SATA Port1 WDC WD5000AAKX (500.1
SATA Port2 Not Present
SATA Port3 Not Present
SATA Port4 Not Present
SATA Port5 Not Present
SATA Port6 Not Present
: Select Screen
/Click: Select Item

ECS A75F-M2 Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon FX, AMD Athlon II X2, AMD Athlon II X3, AMD Athlon II X4, AMD Athlon X2, AMD Athlon X2 Dual-Core
S/PDIF out connector	Yes
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
BIOS type	AMI
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	200 mm
Width	240 mm
