ECS A75F-M2 User Manual

22
Installing the Motherboard

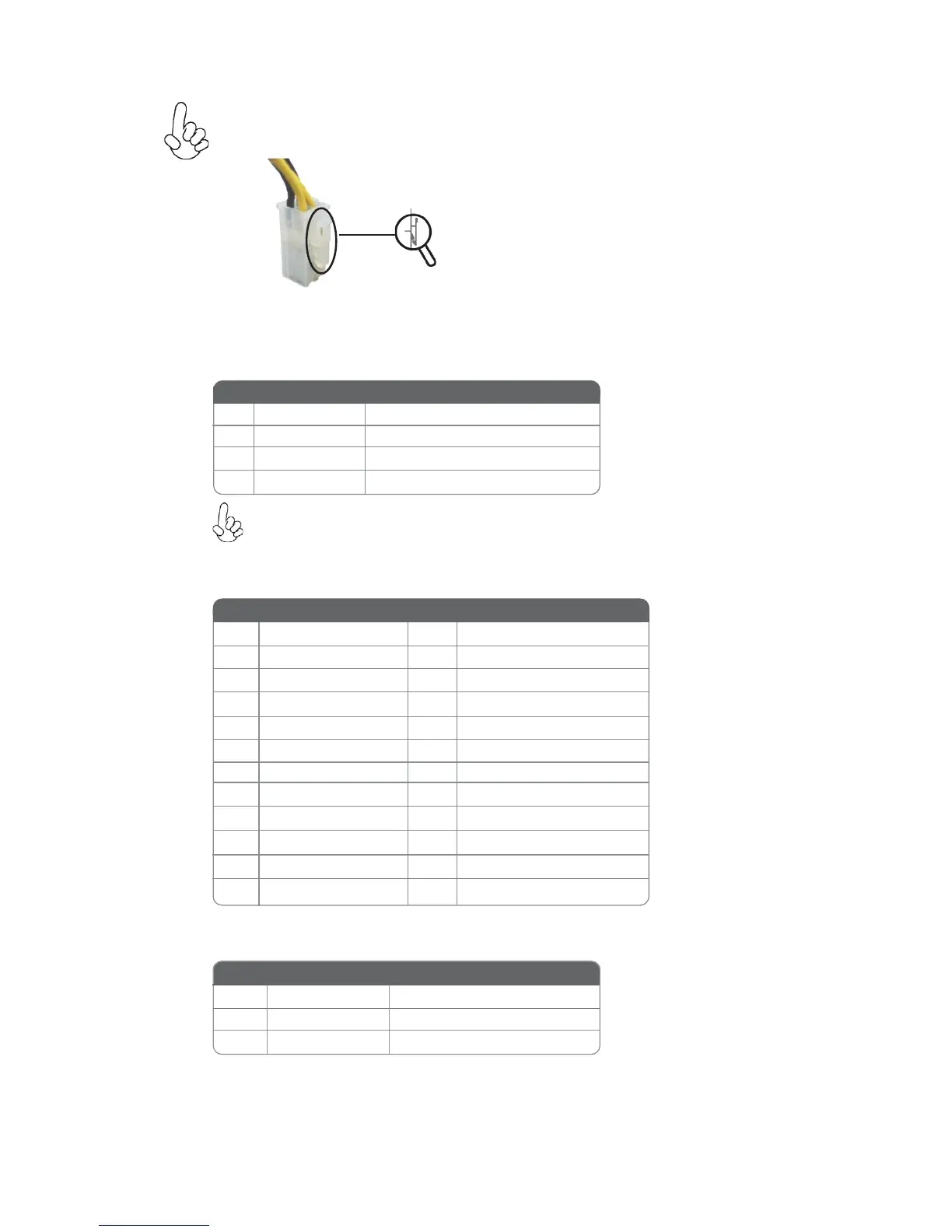

SYS_FAN: FAN Power Connector
Pin Signal Name Function
1 GND System Ground
2
+12V Power +12V
3 Sense Sensor
CPU_FAN: Cooling FAN Power Connector
Users please note that the fan connector supports the CPU cooling
fan of 1.1A~2.2A (26.4W max.) at +12V.
1 GND System Ground
2 +12V Power +12V
3 Sense Sensor
4 PWM CPU FAN control
Function
Pin Signal Name
ATX_POWER: ATX 24-pin Power Connector
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 COM
4 +5V 16 PS_ON
5 Ground 17 COM
6 +5V 18 COM
7 Ground 19 COM
8 PWRGD 20 -5V
9 +5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 COM
Pin Signal Name Pin Signal Name
The ATX12V4P power connector is used to provide power to the CPU.
When installing 4-pin power cable, the
latches of power cable and the ATX12V4P
match perfectly.
Connecting 4-pin power cable
4-pin power cable

ECS A75F-M2 Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Athlon FX, AMD Athlon II X2, AMD Athlon II X3, AMD Athlon II X4, AMD Athlon X2, AMD Athlon X2 Dual-Core
S/PDIF out connector	Yes
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
BIOS type	AMI
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A75
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
On-board graphics card	No
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet

Weight and Dimensions

Depth	200 mm
Width	240 mm
