Installing the Motherboard
24-pin power cable

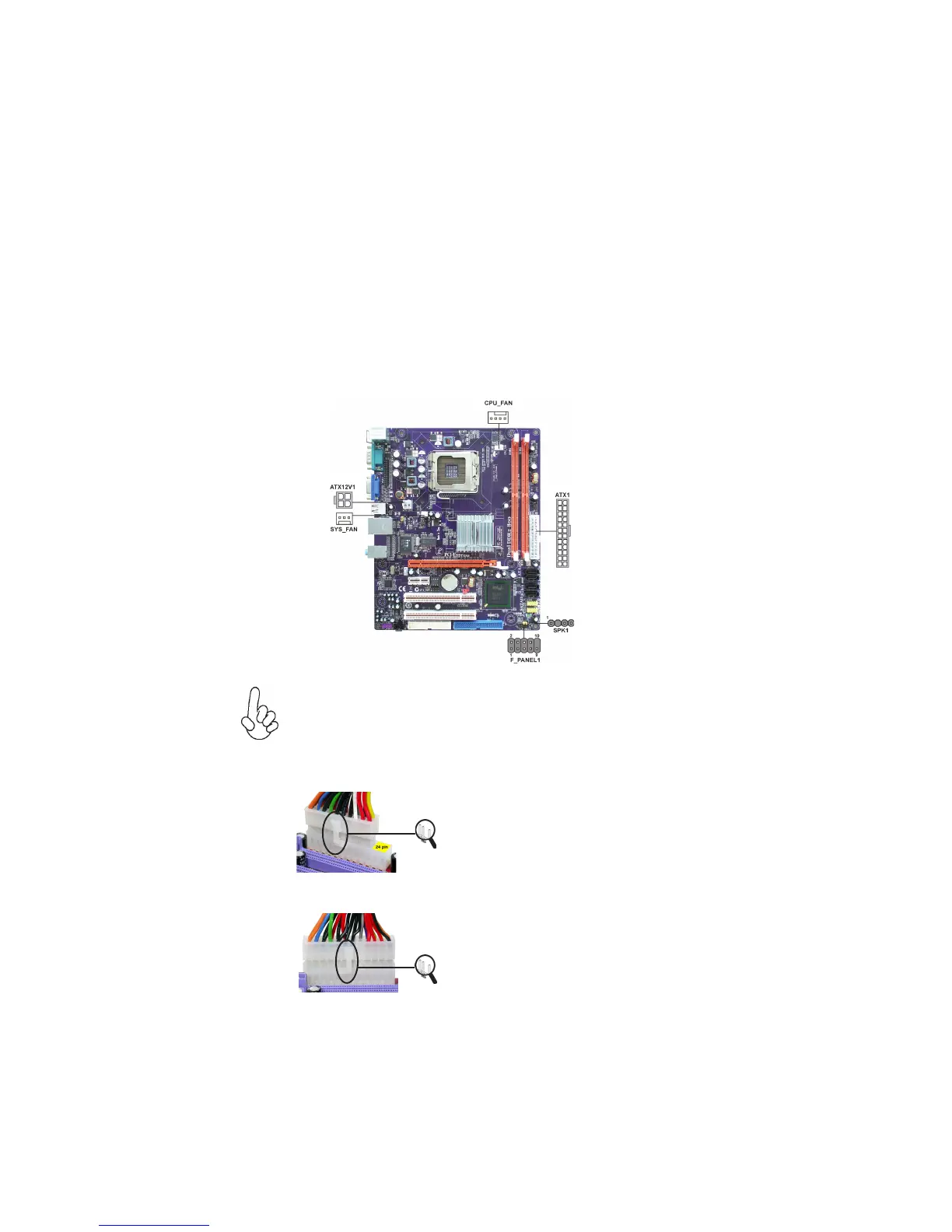

Connecting Case Components
After you have installed the motherboard into a case, you can begin connecting the
motherboard components. Refer to the following:
1 Connect the CPU cooling fan cable to CPU_FAN.
2 Connect the system cooling fan connector to SYS_FAN.
3 Connect the case switches and indicator LEDs to the F_PANEL1.
4 Connect the case speaker cable to SPK1.
5 Connect the standard power supply connector to ATX1.
6 Connect the auxiliary case power supply connector to ATX12V1.
Users please note that the 20-pin and 24-pin power cables can both be
connected to the ATX1 connector. With the 20-pin power cable, just align
the 20-pin power cable with the pin 1 of the ATX1 connector. However,
using 20-pin power cable may cause the system to become unbootable or
unstable because of insufficient electricity. A minimum power of 300W is
recommended for a fully-configured system.
20-pin power cable
With ATX v2.x power supply, users please
note that when installing 24-pin power cable,
the latches of power cable and the ATX1
match perfectly.
With ATX v1.x power supply, users please
note that when installing 20-pin power cable,
the latch of power cable falls on the left side
of the ATX1 connector latch, just as the
picture shows.
Connecting 20/24-pin power cable

ECS G31T-M Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
S/PDIF out connector	Yes
Graphics card	GMA 3100
Maximum graphics card memory	384 MB
LAN controller	Realtek RTL8101E
Networking features	Fast Ethernet
ACPI version	1.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	200 mm
Width	244 mm
