Installing the Motherboard

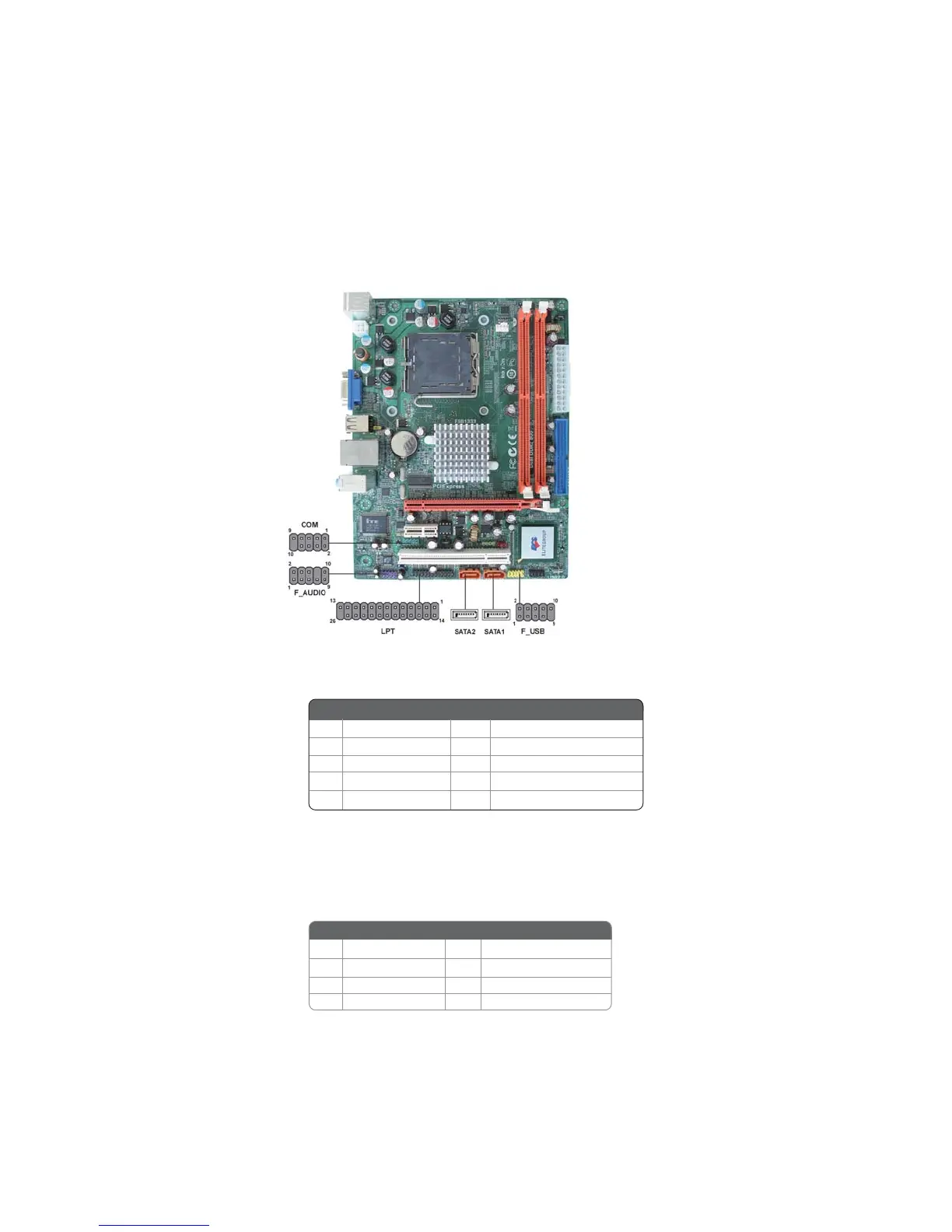

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

SATA1~2: Serial ATA connectors

These connectors are used to support the new Serial ATA devices for the highest date

transfer rates (3.0 Gb/s), simpler disk drive cabling and easier PC assembly. It elimi-

nates limitations of the current Parallel ATA interface. But maintains register com-

patibility and software compatibility with Parallel ATA.

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

7 Ground - -

Pin Signal Name

F_AUDIO: Front Panel Audio header for Azalia

This header allows the user to install auxiliary front-oriented microphone and line-

out ports for easier access.

1 PORT 1L 2 AUD_GND

3 PORT 1R 4 PRESENCE#

5 PORT 2R 6 SENSE1_RETURN

7 SENSE_SEND 8 KEY

Pin Signal Name

9 PORT 2L 10 SENSE2_RETURN

Questions and Answers:

Need help?

Do you have a question about the ECS G31T-M9 and is the answer not in the manual?

ECS G31T-M9 Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
CPU fan connector	Yes
USB 2.0 connectors	1
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Audio chip	VIA VT1708B
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Core2 Duo/ Pentium Dual Core/ Celeron Dual Core/ Celeron 400
Graphics card	GMA 3100
Networking features	Fast Ethernet
ACPI version	1.0
BIOS memory size	32 Mbit
