Setting Up eJIFFY
52
Installation and BIOS Setup
DVD Activation
Finish the DVD utility setup, and then set the BIOS to complete eJIFFY activation.

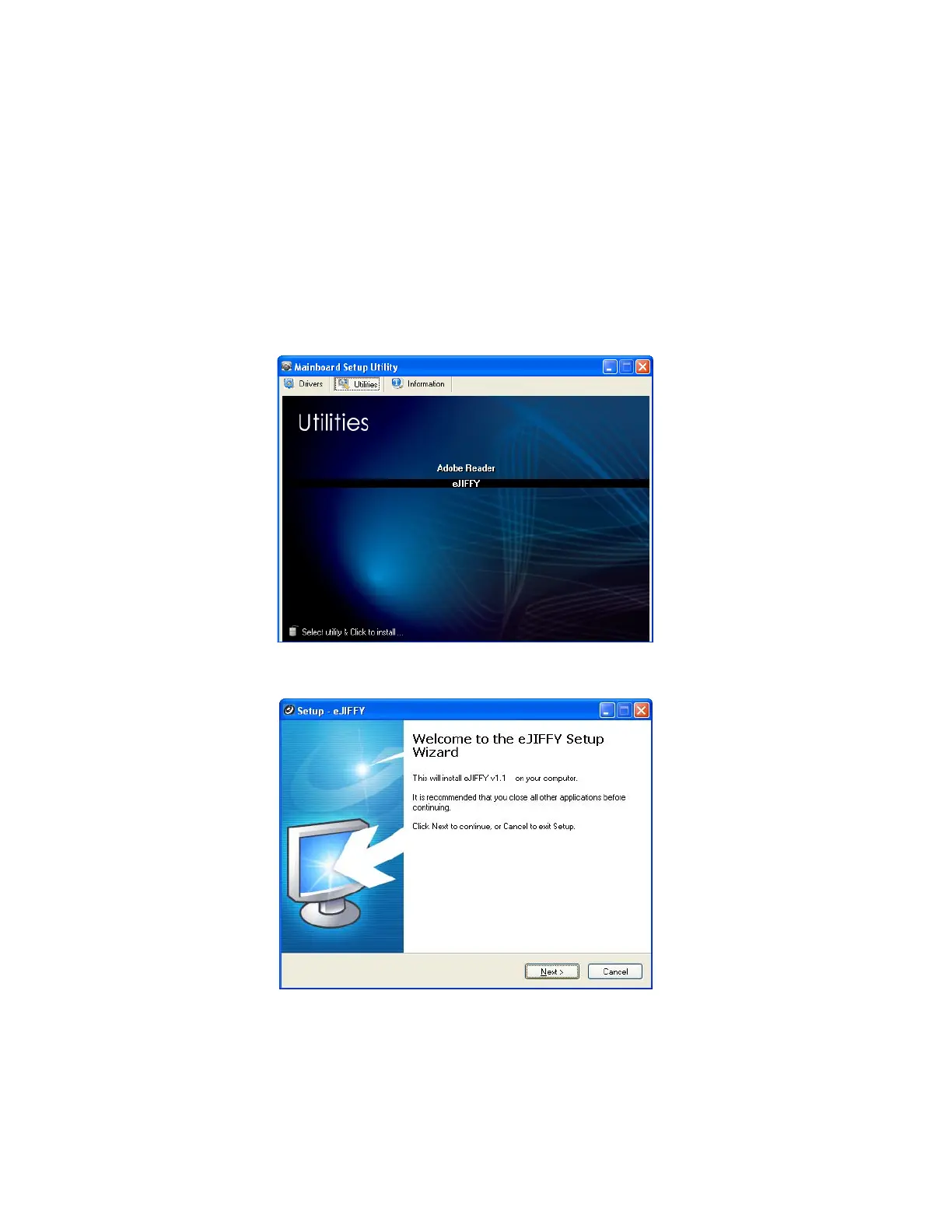

1. Insert ECS software utility DVD and enter below “Utilities” screen. Click eJIFFY
feature item to install.
2.
Follow the onscreen instructions to finish eJIFFY setup.
