21
Installing the Motherboard
Connecting I/O Devices

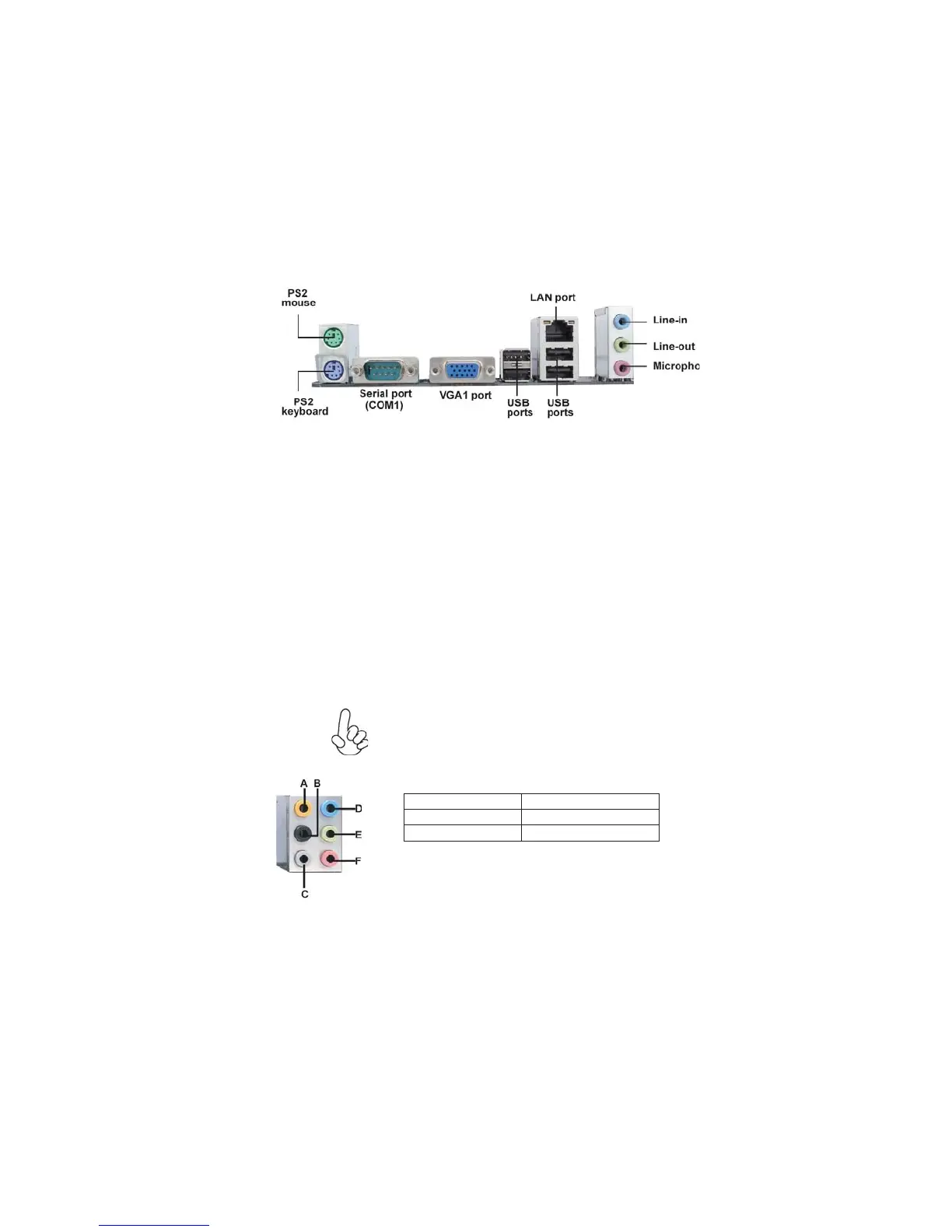

The backplane of the motherboard has the following I/O ports:
This motherboard may adopt 8-channel audio ports that
correspond to the A,B, C, and E port respectively. In addi-
tion, all of the 3 ports, B, C, and E provide users with both
right & left channels individually. Users please refer to the
following note for specific port function definition.
A: Center & Woofer D: Line-in
B: Back Surround E: Front Out
C: Side Surround F: Mic_in Rear
The above port definition can be changed to audio input or
audio output by changing the driver utility setting.
PS2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device.
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
Serial Port Use the COM port to connect serial devices such as mice or
(COM1) fax/modems.
VGA1 Port Connect your monitor to the VGA port.
.
Audio Ports
(optional)
Use the three audio jacks to connect audio devices. The first
jack is for stereo line-in signal. The second jack is for stero
line-out signal. The third jack is for microphone.
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
USB Ports Use the USB ports to connect USB devices.
