ECS GeForce 7050M-M User Manual

53
NVIDIA RAID Configuration
Setting Up a Bootable RAID Array
This section explains how to configure a bootable NVIDIA RAID array.
Setting Up the BIOS

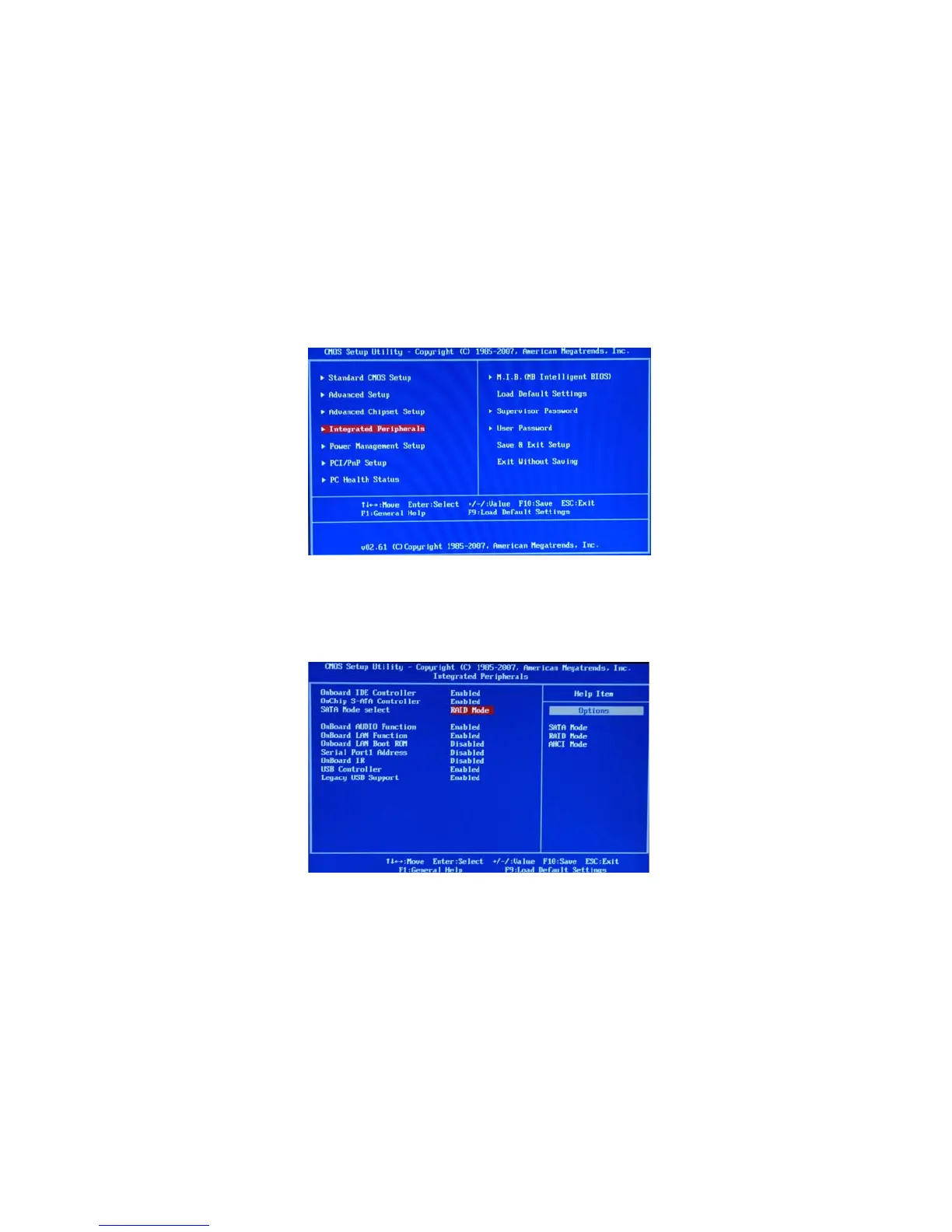

Use the arrow keys to select Integrated Peripherals (see Figure 1.4), then
press Enter.
The Integrated Peripherals screen (or a screen similar to it) appears.
Figure 1.5 Integrated Peripherals Screen
From the Integrated Peripherals Window, globally set SATA Mode select to
RAID Mode (see Figure 1.5).
Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Figure 1.4 BIOS CMOS Setup Utility Main Screen
1
2
3

ECS GeForce 7050M-M Specifications

General

Brand	ECS
Model	GeForce 7050M-M
Category	Motherboard
Language	English
