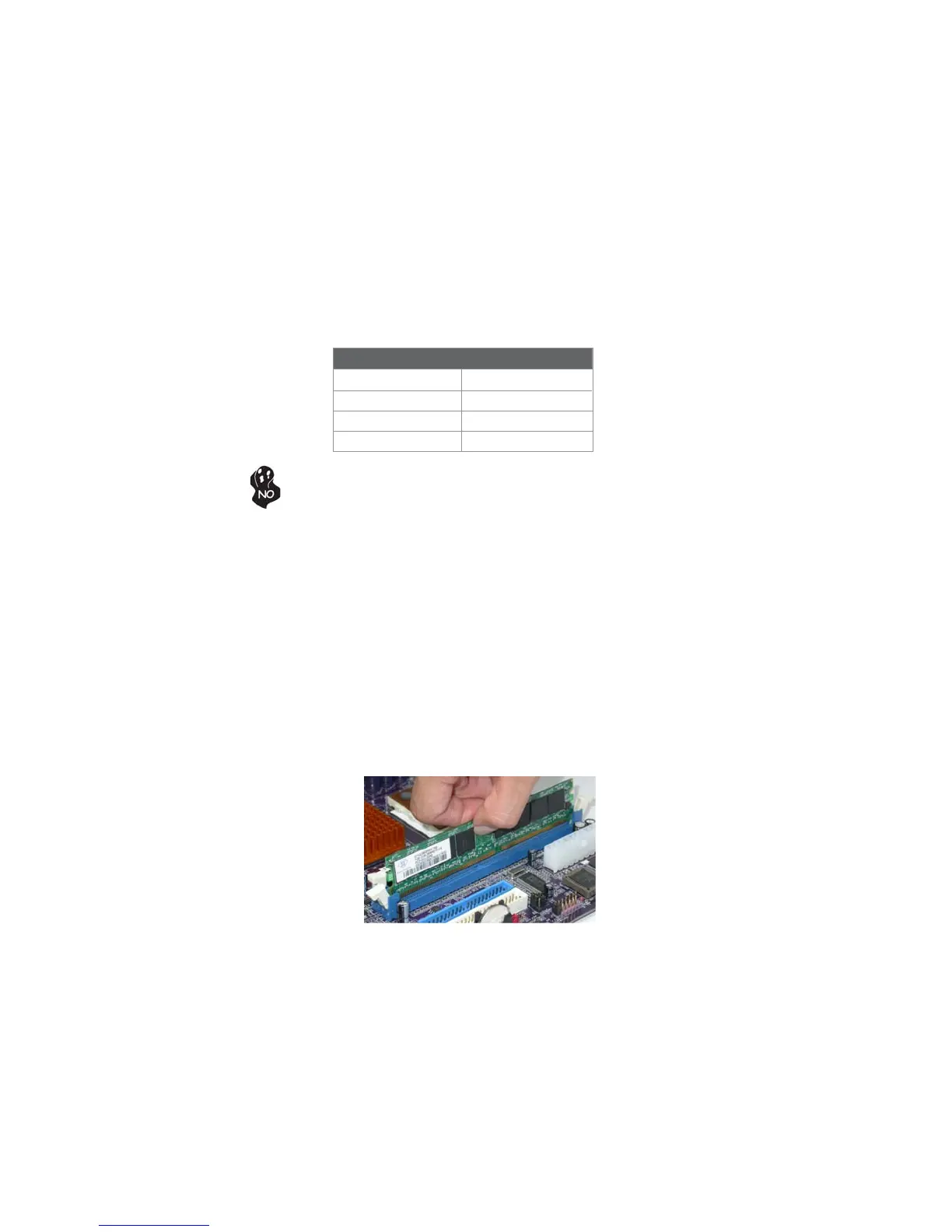

Installing the Motherboard
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR2 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
Installing Memory Modules
This motherboard accommodates two 240-pin unbuffered DIMMs and supports DDR2
800
/667/533/400 DDR2 SDRAM. You must install at least one module in any of the
two slots. The total memory capacity is up to 16 GB.
Do not remove any memory module from its antistatic packaging until you
are ready to install it on the motherboard. Handle the modules only by
their edges. Do not touch the components or metal parts. Always wear a
grounding strap when you handle the modules.
DDR2 SDRAM memory module table
Memory module Memory Bus
DDR2 533 266 MHz
DDR2 667 333 MHz
DDR2 800 400 MHz
DDR2 400 200 MHz

ECS GeForce6100PM-M2 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	Award
BIOS memory size	64 Mbit
RAID levels	0, 1
