ECS GeForce6100PM-M2 User Manual

21
Installing the Motherboard
Refer to the illustration below for proper installation:
This motherboard does not support the “Hot-Plug” function.

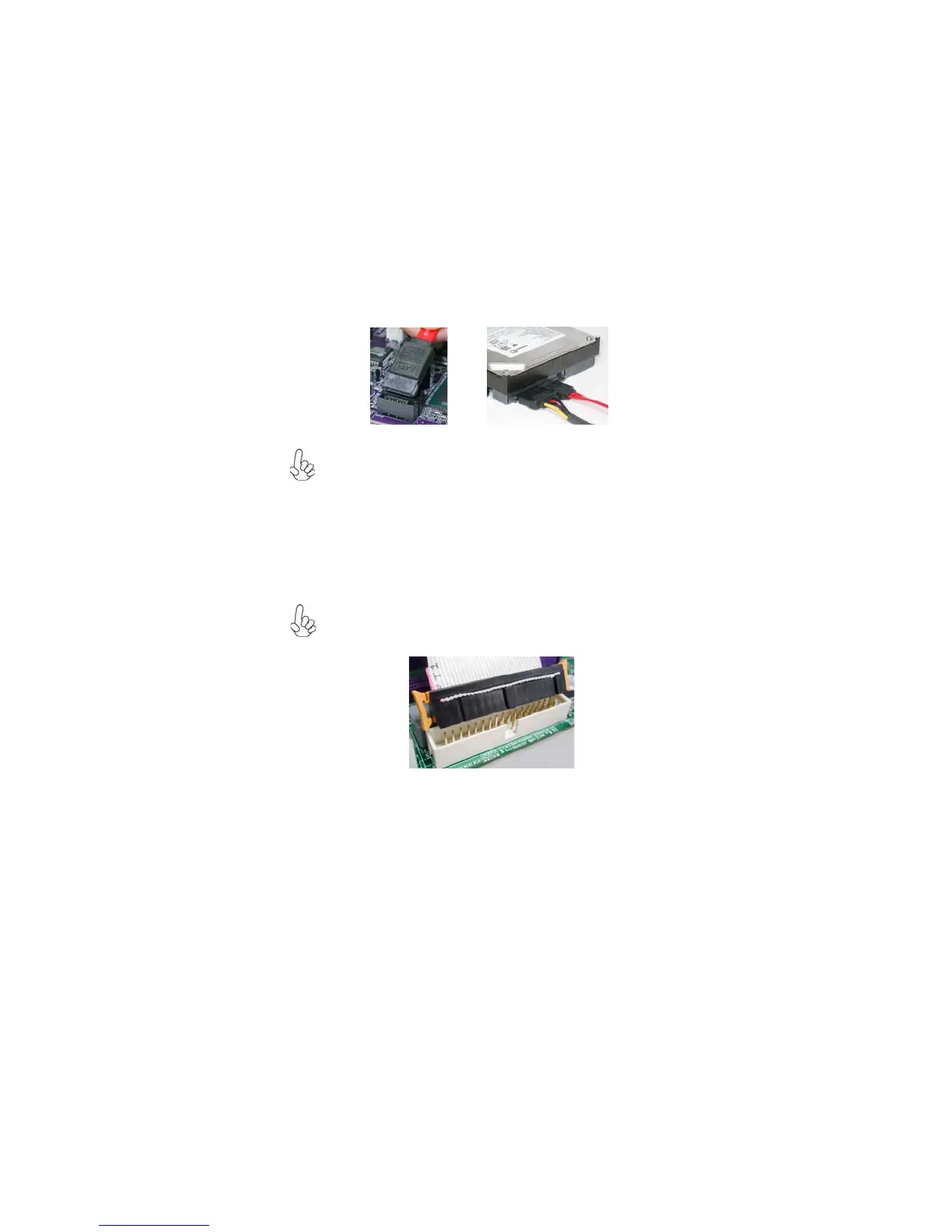

1 Attach either cable end to the connector on the motherboard.
2 Attach the other cable end to the SATA hard drive.
3 Attach the SATA power cable to the SATA hard drive and connect the
other end to the power supply.
Installing a Floppy Diskette Drive
You must orient the cable connector so that the pin 1 (color) edge of
the cable corresponds to the pin 1 of the I/O port connector.
FDD: Floppy Disk Connector
Connect the single end of the floppy connector to the onboard floppy connector
firstly, and then connect the remaining plugs on the other end to the floppy drives
correspondingly.

ECS GeForce6100PM-M2 Specifications

General

Number of memory slots	2
Maximum internal memory	16 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
USB 2.0 connectors	3
S/PDIF out connector	Yes
Number of SATA connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Power source type	ATX
Audio output channels	6.1 channels
Motherboard form factor	micro ATX
BIOS type	Award
BIOS memory size	64 Mbit
RAID levels	0, 1
