H310CH5-TI2 USER MANUAL
8

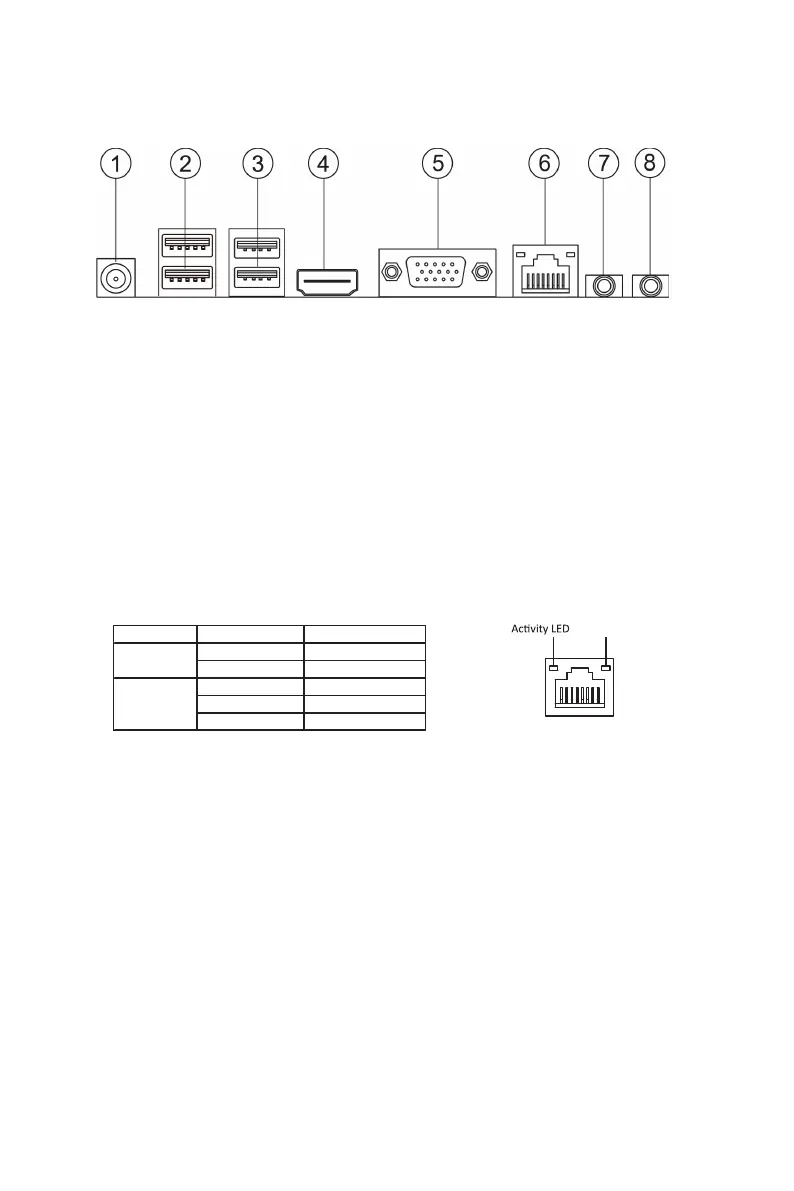

I/O Ports
1. DC_IN Port
Connect the DC_IN port to the power adapter.
2. USB 3.0 Ports
Use the USB 3.0 port to connect USB 3.0 device.
3. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
4. HDMI Port
Y
ou can connect the display device to the HDMI port.
5. VGA Port
Connect your monitor to the VGA port.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-out (green)
It is used to connect to speakers or headphones.
8. Microphone (pink)
It is used to connect to a microphone.
Link LED
LAN Port
LAN LED Status Descri
tion
OFF No data
Oran
e blinkin
Active
OFF No link
Green Link
10/100
ort
Oran
eLink
Gi
a
ort
Activity LED
Link LED
