Installing the Motherboard
Checking Jumper Settings

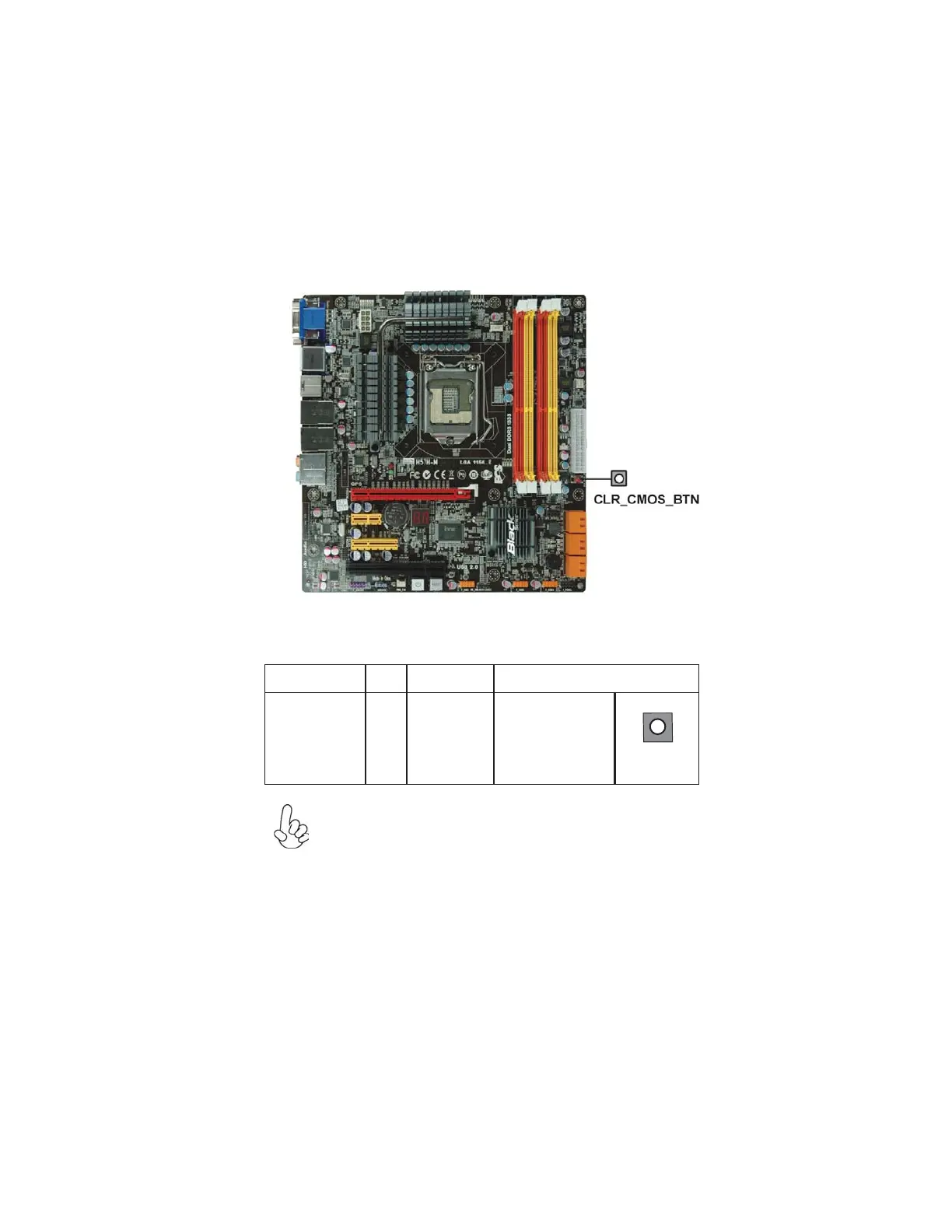

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
To avoid the system unstability after clearing CMOS, we recommend
users to enter the main BIOS setting page to “Load Default Settings” and
then “Save Changes and Exit”.
Name Type Description
Setting (default)
CLR_CMOS_BTN
button
CLEAR CMOS
NO PUSH: NORMAL
PUSH: CLEAR
Before clearing the
CMOS, make sure to
turn the system off.
CLR_CMOS_BTN
Jumper Settings
