16
Installing the Motherboard
Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect them
to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can in-
crease the motherboard’s capabilities by adding hardware that performs tasks that are
not part of the basic system.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may
have to manually configure the card before installation.
This motherboard is equipped with one standard PCI slot. PCI
stands for Peripheral Component Interconnect and is a bus stan-
dard for expansion cards, which for the most part, is a supple-
ment of the older ISA bus standard. The PCI slot on this board
are PCI v2.3 compliant.

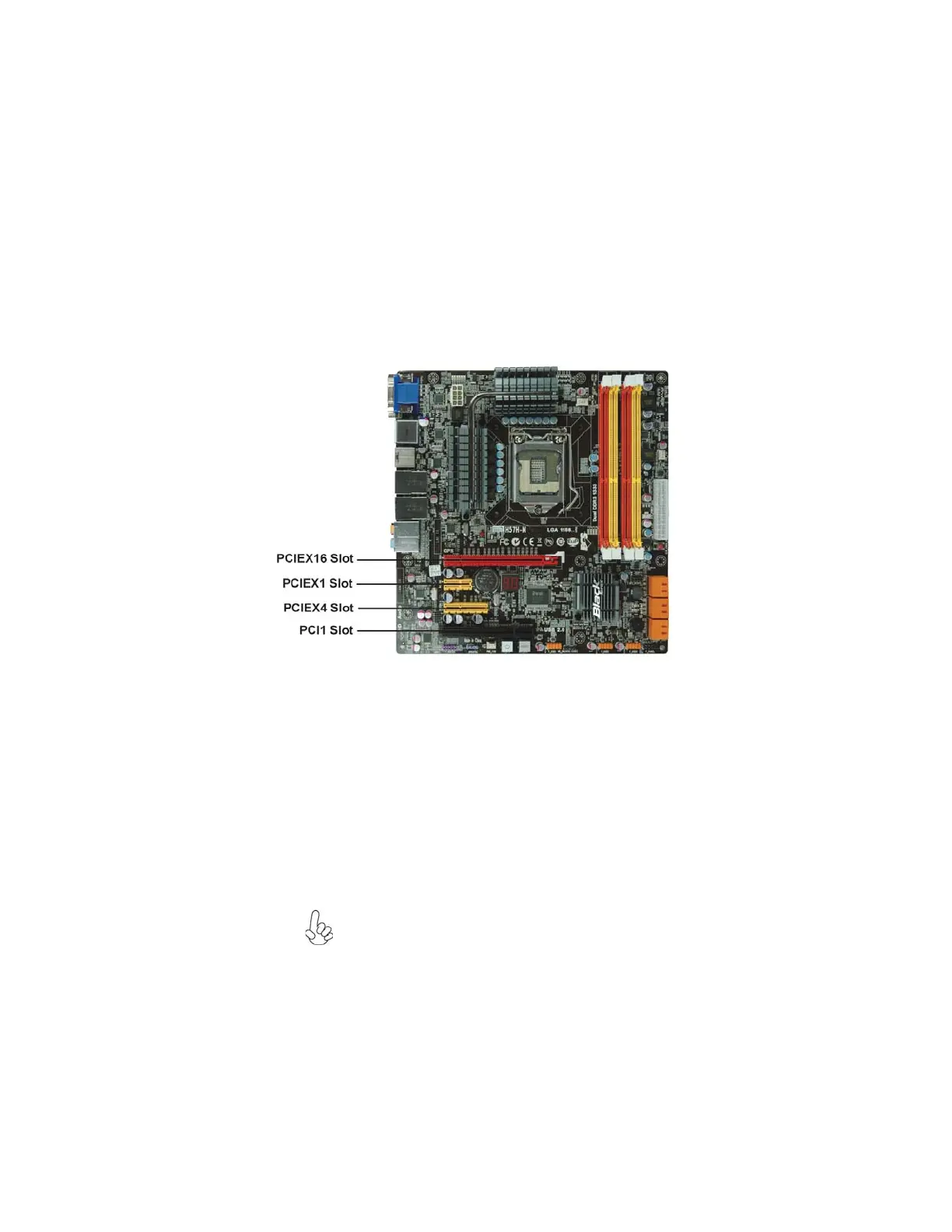

PCI1 Slot
Expansion Slots
The PCI Express x1 slots are fully compliant to the PCI Ex-
press Base Specification revision 1.1.
PCIEX1 Slot
PCIEX16 Slot
The PCI Express x16 slot is used to install an external PCI
Express graphics card that is fully compliant to the PCI Express
Base Specification revision 2.0.
The PCI Express x4 slot is fully compliant to the PCI Express
Base Specification revision 2.0.
PCIEX4 Slot
