ECS H57H-M User Manual

13
Installing the Motherboard
Installation Procedure

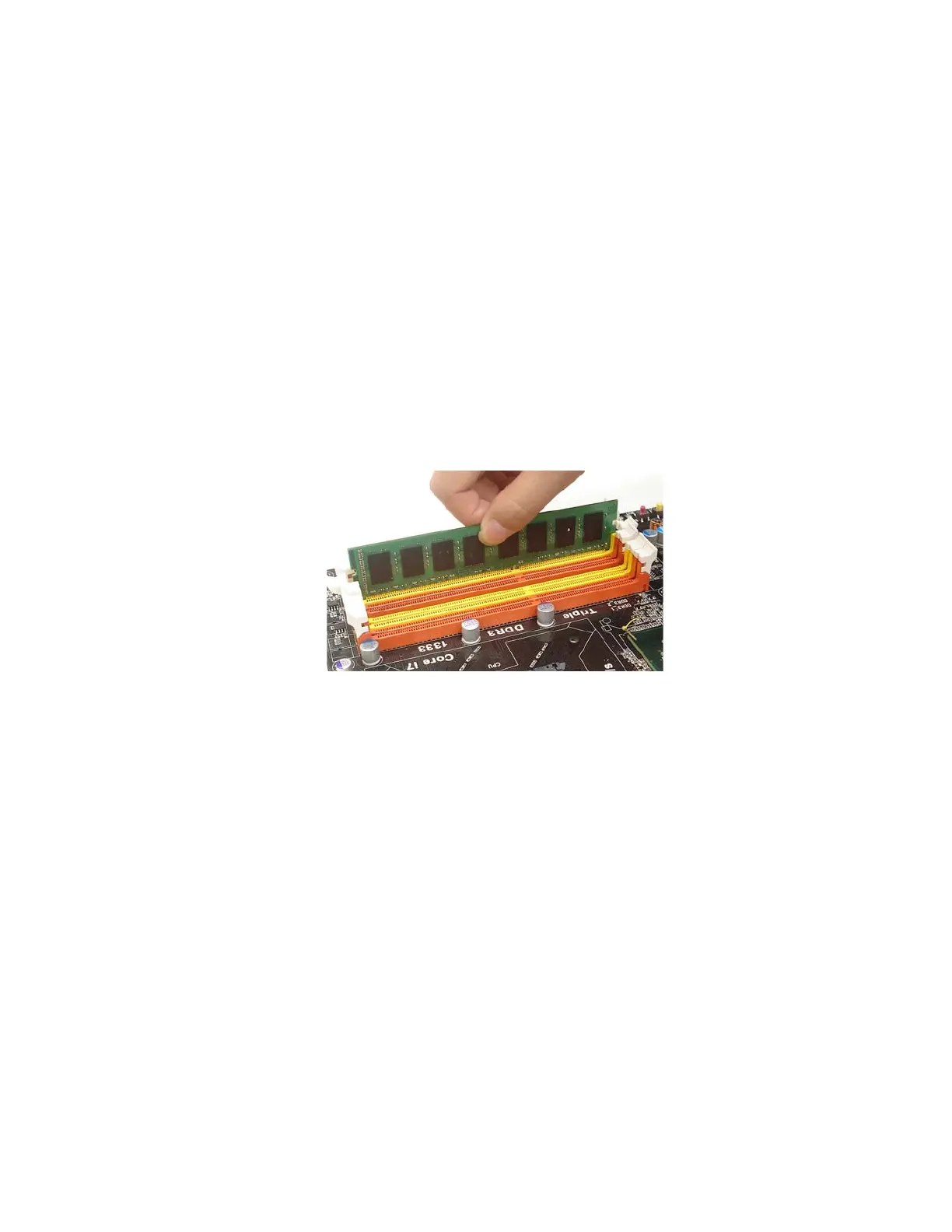

Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
* For reference only

ECS H57H-M Specifications

General

Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
System bus rate	2.5 GT/s
Processor socket	LGA 1156 (Socket H)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
BIOS type	AMI
BIOS memory size	64 Mbit
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H57
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111D(L)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
