Installing the Motherboard

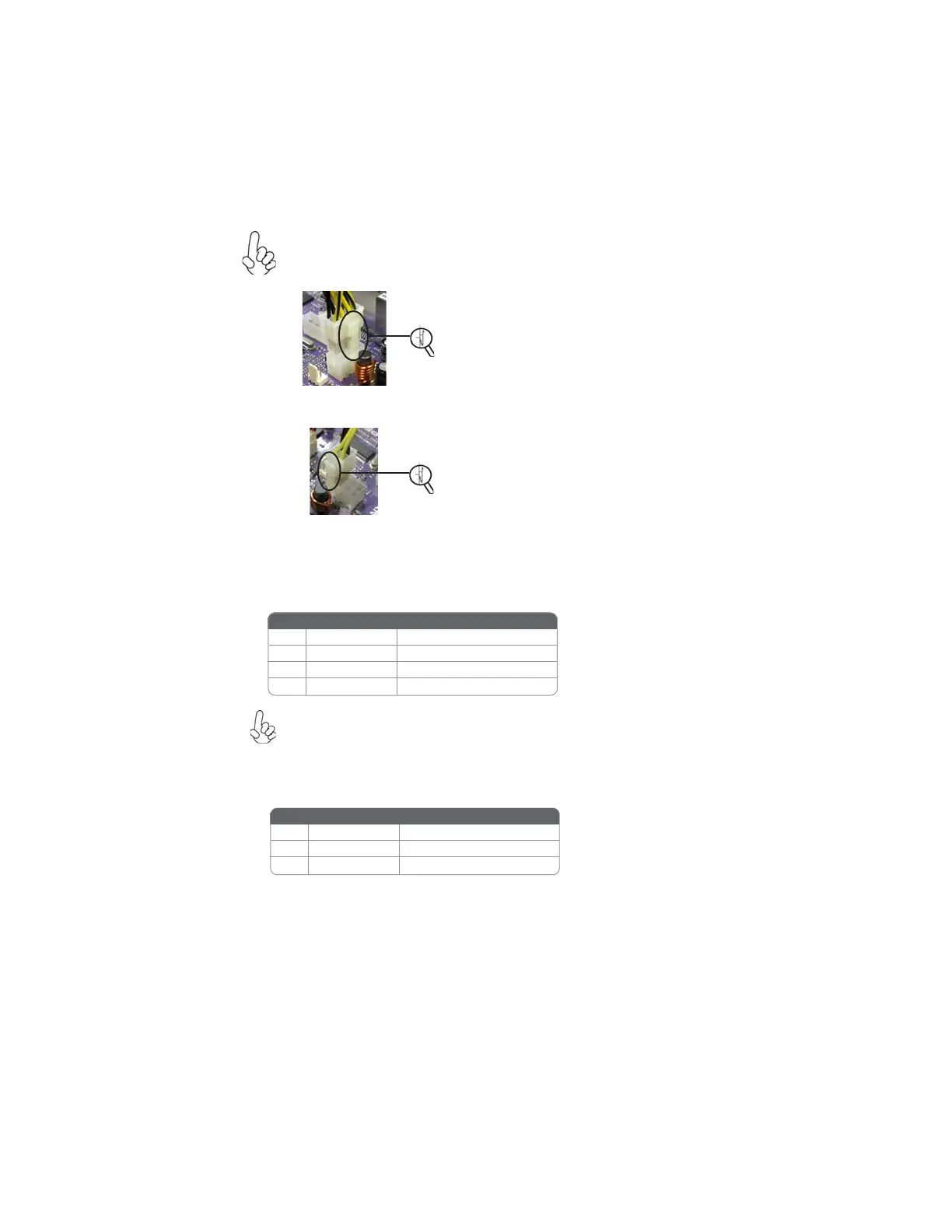

Users please note that the fan connector supports the CPU cooling fan of
1.1A ~ 2.2A (26.4W max) at +12V.
CPU_FAN: CPU cooling FAN Power Connector
1 GND System Ground
3 Sense Sensor
4 PWM PWM
Pin Signal Name Function
2 +12V Power +12V
PWR_FAN/SYS_FAN: FAN Power Connectors
1 GND System Ground
3 Sense Sensor
Pin Signal Name Function
2 +12V Power +12V
Users please note that the 8-pin and 4-pin power cables can both be con-
nected to the ATX12V connector.
When installing 8-pin power cable, the
latche
s of power cable and the ATX12V
connector match perfectly.
Connecting 8/4-pin power cable
8-pin power cable
When installing 4-pin power cable, the
latch falls on the left side of the ATX12V
connector.
4-pin power cable

ECS H57H-M Specifications

General

Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
System bus rate	2.5 GT/s
Processor socket	LGA 1156 (Socket H)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA II connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
BIOS type	AMI
BIOS memory size	64 Mbit
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H57
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111D(L)
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
