ECS H61H2-A User Manual

13
Installing the Motherboard
Installation Procedure
Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM .
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.

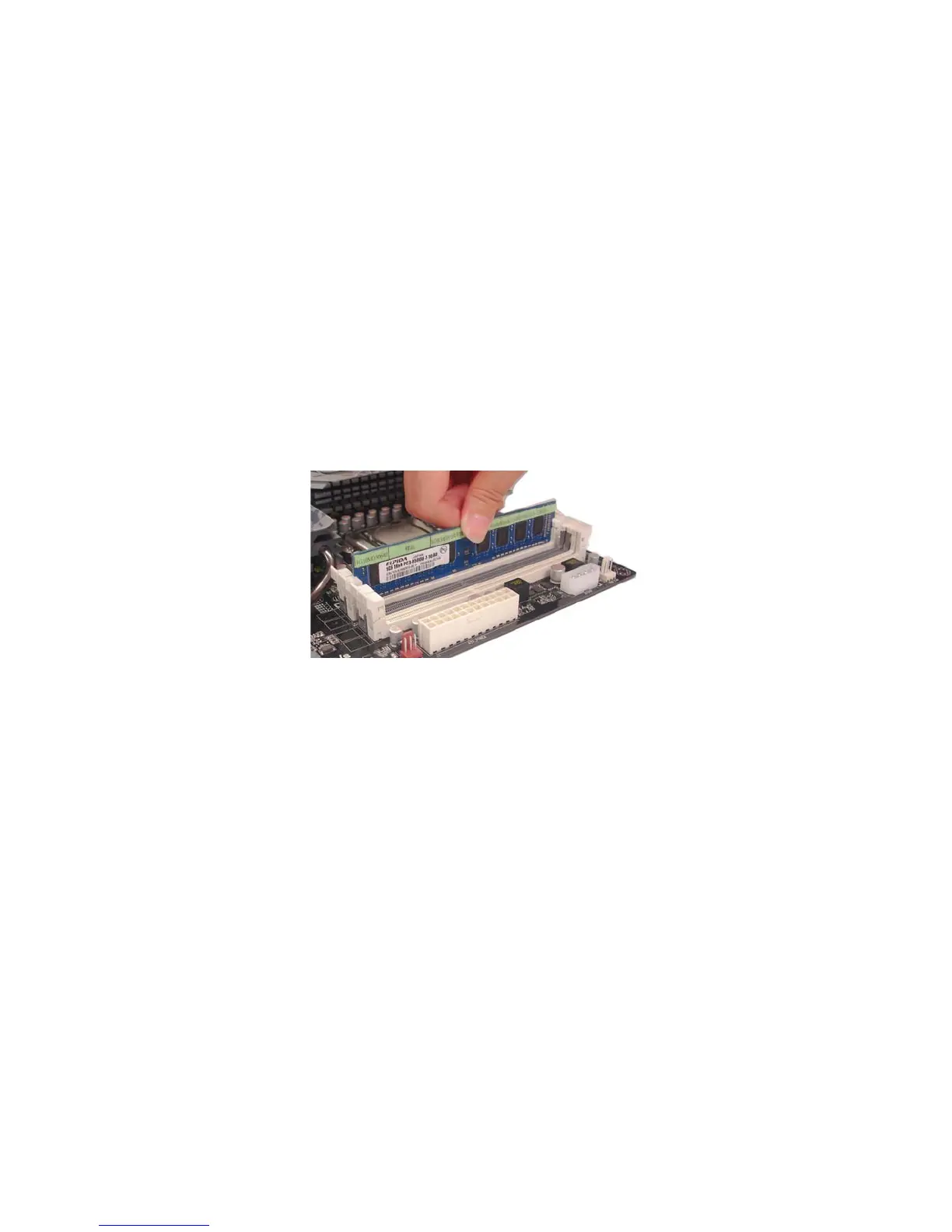

5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
* For reference only

ECS H61H2-A Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Power fan connector	Yes
Number of SATA II connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Component for	PC
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express x1 slots	3
LAN controller	Realtek RTL8111E
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	3.0
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	195 mm
Width	305 mm
