ECS H61H2-A User Manual

20
Installing the Motherboard
Connecting I/O Devices

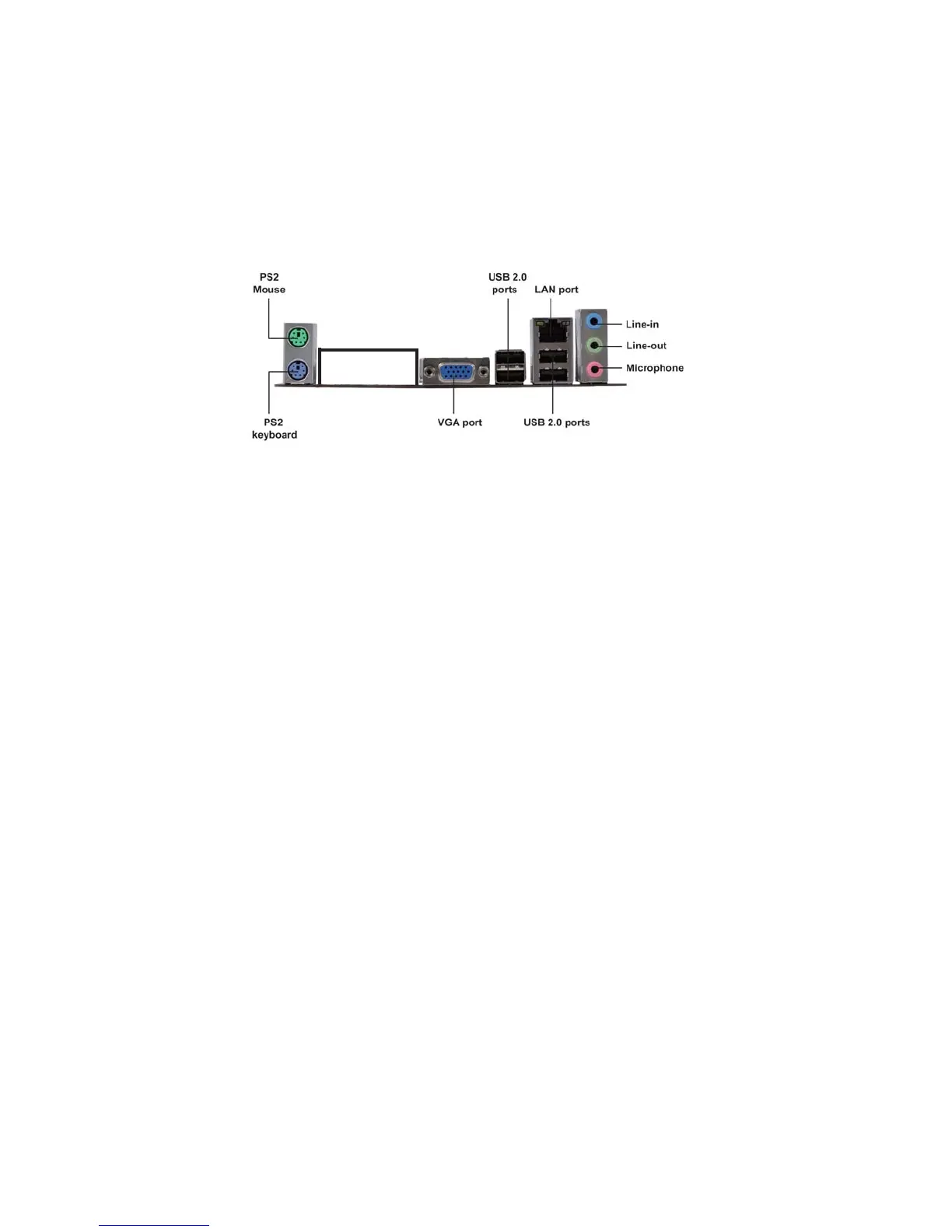

The backplane of the motherboard has the following I/O ports:
LAN Port
Connect an RJ-45 jack to the LAN port to connect your
computer to the Network.
Use the USB 2.0 ports to connect USB 2.0 devices.
USB 2.0 Ports
PS2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
PS2 Mouse
Use the upper PS/2 port to connect a PS/2 pointing
device.
Audio Ports
Use the three audio ports to connect audio devices. The
first jack is for stereo line-in singal. The second jack is
for stereo line-out singal. The third jack is for micro-
phone.
DVI (Optional)
VGA Port
Connect your monitor to the VGA port.
DVI Port (Optional)
Use the DVI port to connect the monitor.

ECS H61H2-A Specifications

General

Memory channels	Dual-channel
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Power fan connector	Yes
Number of SATA II connectors	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Component for	PC
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express x1 slots	3
LAN controller	Realtek RTL8111E
Networking features	Gigabti Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	3.0
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	195 mm
Width	305 mm
