Installing the Motherboard
Connecting Optional Devices

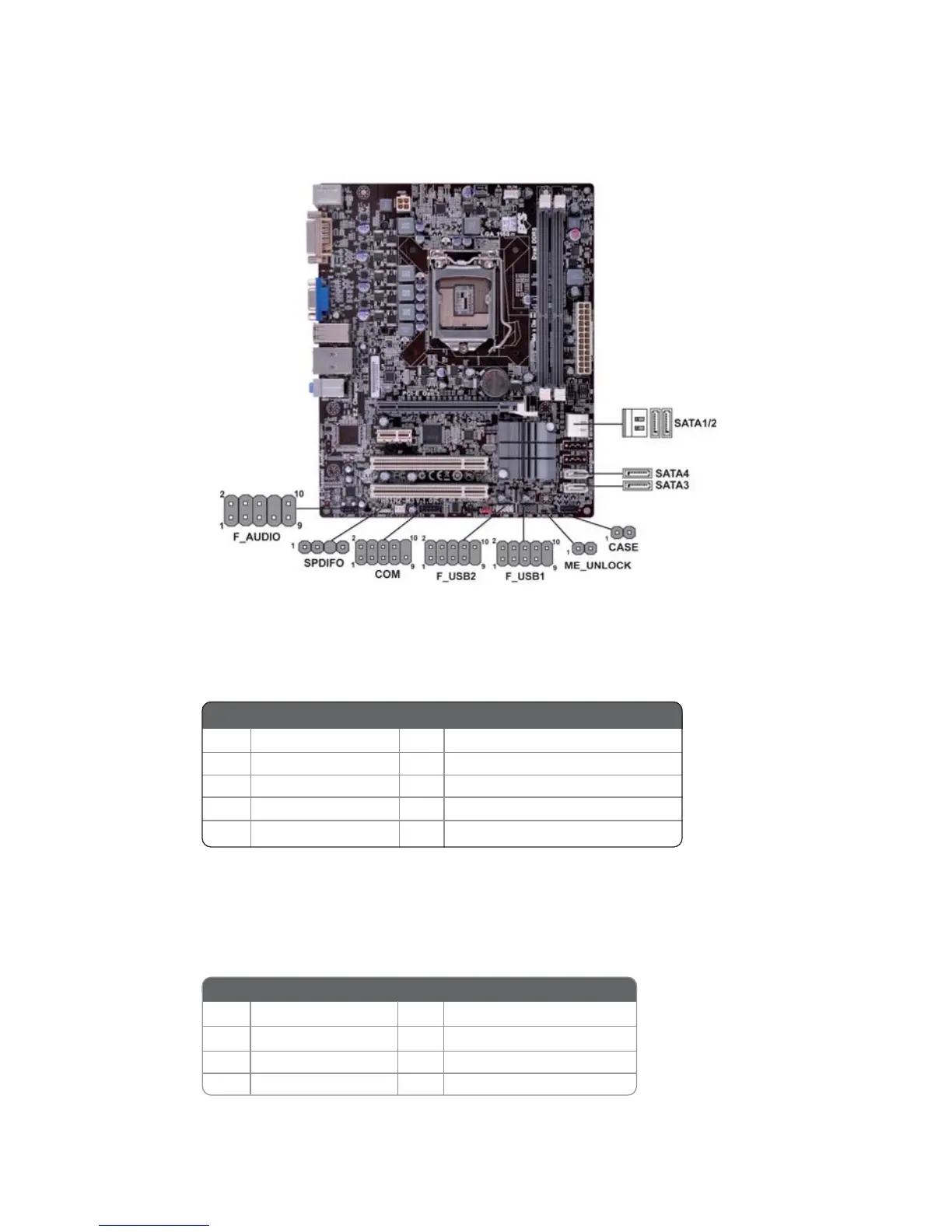

Refer to the following for information on connecting the motherboard’s optional
devices:
SATA1/2: Serial ATA connectors
These connectors are used to support the Serial ATA 3.0Gb/s device, simpler disk
drive cabling and easier PC assembly.
1 Ground 2 TX+
3 TX- 4 Ground
5 RX- 6 RX+
7 Ground - -
Pin Signal Name
Pin Signal Name
F_AUDIO: Front Panel Audio header
This header allows the user to install auxiliary front-oriented microphone and line-
out ports for easier access.
1 PORT 1L 2 AUD_GND
3 PORT 1R 4 PRESENCE#
5 PORT 2R 6 SENSE1_RETURN
7 SENSE_SEND 8 KEY
Pin Signal Name Pin Signal Name
9 PORT 2L 10 SENSE2_RETURN
