Chapter 2
22
H61H2-TI USER MANUAL
SA
T
A1~2 connector
s are used to support the Serial A
T
A 3Gb/
s device. Simpler disk
drive cabling and easier PC assembly
. It eliminates limita
tions of the current Par
al-
lel A
T
A interf
ace. But maintains r
egist
er compatibilit
y and software compatibilit
y
with Par
allel A
T
A
.

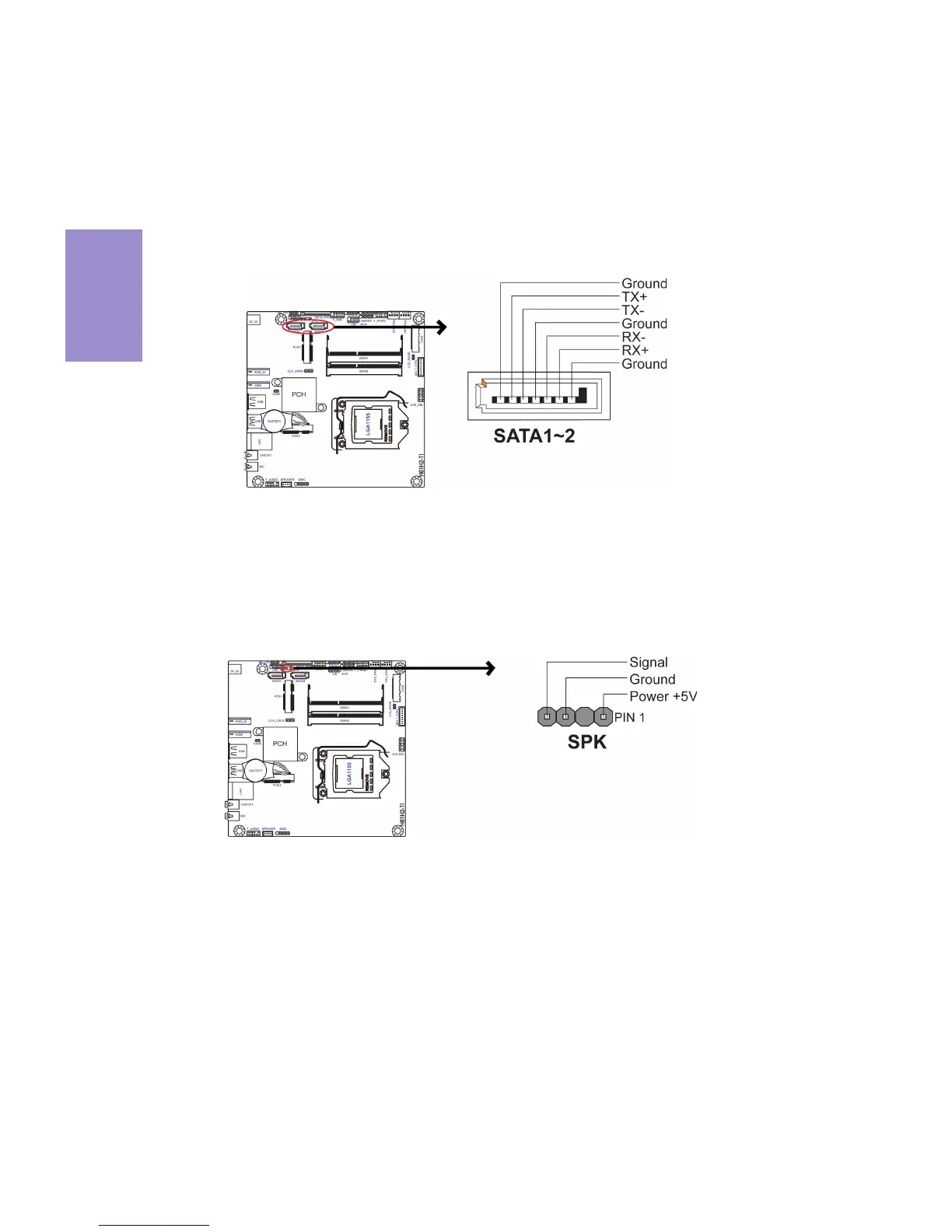

12. SA
T
A1~2: Serial A
T
A II connectors
13. SPK: Buzzer header
