AGP Slot The AGP slot is used to install a graphics adapter that supports the
4xAGP specifications and has a 4xAGP edge connector.
Note: The above layout is for reference only. The AGP slot
may be different from your mainboard. Please refer to
actual shipment.
PCI Slots PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
AMR Slot The AMR (Audio Modem Riser) slot is an industry standard slot that
allows for the installation of a special audio/modem riser card. Differ-
ent territories have different regulations regarding the specifications
of a modem card. You can purchase an AMR card that is approved in
your area and install it directly into the AMR slot.
Note: Before installing an add-on card, check the documentation for the card
carefully. If the card is not Plug and Play, you may have to manually con-
figure the card before installation.

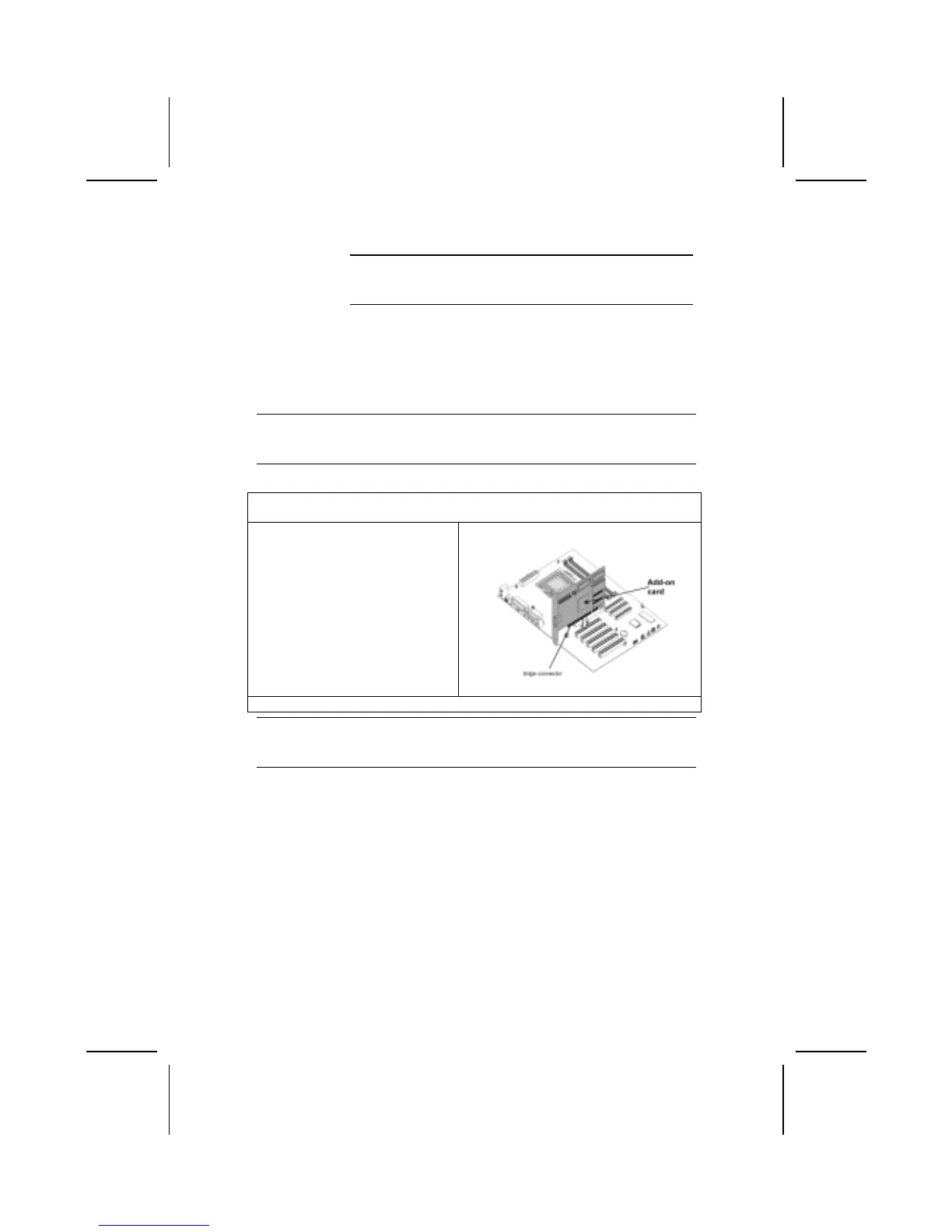

Follow these instructions to install an add-on card:
1. Remove a blanking plate from the system case corresponding to the slot you
are going to use.
2. Install the edge connector of the
add-on card into the expansion
slot. Ensure that the edge con-
nector is correctly seated in the
slot.
3. Secure the metal bracket of the card to the system case with a screw.
Note: For some add-on cards, for example graphics adapters and network adapters,
you have to install drivers and software before you can begin using the add-on
card.
16
