Chapter 2
14
NM70-M USER MANUAL

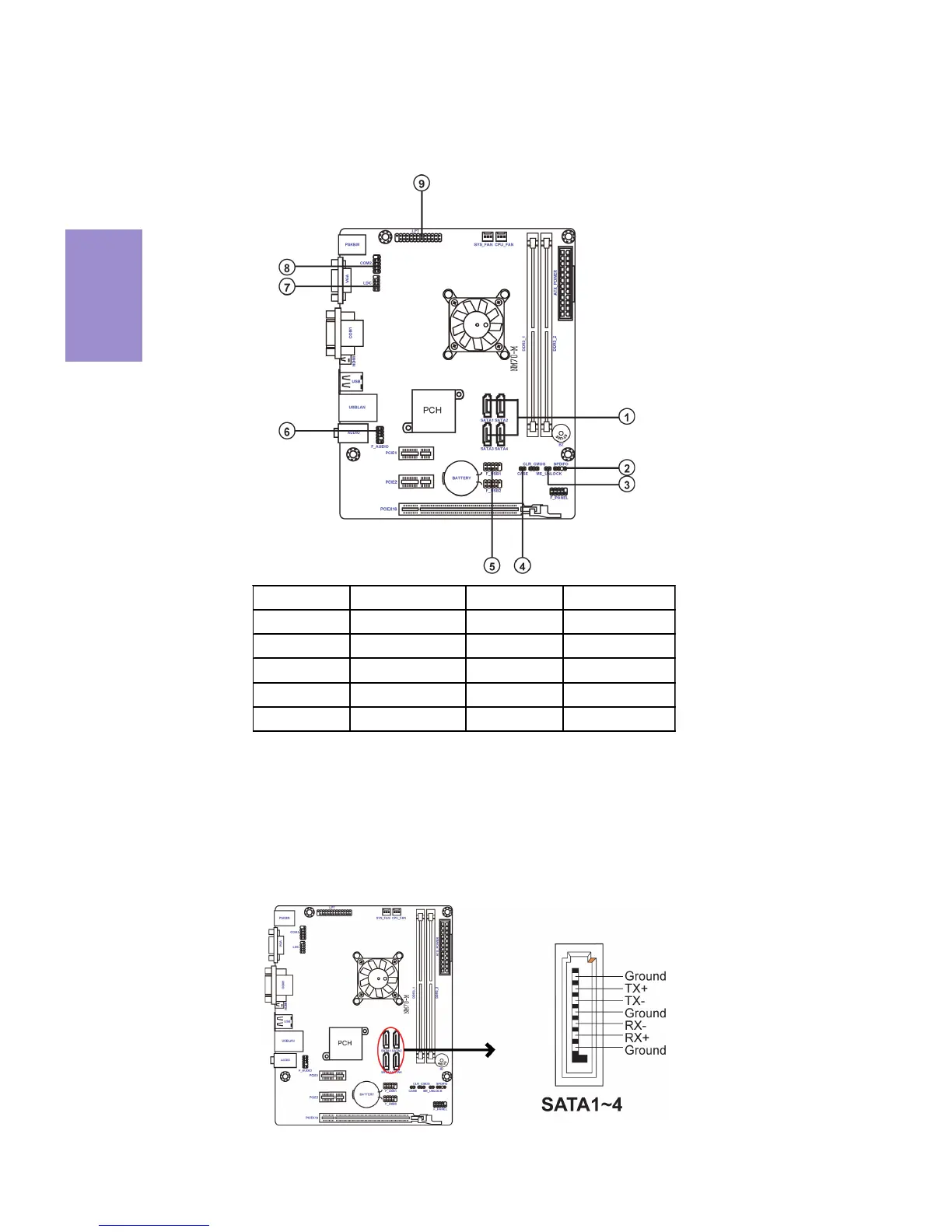

2-4-3. Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
No. Components No. Components
1 SATA1~4 6 F_AUDIO
2SPDIFO7 LDC
3ME_UNLOCK8 COM2
4CASE9LPT
5F_USB1~2
SATA 1 connector supports the Serial ATA 6Gb/s device, SATA2~4 connectors are used
to support the Serial ATA 3Gb/s device, simpler disk drive cabling and easier PC
assembly. It eliminates limitations of the current Parallel ATA interface. But
maintains register compatibility and software compatibility with Parallel ATA.
1. SATA1~4: Serial ATA Connectors
