NM70-M USER MANUAL

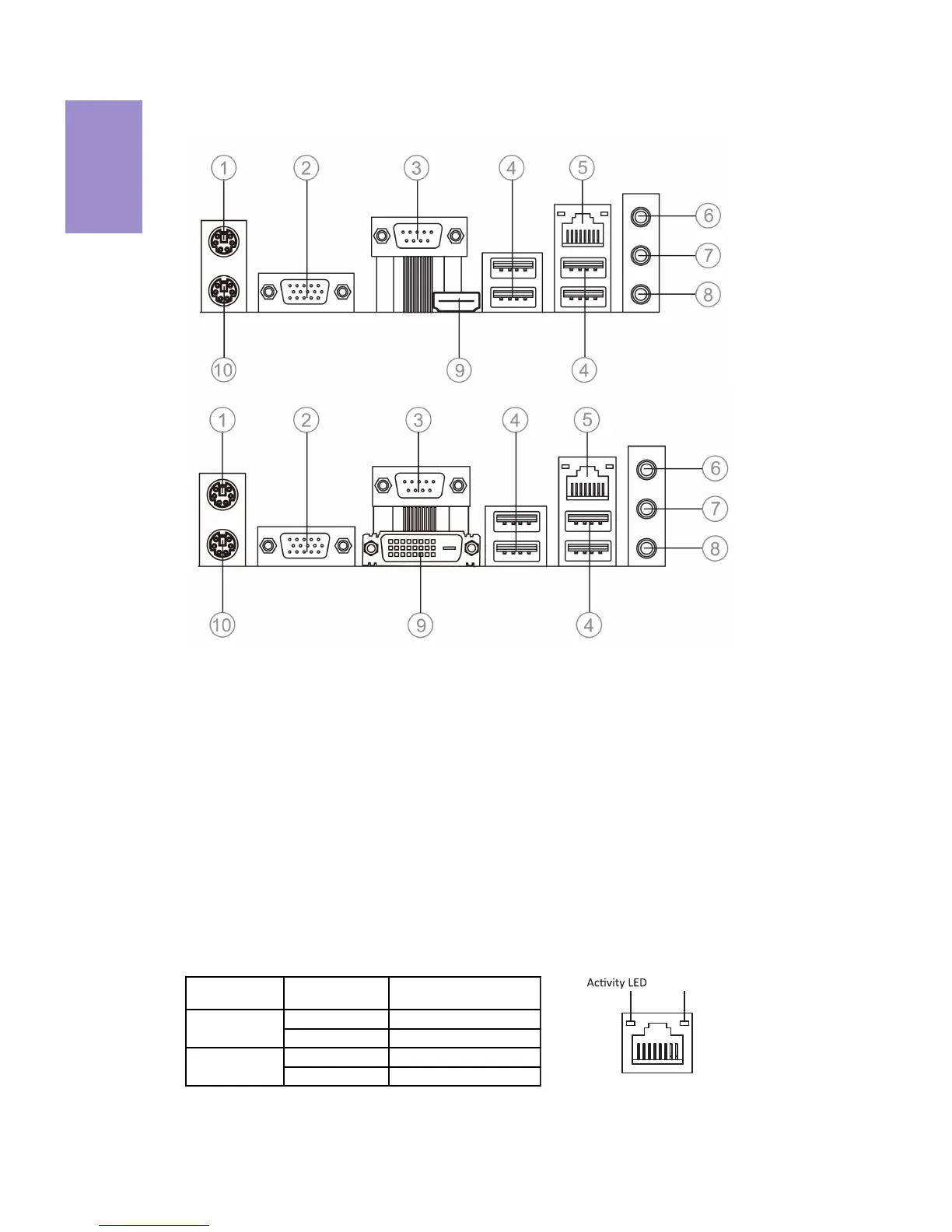

I/O Ports (Optional)
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. VGA Port
Connect your monitor to the VGA port.
3. COM1 Port (optional)
Use the COM1 port to connect serial devices such as mice or fax/modems.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
