Chapter 2
19
NM70-M USER MANUAL

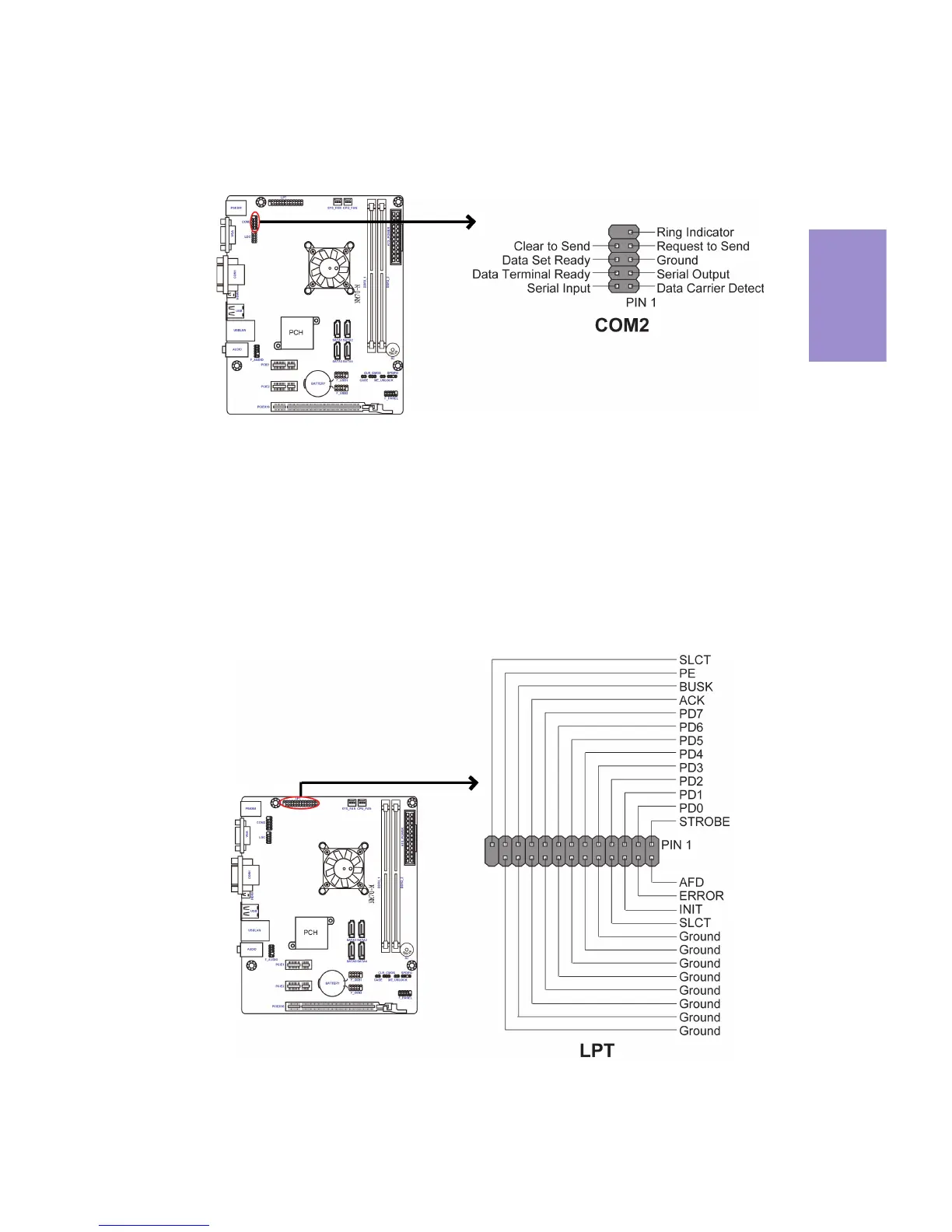

8. COM2: Onboard Serial Port Header
Connect a serial port extension bracket to this header to add a serial port to your
system.
9. LPT
: Onboard P
ar
allel Port Header
This header can be used to c
onnect to the printer
, scanner or other devices.
