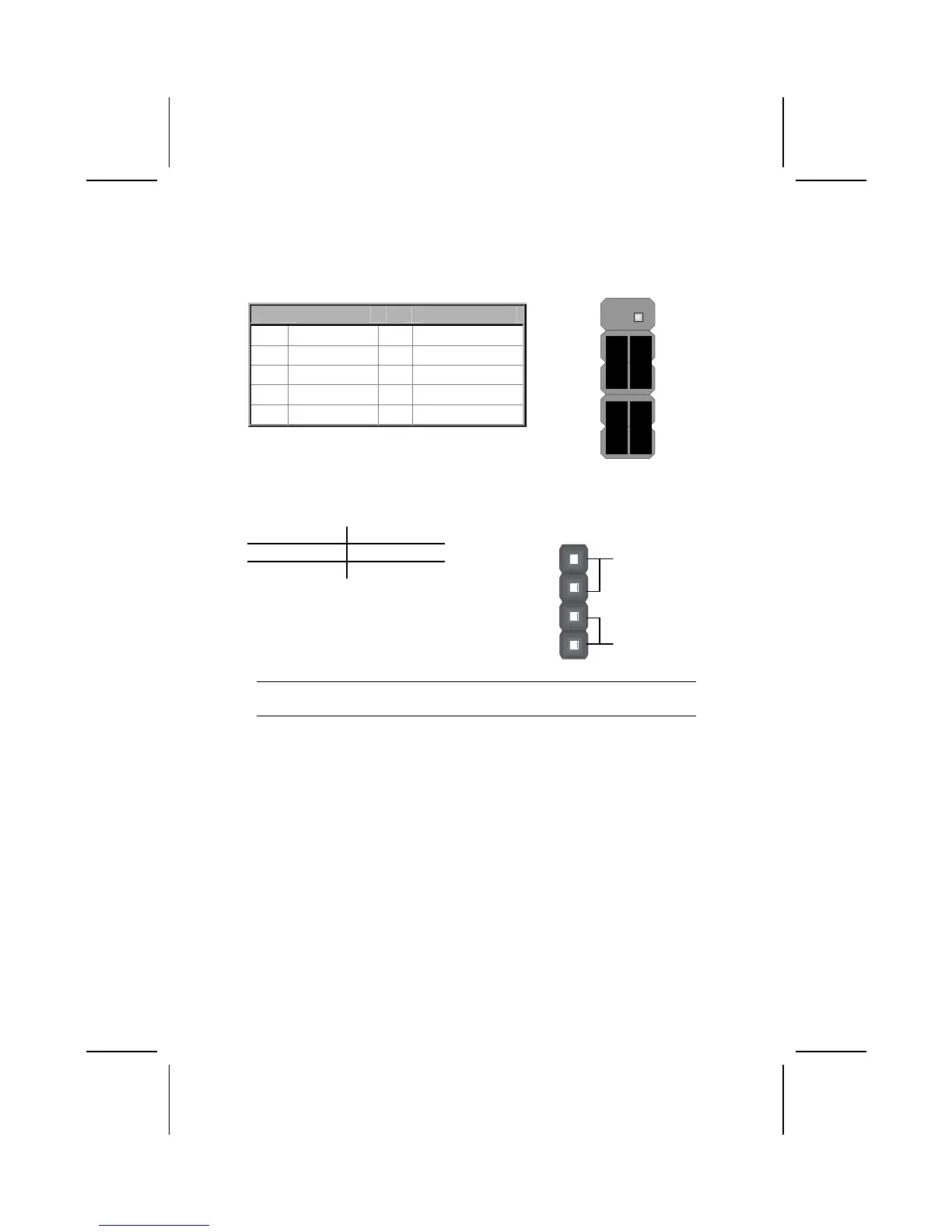

PANEL2
This panel connector provides a set of switch and LED connectors found on
ATX case. Refer to the table below for information.
Pin Signal Name Pin Signal Name
1 HDD 2 SPD-LED
3 HDD 4 SPD-LED
5 RESET 6 POWER ON/OFF
7 RESET 8 POWER ON/OFF
9 NC 10 EMPTY
HDD LED
(Pins 1, 3)
2 1
Reset Switc
h
(Pins 5, 7)
Power Switch
(Pins 6, 8)
SPD- LED
(Pins 2, 4)
Empty
(Pin 10)
10 9
N/C
(Pin 9)
J16: LAN LED Indicator
This connector is attached to LAN device that needs a LED indicator.
Device Pins
Link LED 1, +2
ACT LED +3, 4
LINK LED
ACT LED
1
+
+
4
Note: The plus sign (+) indicates a pin which must be connected to a positive
voltage.
11
