Eden C1P2FXBT - BIOVEIN Reader (RS485)

Technical manual C1P2FXBT – V1.7 p 10/28

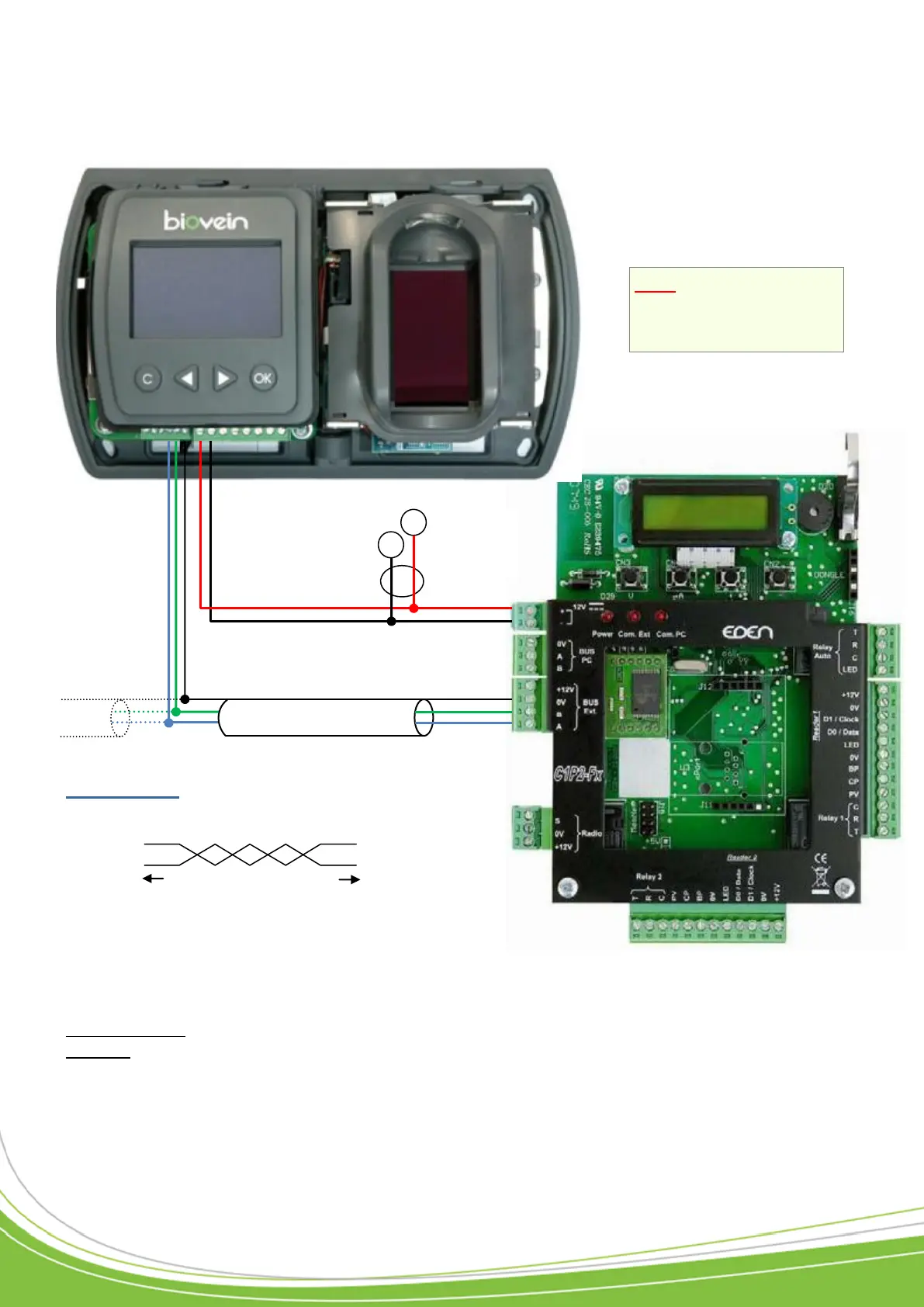

4) BIOVEIN Reader (RS485)
Data sheet:
Be sure to use the same pair for A and B
Be sure to separate the supply from the RS485 bus
Characteristic: Sensitive connection
Screen: Mandatory
To reach 1200 m (2730 ft), you must fit a 120 resistor between points A and B at each end of
the network (see above).
RS485
Note: You can connect
up to 2 BIOVEIN with a
C1P2FX
A
B
A
B
SYT recommended
1200m (2730 ft) Max
Ø 0.6 mm (1/30 in)
2 pairs recommended
-
+
12V DC
supply
