Chapter 5
| Port Connections
How to Connect to Twisted-Pair Copper Ports
– 38 –

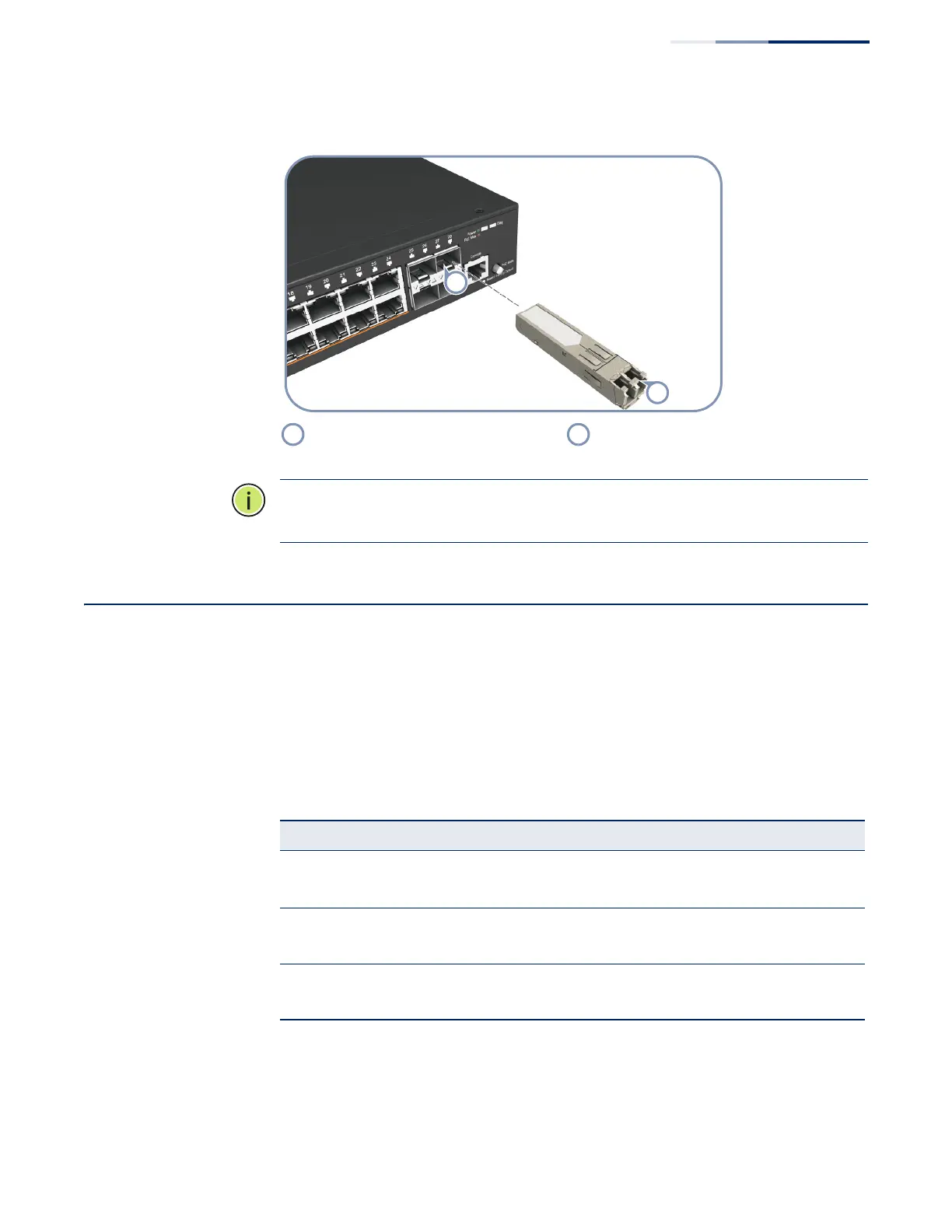

Figure 20: Inserting an SFP/SFP+ Transceiver into a Slot
Note:
To remove a transceiver: First disconnect the network cable, then pull the tab
to remove the transceiver from the slot.
How to Connect to Twisted-Pair Copper Ports
The RJ-45 ports on the switch support automatic MDI/MDI-X pinout configuration,
which enables you to use standard straight-through twisted-pair cables to connect
to any other network device (PCs, servers, switches, routers, or hubs).
The connection requires an unshielded twisted-pair (UTP) or shielded twisted-pair
(STP) cable with RJ-45 connectors at both ends.
SFP Transceiver SFP Slot
Table 4: Maximum Twisted-Pair Copper Cable Lengths
Cable Type Maximum Cable Length Connector
1000BASE-T
Category 5, 5e, or 6 100-ohm UTP or STP 100 m (328 ft) RJ-45
100BASE-TX
Category 5 or better 100-ohm UTP or STP 100 m (328 ft) RJ-45
10BASE-T
Category 3 or better 100-ohm UTP 100 m (328 ft) RJ-45
