Edge-Core ECS2100 Series User Manual

Quick Start Guide
– 7 –
Note: For International use, you may need to change the AC line cord. You must
use a line cord set that has been approved for the socket type in your country.

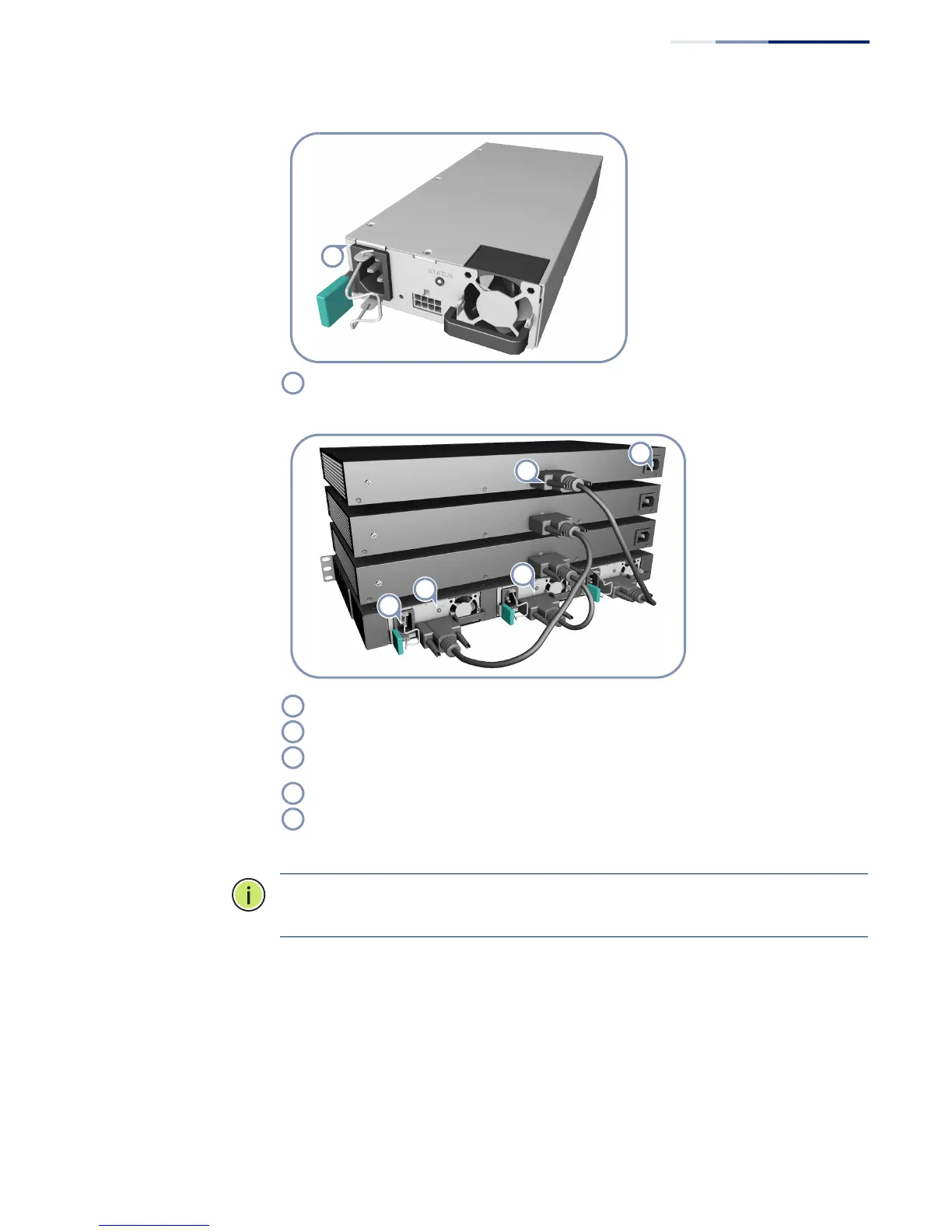

Extended Power Supply—EPS460W
Install the ECS2100-28PP in a standard 19-inch rack and power on.
Install the PS3000 chassis in a standard 19-inch rack.
Install one or more EPS460W PSUs in the chassis. The chassis can support up to three EPS460W
PSUs.
Use the PSU cable (provided) to connect each EPS460W PSU to an ECS2100-28PP switch.
Connect the AC power cord to power on the EPS460W PSU, and check the LEDs on the PSUs to
ensure proper operation. The Link LEDs for connected switches should light up.
1
1
2
4
5
1
3
1
2
3
4
5

Edge-Core ECS2100 Series Specifications

General

Model	ECS2100 Series
Layer	Layer 2
Power Consumption	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Type	Managed
Management	Web-based, CLI, SNMP
VLANs	Yes
Power Supply	Internal
Features	QoS, IGMP Snooping, STP/RSTP/MSTP
Jumbo Frame Support	Yes
Operating Temperature	0°C to 45°C (32°F to 113°F)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
Power over Ethernet	Available on some models (IEEE 802.3af/at)

Summary

Product Overview and Models

ECS2100 Series Models

Lists the ECS2100 series switches and their respective port configurations, including PoE capabilities.

Unpack the Switch

Package Contents

Details the items included in the switch package, such as the switch, rack mounting kit, cables, and documentation.

Optional Item

Mentions the console cable as an optional item for accessing additional documentation.

Install the Switch

Rack Mounting

Provides instructions for mounting the switch in a standard 19-inch rack, including securing it with brackets.

Wall Mounting

Details the procedure for wall mounting the ECS2100-10PE model, with a caution for port orientation.

Ground the Switch

Grounding Requirements

Explains the importance of proper grounding for the rack and switch, and the procedure for establishing an earth connection.

Connect Power

AC Power Connection

Lists AC input power requirements for various switch models and emphasizes grounding before connecting to AC power.

AC-DC Power Adapter

Details the AC-DC power adapter for the ECS2100-10PE, including its specifications and a grounding caution.

Verify Switch Operation

System Status LEDs

Describes how to verify basic switch operation by checking the status of system LEDs, specifically Diag and Power LEDs.

Make Initial Configuration Changes

Configure via RJ-45 Port

Instructions for web-based management connection, including default IP address, subnet mask, and login credentials.

Configure via Console Port

Details serial port configuration requirements and CLI login using default user and password.

Connect Network Cables

RJ-45 and SFP Connections

Guides on installing SFP transceivers and connecting network cables to port interfaces, specifying cable types.

Optional Extended Power Supply

ECS2100-28PP PoE Budget

Explains how to extend the PoE power budget for the ECS2100-28PP by using an optional Extended Power Supply.

Hardware Specifications

Chassis and Weight

Details the physical dimensions (size) and weight for various models in the ECS2100 series.

Temperature and Humidity

Specifies the operating and storage temperature ranges, and operating humidity limits for the switches.

Power Specifications

Lists AC input power, AC-DC adapter output, and total power consumption for each ECS2100 series model.

Regulatory Compliances

Outlines the safety, immunity, and emissions compliance standards met by the ECS2100 series switches.
