HAPTER

| Installing the Switch

Mounting

– 41 –

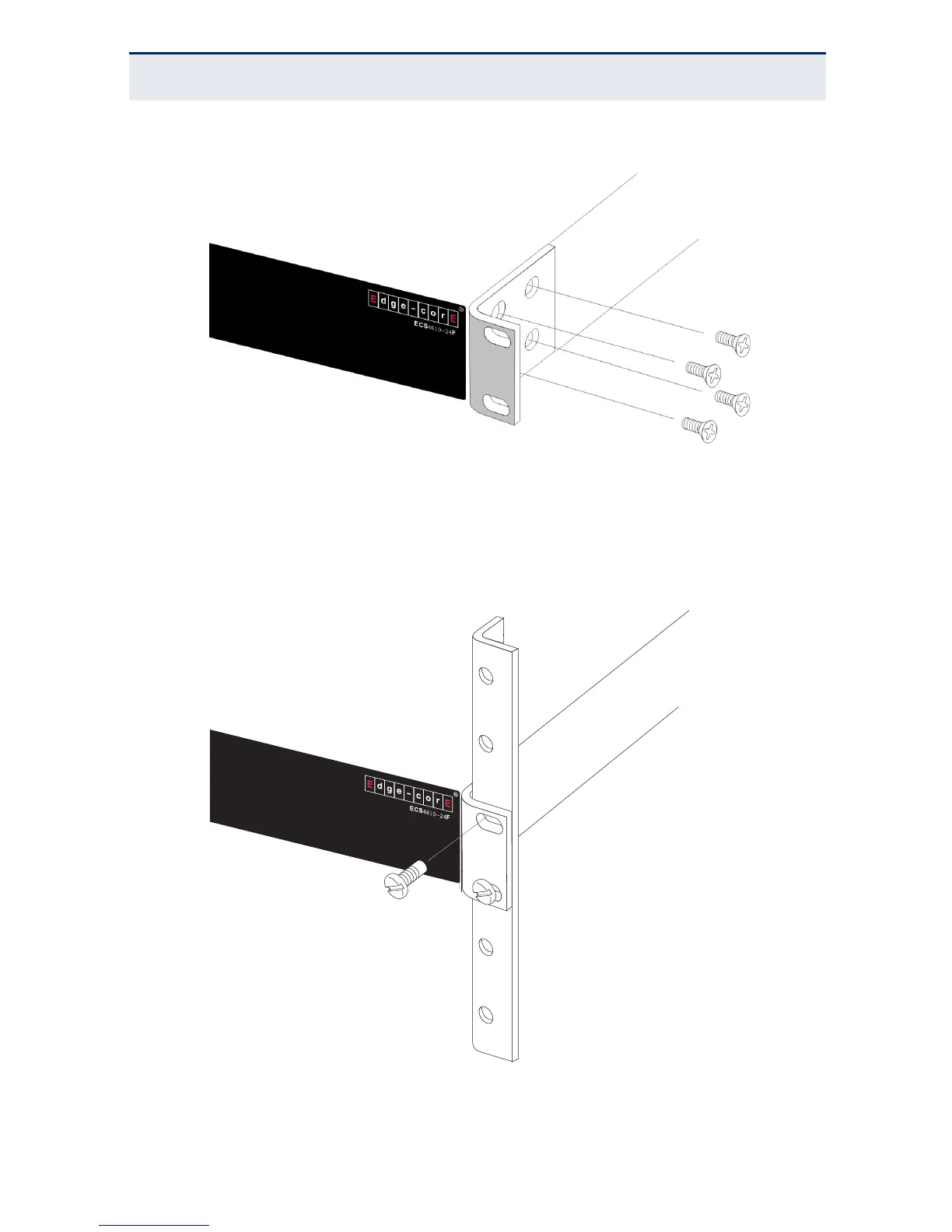

Figure 11: Attaching the Brackets

2. Mount the device in the rack, using four rack-mounting screws (not

provided). Be sure to secure the lower rack-mounting screws first to

prevent the brackets being bent by the weight of the switch.

Figure 12: Installing the Switch in a Rack
