Edge-Core ECS4610-24F Installation Guide

A PPENDIX B | Cables
Twisted-Pair Cable and Pin Assignments
– 61 –
Figure 20: Straight-through Wiring
CROSSOVER WIRING
If the twisted-pair cable is to join two ports and either both ports are labeled
with an “X” (MDI-X) or neither port is labeled with an “X” (MDI), a crossover
must be implemented in the wiring. (When auto-negotiation is enabled for any
RJ-45 port on this switch, you can use either straight-through or crossover cable
to connect to any device type.)
You must connect all four wire pairs as shown in the following diagram to
support Gigabit Ethernet.

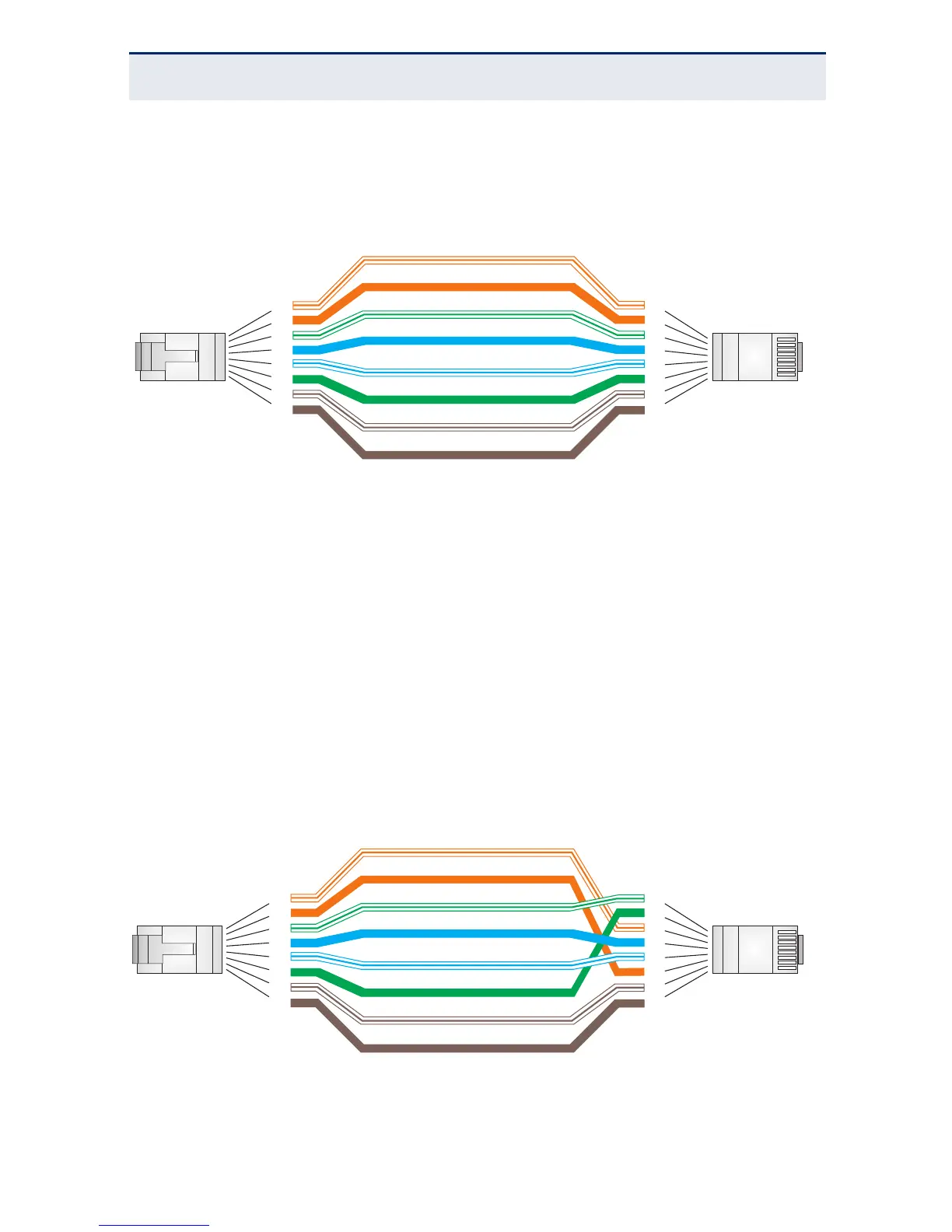

Figure 21: Crossover Wiring
White/Orange Stripe
Orange
White/Green Stripe
Green
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
End A
End B
Blue
White/Blue Stripe
Brown
White/Brown Stripe
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
End A
End B
Green
Blue
White/Blue Stripe
Brown
White/Brown Stripe
