Muer
Diesel Oxidation
Catalyst
Exhaust Manifold
Pre-Turbo
EGT
Pre-Cat
EGT
Pre-DPF/Post-Cat
EGT
Post-DPF
EGT
Diesel
Particulate
lter
Diesel Oxidation
Catalyst
Exhaust Manifold
Muer
Diesel
Particulate
lter
NOX Filter
Pre-Cat
EGT
Pre-DPF/Post-Cat
EGT
Post-DPF
EGT
Diesel Oxidation
Catalyst
Muer
Diesel
Particulate
lter
Pre-DPF/Post-Cat
EGT
Post-DPF
EGT
Ford 6.4
Powerstroke
GM LMM
Duramax
Dodge 6.7
Cummins

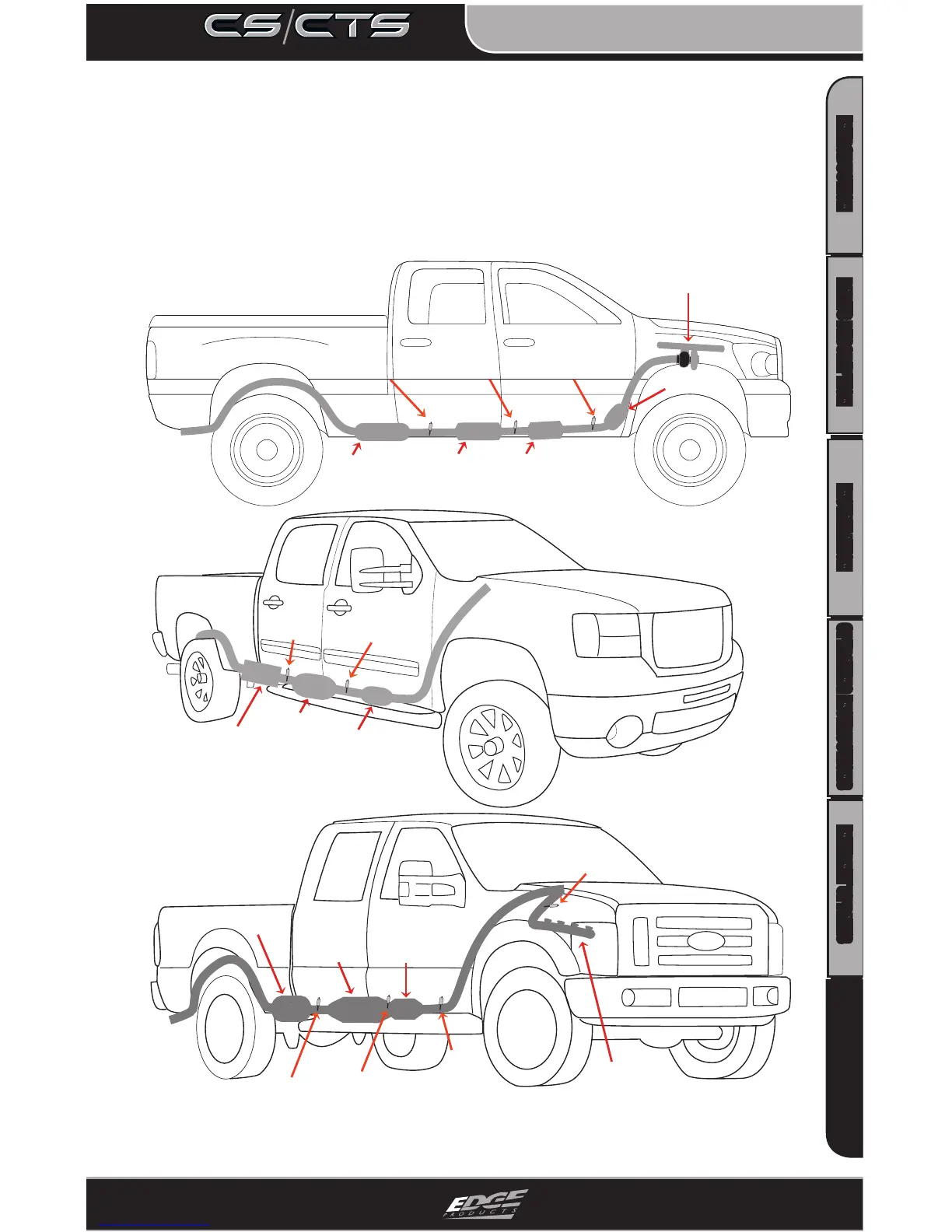

Modern Light-Duty diesel truck exhaust
illustrations
