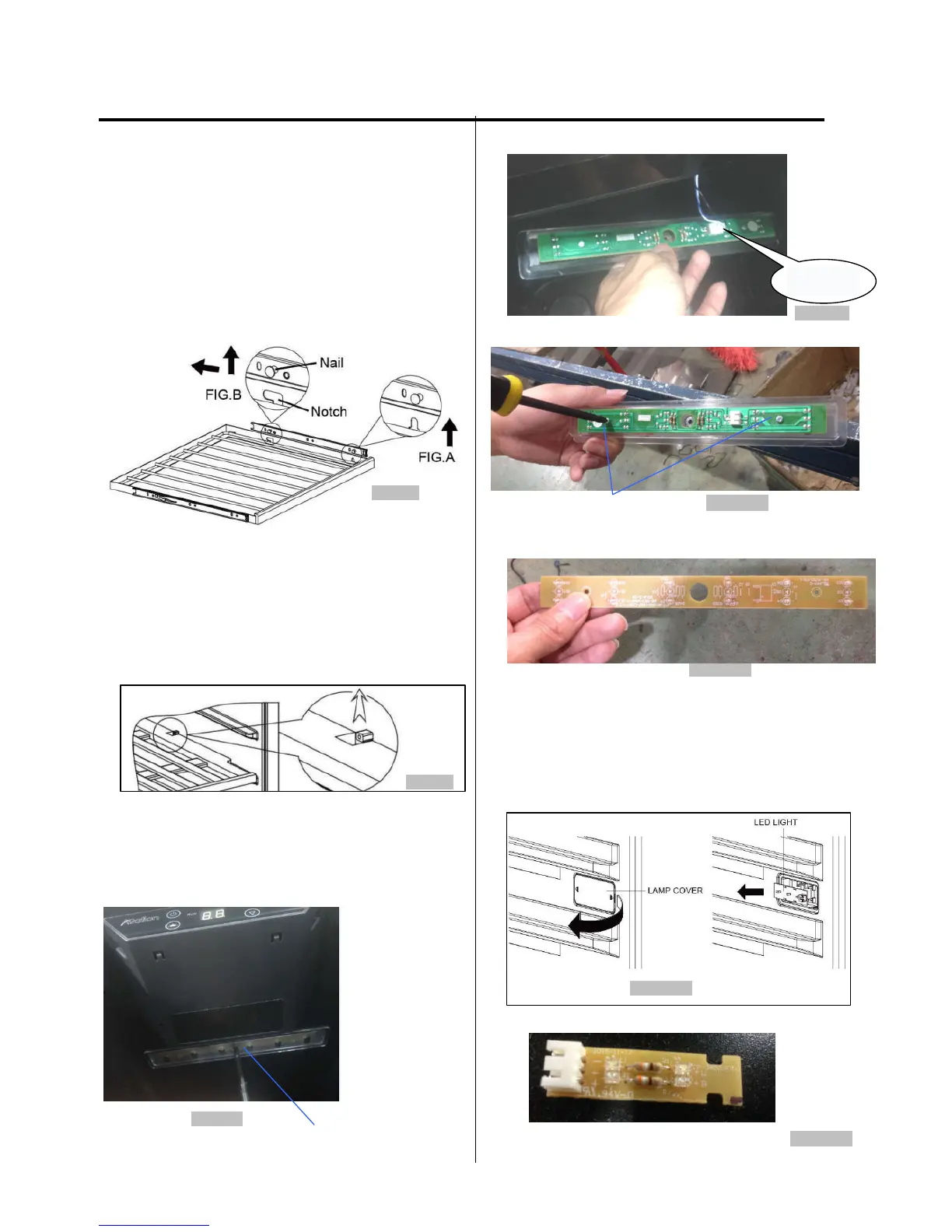

3. DISASSEMBLY
(Model：AWC241TSZ)
1. Open the door c
ompletely.
2. Remove all of the contents loaded on the shelf, if
applicable.
3. Line up the shelf notches with the rail posts as
indicated below. This will require you to hold on to both
rails as you
move the shelf to line up the posts with the notches on
both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.
(Figure 6)
Figure6
 Open the door completely.
 If necessary, make sure you remove all the contents sitting
on the shelf..
 Pull the shelf forward until the notch aligns with the plastic
post on each side of the shelf track.
 Lift the shelf until both notches pass through the posts.
Continue to pull the shelf forward until it is completely removed
from the inner compartment. (Figure 7)
Figure7
3-6 TOP LAMP
(Models：AFR151SSOD, AFR151SS, ABR151SG,
AWC151SZ, , ABR241SG, AWC241SZ, AFR241SS,
AFR241SSOD, AWC241TSZ, AWC241FD.)
1.
1 Loosen four screws. (figure 8)
Figure 8
screw
2. Unplug the led light connector. (figure 9)
Figure 9
3. Loosen four screws. (figure 10)
Screw
Figure 10
4.
Pull out the LED light. The LED light is like below.
(figure 11)
Figure 8
Figure 11
3-7 BROADSIDE LAMP
(Models：AFR151SSOD, AFR151SS, ABR151SG,
AWC151SZ, , ABR241SG, AWC241SZ, AFR241SS,
AFR241SSOD, AWC241TSZ, AWC241FD.)
1.
1Pull the lamp cover.
2.
Separate the claw attached to the LED light. Separate the
lead wire housing. (figure 12)
Figure 12
3. The LED light is pictured below. (figure 13)
Figure 13
connecto
r
