- 16 -
3. DISASSEMBLY
(Models：AFR151SSOD, AFR151SS, ABR151SG,
AWC151SZ

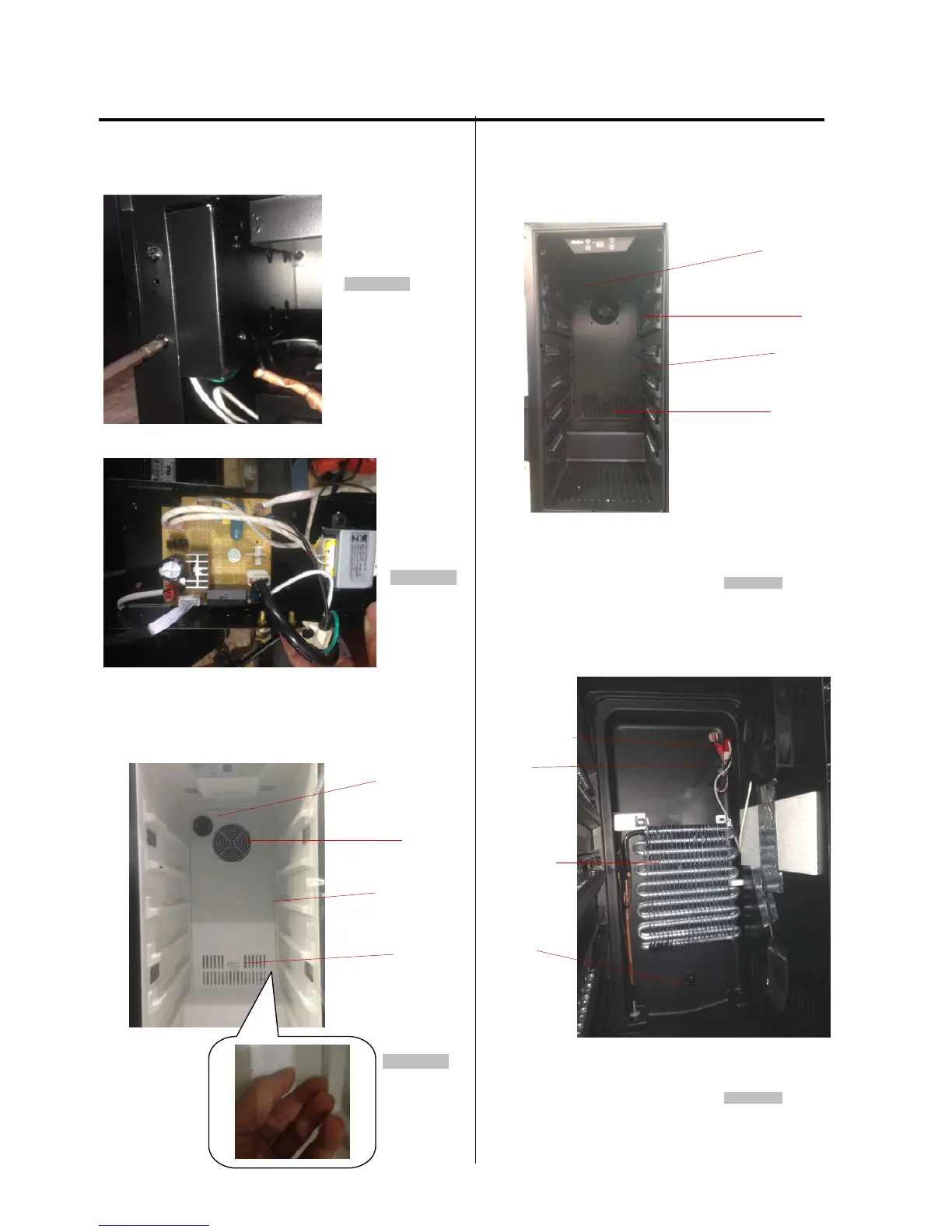

1． Loosen three screws. (figure 21)
Figure 21
2. The power board & transformer are like below.
(figure 22)
Figure 22
3-10 SENSOR & FAN
(Models：AFR151SSOD, AFR151SS,)
1. Remove the screws on both sides of air duct board.. Pull
out the air duct board cover. (figure 23)
Carbon Filter
fan
Screw
Sensor
Figure 23
Remove the cover
screws
(Models：,ABR151SG, AWC151SZ)
1.1 Loosen six screws. Pull out the rear air duct cover.
(figure 24)
Carbon Filter
fan
Screw
Sensor
Figure 24
2.
Loosen 1 screw. You can replace the sensor & fan.
(figure 25)
wire housing
screw
evaporator
defrost
sensor
Figure 43
Figure 25
To Next Page
