- 18 -

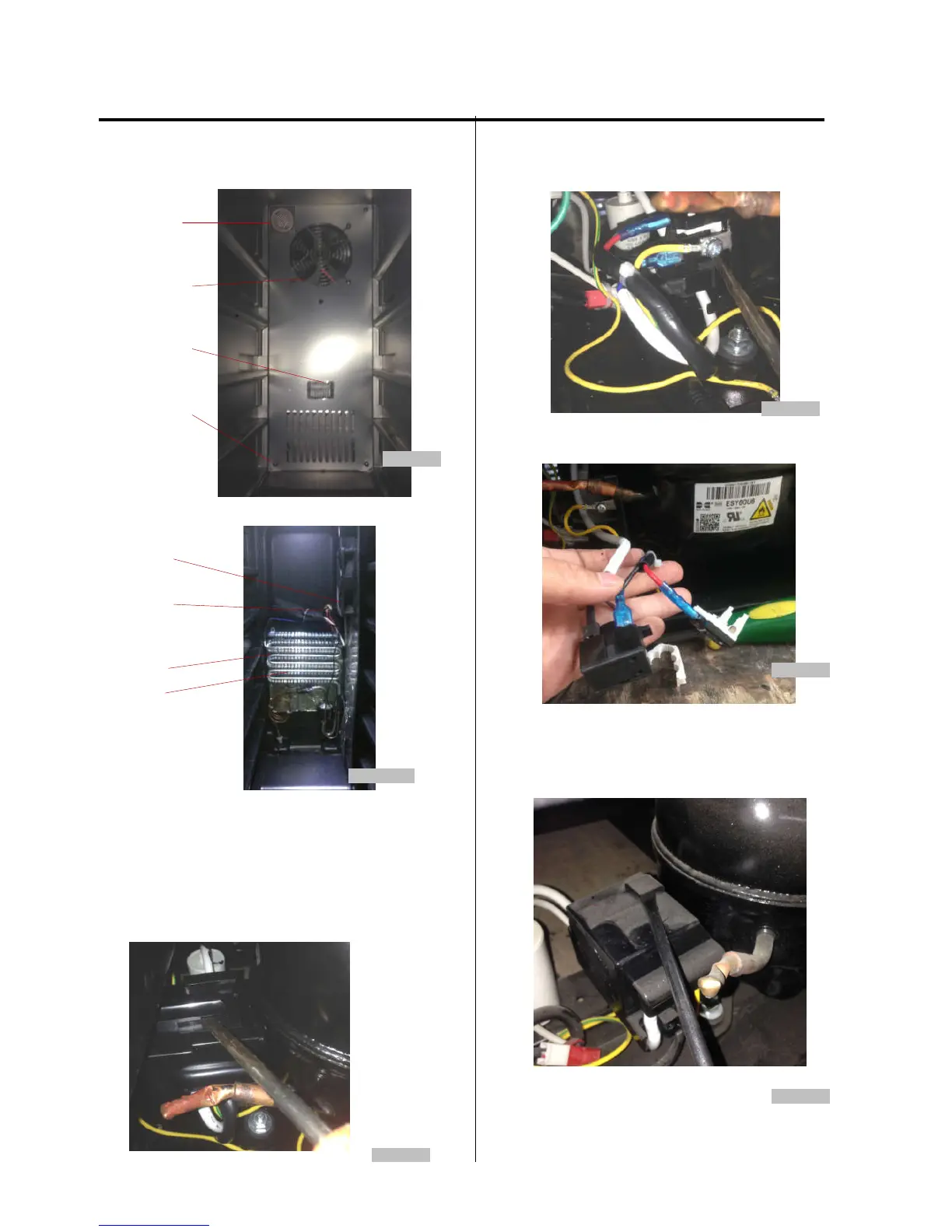

3. DISASSEMBLY
(Models：AWC241FD)
4、 Loosen screws. Pull out the rear air duct cover.
(figure 32)
Carbon Filter
fan
t
sensor
screw
Figure 32
5、
Loosen screw. You can replace the sensor & fan.
(figure 33)
wire housing
screw
Heater r
evaporator
Figure 33
3-11 COMPRESSOR PTC STARTER & OVERLOAD
PROTECTOR
(Models：AFR151SSOD, AFR151SS,ABR151SG,
AWC151SZ, ABR241SG, AWC241SZ，AFR241SS，
AFR241SSOD)
1. Open the box near compressor, the starter and overload
protector are located inside. (figure 34)
Figure 34
2. Dismantle the compressor PTC starter and overload
protector. (figure 35)
Figure 35
3. The compressor PTC starter and overload protector is like
below. (figure 36)
Figure 36
(Models：AWC241FD)
1、 Open the box near compressor, The starter and overload
protector are located inside. (figure 37)
Figure 37
