- 17 -

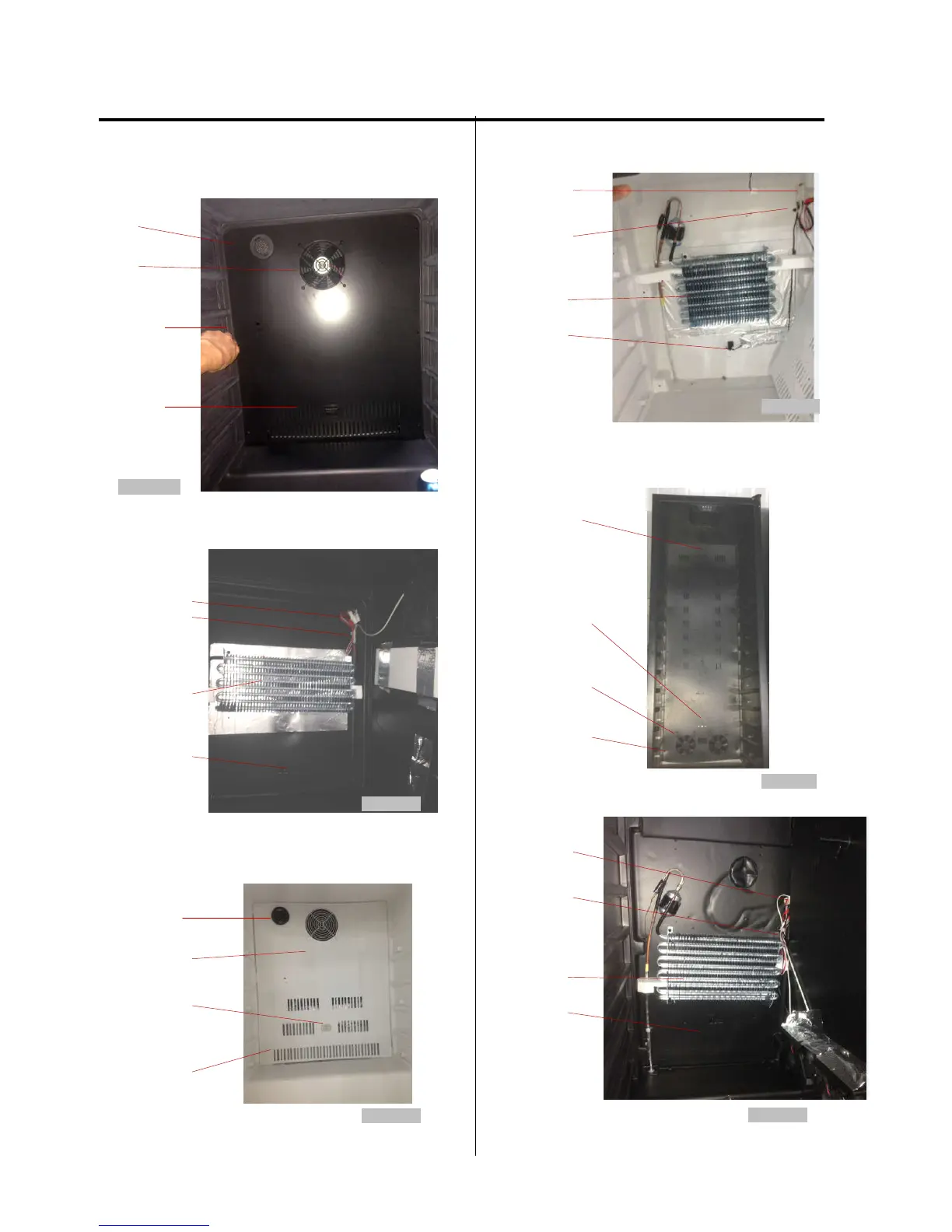

3. DISASSEMBLY
(Models： ABR241SG, AWC241SZ )
1. Loosen six screws. Pull out the rear air duct cover.
(figure 26)
Carbon Filter
Fan
Screw
cold catalyst
Figure 26
2.
Loosen 1 screw. You can replace the sensor & fan.
(figure 27)
wire housing
screw
evaporator
sensor
Figure 27
(Models：AFR241SS, AFR241SSOD)
1. Loosen screws. Pull out the rear air duct cover.
(figure 28)
Carbon Filter
fan
t
sensor
screw
Figure 28
2.
Loosen 1 screw to replace the sensor & fan.
(figure 29)
wire housing
screw
evaporator
defrost
sensor
Figure 29
(Models：AWC241TSZ)
1、 Loosen screws. Pull out the rear air duct cover.
(figure 30)
Carbon Filter
sensor
fan
screw
Figure30
2、
Loosen 1 screw to replace the sensor & fan.
3、
(figure 31)
wire housing
screw
evaporator
defrost
sensor
Figure 31
