3. DISASSEMBLY

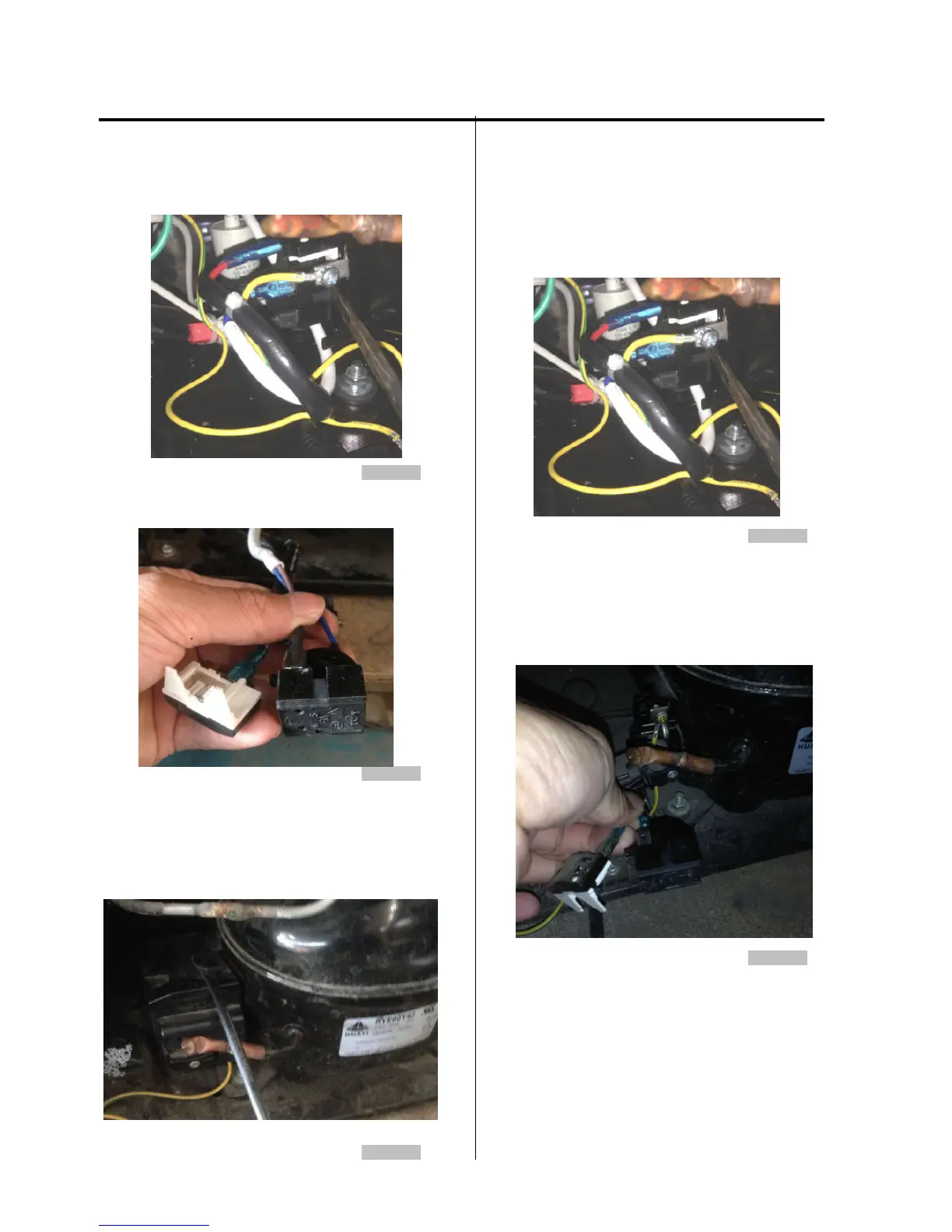

2、 Dismantle the compressor PTC starter and overload
protector. (figure 38)
Figure 38
3. The compressor PTC starter and overload protector is
pictured below. (figure 39)
Figure 39
(Models：AWC241TSZ)
1、Open the box near compressor. The starter and overload
protector are located inside. (figure 40)
Figure 40
2、 Remove the compressor junction box. (figure 41)
Figure 41
3、 The compressor PTC starter and overload protector is
pictured below. (figure 42)
Figure 54
Figure 42
