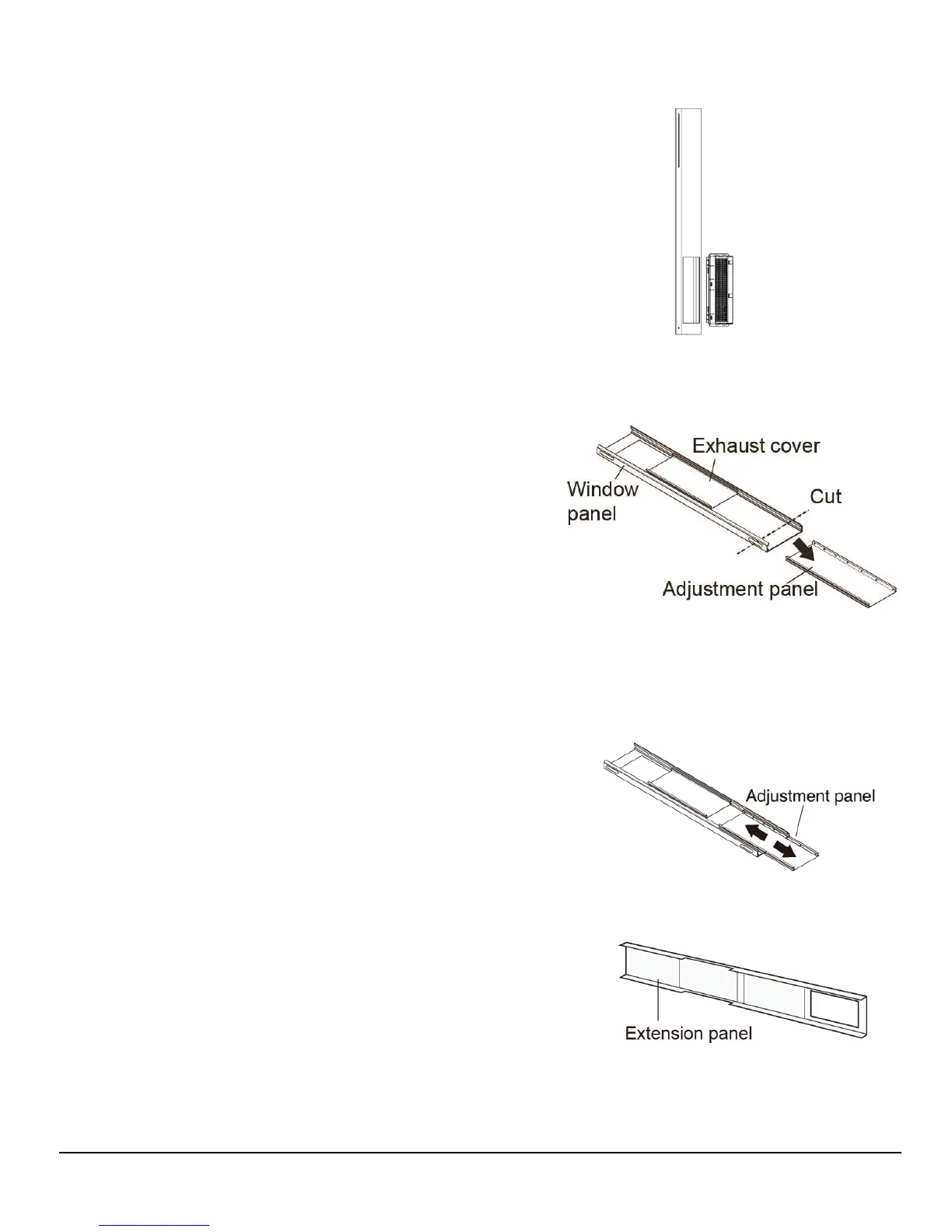

Attach Grille
Attach the protective grille (baffle) to the
window panel. Push the grille firmly to
ensure that its four raised tabs are
attached firmly into the window panel.
Assemble Window Panel
To assemble with window panel, start by
measuring the width of the window opening
where the window panel will be installed.
If the inner width of the window is
between 22” and 24” tall:
o Remove the adjustment panel
from the window panel, and cut
the window panel to the same
height as the window opening.
NOTE: The window panel cannot be installed in
windows less than 22” tall as you will be unable to
shut the exhaust cover
If the inner width of the window is
between 24” and 36” tall:
o Slide the adjustment panel to fit
the window frame height.
If the inner width of the window is
between 36” and 64” tall:
o Attach the extension panel to the
window panel.
o Slide the adjustment panel to fit
the window frame height.
