EdgeStar AP13500HG User Manual

15

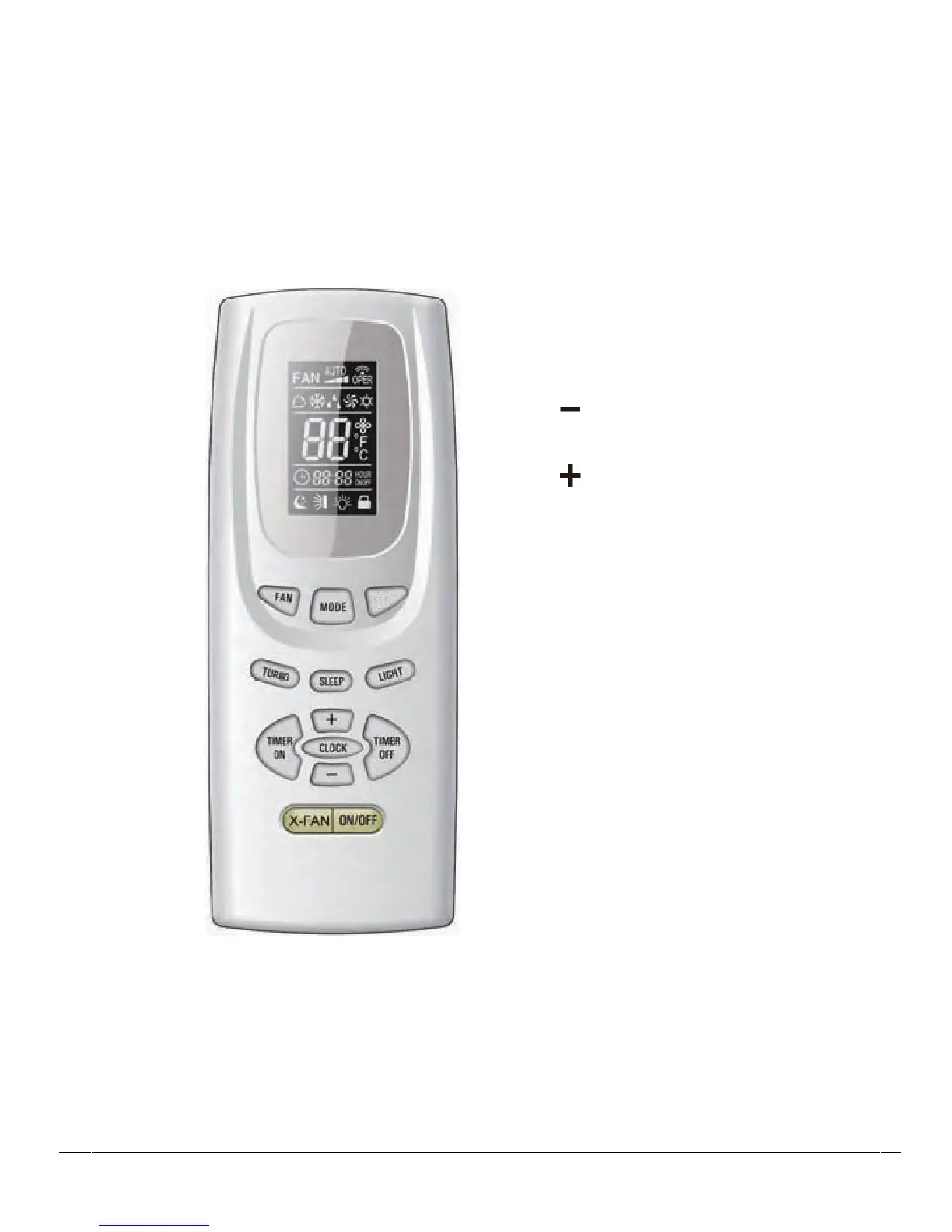

Remote Control Overview
The remote control is used to operate all of your portable air
conditioner’s functions. Use the remote control to change modes,
fan speed, timer, and temperature settings.
NOTE: Be careful to not drop the remote control. Do not place the remote
control in a location exposed to direct sunlight.
Replacing the
batteries
ON/OFF
Powers the unit on or off
MODE
Changes between modes: COOL 
DRY  FAN  (HEAT)
Decreases the temperature and timer
setting
Increases the temperature and timer
setting
FAN
Adjusts fan speed
X-FAN
Used to enable X-Fan mode
TEMP
Used to display the temperature
setting or current temperature
TIMER ON / TIMER OFF
Turn the Timer Mode on/off
TURBO
Turn the Turbo mode on / off
SLEEP
Used to enable Sleep mode
LIGHT
Turn the light on/off
To replace the batteries:
 Slide to remove the battery cover plate on the rear of the remote control.
 Remove and properly dispose of old batteries.
 Insert 2 new AAA 1.5 batteries.
 Reinstall the battery cover plate.
CAUTION: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month
or longer. Do not attempt to recharge batteries not designed to be recharged. All batteries should be replaced
at the same time. Do not mix old and new batteries. Do not dispose of batteries in a fire as they may explode.

EdgeStar AP13500HG Specifications

General

Cooling Capacity	13, 500 BTU
Power Supply	115V/60Hz
Energy Efficiency Ratio (EER)	10.8
Noise Level	53 dB
Weight	75 lbs
Dimensions	15.5 x 19 x 34.5 inches
Coverage Area	Up to 550 sq. ft.
Fan Speeds	3
Refrigerant	R-410A
Vent Hose Length	5 feet
Voltage	115V
Amperage	11.5A
Operating Frequency	60 Hz
Cooling Amps	11.5A
