EdgeStar AP13500HG User Manual

EdgeStar Portable Air Conditioner 10

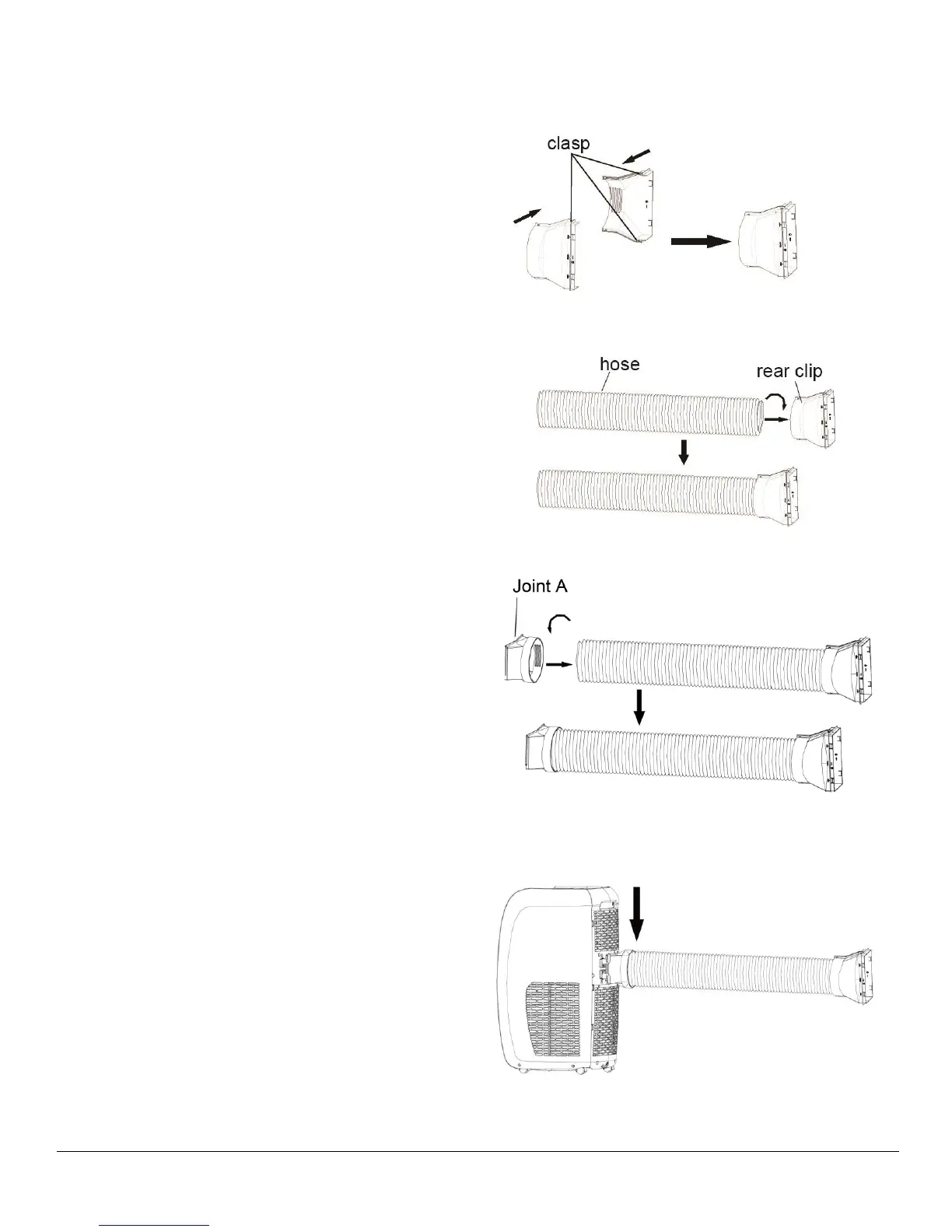

Installation of the Exhaust Hose
Assemble Window Exhaust
Adapter
 Connect the two pieces of the
Window Exhaust Adapter.
 Press each side together and
firmly snap the clasps into the
corresponding slots.
1
Attach Exhaust Hose to
Window Exhaust Adapter
 Press the round end of the
Window Exhaust Adapter
against the end of the Exhaust
Hose.
 Rotate the hose
counterclockwise into round
end of Window Exhaust
Adapter until firmly attached.
2
Attach “Joint A” Adapter to
Exhaust Hose
 Press the round end of Joint A
against the open end of the
Exhaust Hose.
 Rotate the hose
counterclockwise into Joint A.
3
Attach Hose Assembly to Unit
 Align the cutout tabs on the
open end of Joint A with the
two tabs located on the air
exhaust outlet on the back of
the unit.
 Press downward until the tabs
click securely in place.
 To remove, press each of the
locking tabs and lift upward.
4
