EdgeStar AP13500HG - Draining the Unit; Installation of Drain Hose

9

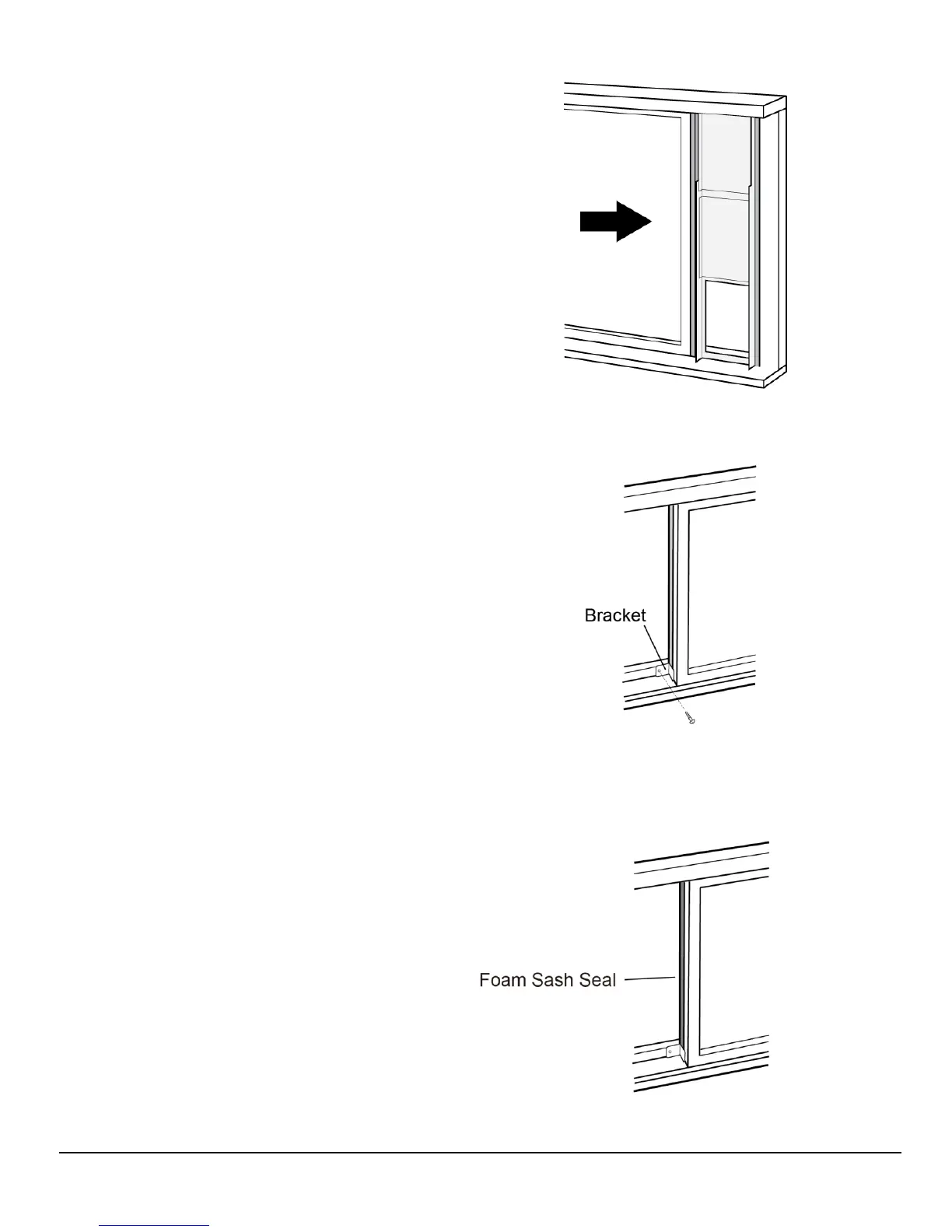

Close Window Sash
 Slide the window sash firmly
against the window panel.
5
Attach Window Lock Bracket
Ensure window sash is closed
firmly against Window Panel.
 Ensure window sash is closed
firmly against Window Panel.
 Place Window Lock Bracket as
shown in image.
 Attach with screw.
 Place Window Lock Bracket as
shown in image.
 Attach with screw.
6
Install Sash Seal
 Cut the foam seal to an
appropriate length.
 Insert between the top of the
inner window and outer
window to create a proper
seal.
Note: The sash seal is thicker than the
window panel seal and does not include
an adhesive backing.

7
